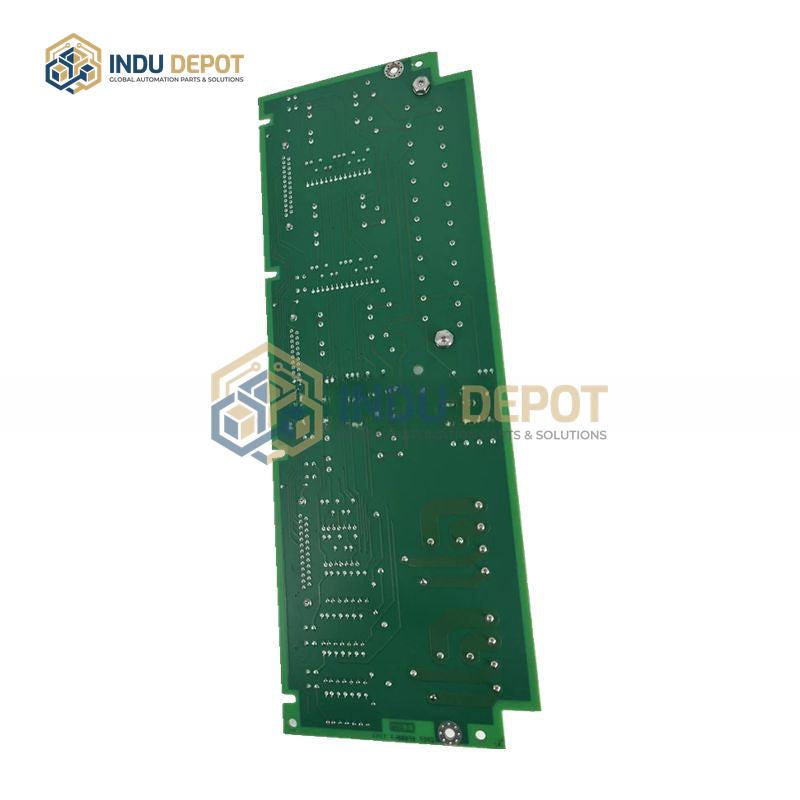

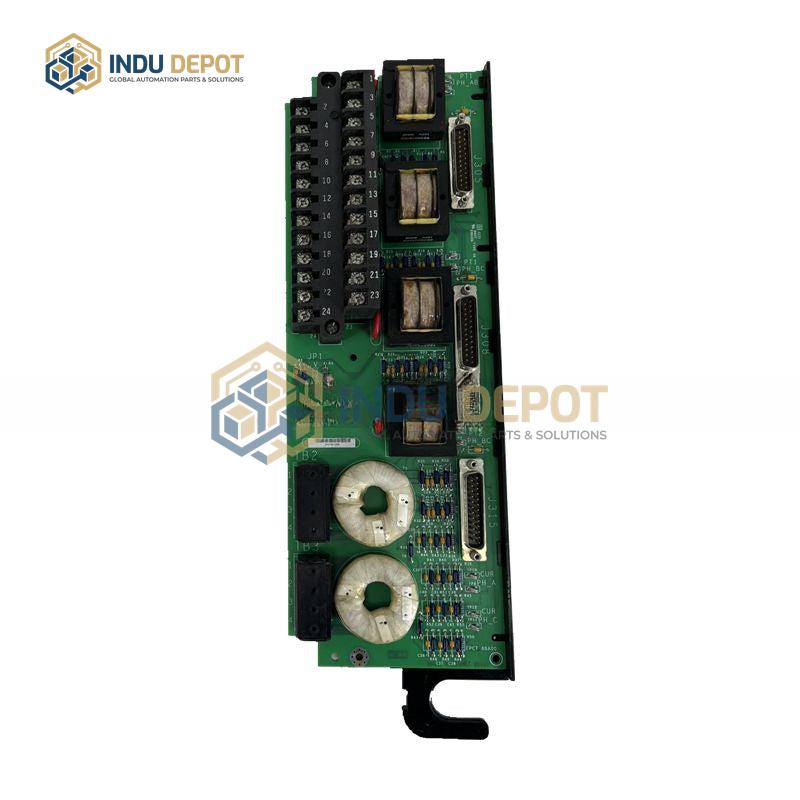

GE IS200EPCTG1AAA Industrial Excitation Control Board
Description
GE IS200EPCTG1AAA Industrial Excitation Control Board is an input/output terminal board belonging to the GE EX2100 excitation control series, designed to isolate current measurement transformers and critical generator voltage signals while acting as a signal regulator for scaling and isolating feedback from generator current transformers (CT) and potential transformers (PT).
| Specification | Value |
|---|---|
| PT/CT Input Load | Less than 1 VA |
| PT Voltage Input | Two three-phase generators |
| CT Current Input Range | 1 A to 5 A from two generators |
| Analog Input Range | 0-10 V or 4-20 mA |
| Maximum Wire Gauge for CT/EPCT Connections | #10 AWG |
| Maximum Cable Length for CT/EPCT Connections | 1000 feet |
Key Features:
- Isolates current measurement transformers and generator voltage signals
- Acts as a signal regulator to scale and isolate CT and PT feedback signals
- Supports connections to two separate generators for PT and CT inputs
- Compatible with standard industrial wiring specifications for long-distance installations
Applications:
- Power system excitation control in power plants
- Generator voltage and current monitoring and regulation systems
Related Models:
- IS200ECTBG1A
- IS200EPCTG1A
- IS200ECTBG1ACB
