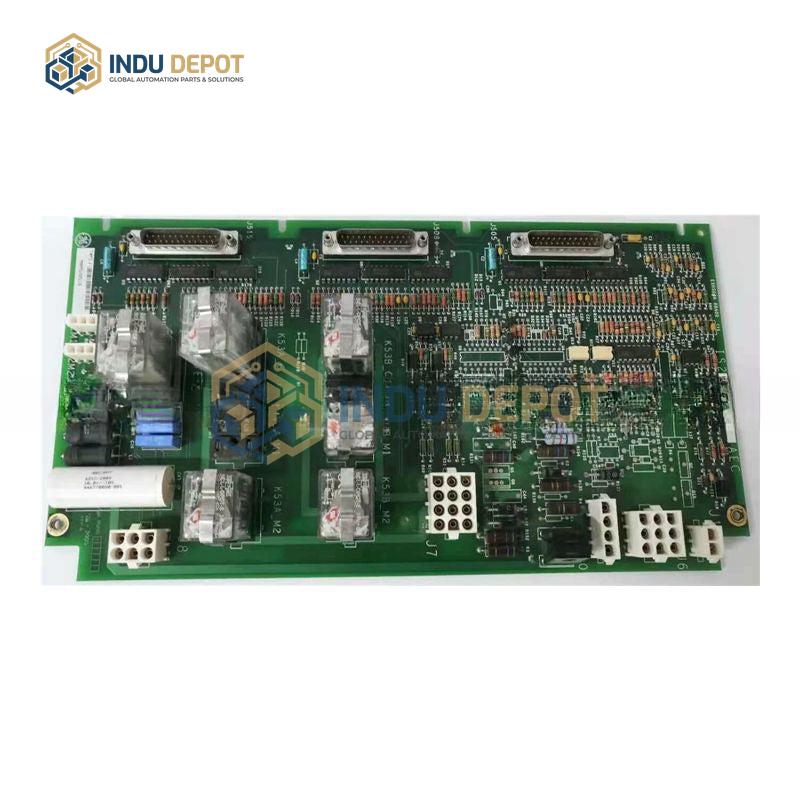

GE IS200EXHSG3AEC High-Speed Relay Driver Board for Excitation Control
Description
GE IS200EXHSG3AEC High-Speed Relay Driver Board is a printed circuit board (PCB) component belonging to the GE EX2100 excitation control series, serving as a high-speed terminal board for static exciters in the EX2100 system. It acts as a critical interface to control relay operations and support excitation system functionality for various generator types.
| Specification | Value |
|---|---|
| Input Voltage | 110V – 380V |
| Operating Current | 1A – 30A |
| Power Range | 5W – 130W |
| Connectors | 3 D-type vertical pin connectors, 8 multi-size plug connectors |
| Integrated Components | Solid-state relay driver, heat sink assembly, 7 relays, integrated circuits, transistors, capacitors, metal film and carbon composite resistors |
Key Features:
- High-speed relay control for precise, fast-response excitation circuit management
- Built-in monitoring and protection mechanisms to detect abnormal circuit parameters and trigger safeguards
- Equipped with communication interfaces (such as USB-B, RS422) for data exchange and remote monitoring
- Modular PCB design for easy maintenance and system integration
- Pre-installed factory jumpers for initial voltage testing
- Deep integration with the EX2100 static excitation system for seamless parameter configuration and fault information interaction
Applications:
- Excitation control for steam turbine, gas turbine, and hydroelectric generators in power plants
- Industrial automation systems in oil and gas, petrochemical, metallurgy, and mining sectors
- Static excitation control systems for new and retrofitted generator installations
Related Models:
- IS200EXHSG3AEA
- IS200EXHSG3A
- IS200EXHSG2A
- IS200EXHSG1A
