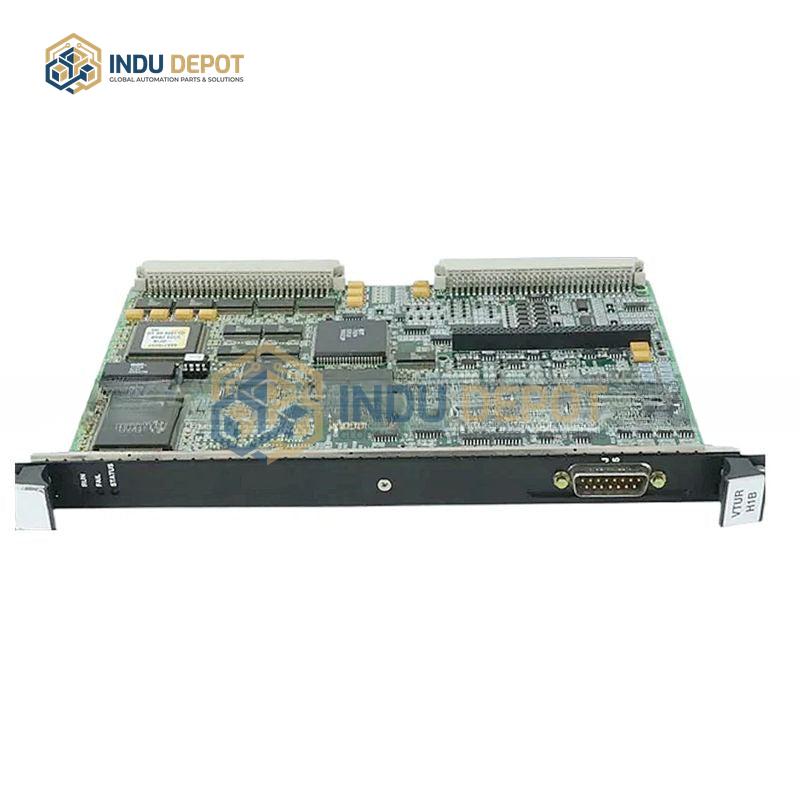

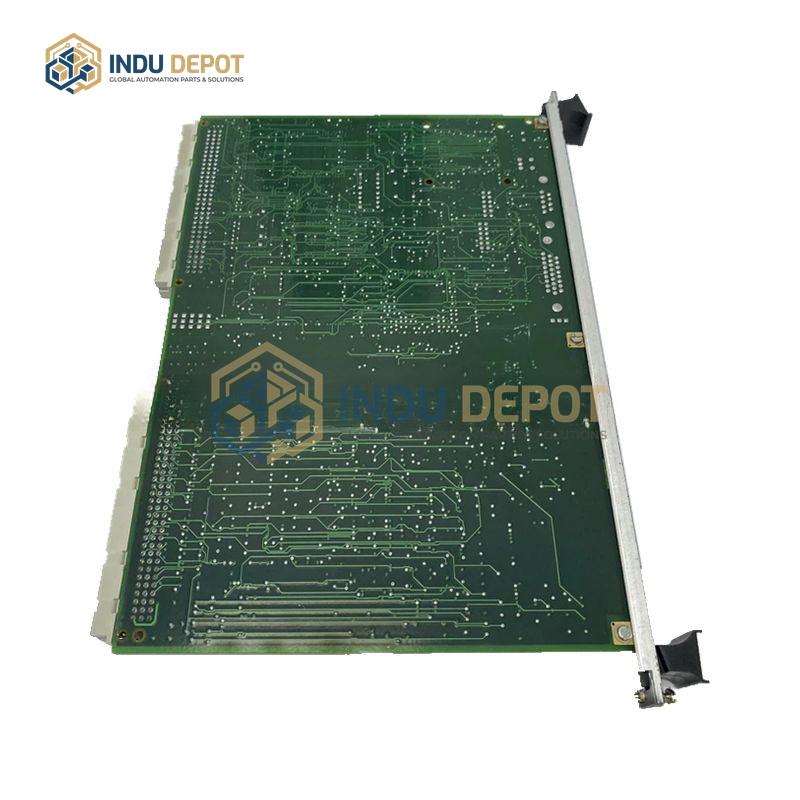

GE IS200VTURH1BAB Primary Turbine Control PCB
Description
GE IS200VTURH1BAB Primary Turbine Control PCB is a printed circuit board designed for primary turbine control operations, part of GE’s industrial turbine control product lineup. No direct technical details for this model are available, so below is detailed information on related GE turbine and excitation control boards from the same product family, along with their specifications, features, and applications.
| Specification | IS200AEADH4ADA | IS200EACFG2A | IS200AEPAH1AHD |
|---|---|---|---|
| Product Type | Exciter Auxiliary Interface Board | AC Feedback Board | Exciter Power Amplifier Board |
| System Platform/Series | Mark VIe | EX2100 | Mark VI/VIe |
| Power Supply | 24VDC/system supplied | Not specified | 24 Vdc ±20%, up to 10 A |
| Operating Temperature | -10 to 55 degrees Celsius | Industrial environment range | -30 to 70 degrees Celsius |
| Key Function | Manage exciter I/O signals, signal isolation, communication | Measure exciter PPT AC voltage and current | Regulate 4-Q DC output for generator field, convert DAC codes to excitation current |
Key Features (Related Models):
- High industrial-grade reliability for continuous turbine operation
- Seamless integration with GE Mark VI/VIe and EX2100 control platforms
- Built-in protection including signal isolation, short circuit, overload, and thermal rollback
- Modular plug-in design for easy field replacement and maintenance
- Precise signal measurement, processing, and communication capabilities
Applications:
- Gas turbine and steam turbine control systems
- Generator excitation system monitoring and regulation
- Power plant and substation energy infrastructure
- Industrial facilities requiring turbine-based power generation
Related Models:
- IS200AEADH4ADA
- IS200EACFG2A
- IS200AEPAH1AHD
- IS200EACFG1A
- IS200EACFG1B
