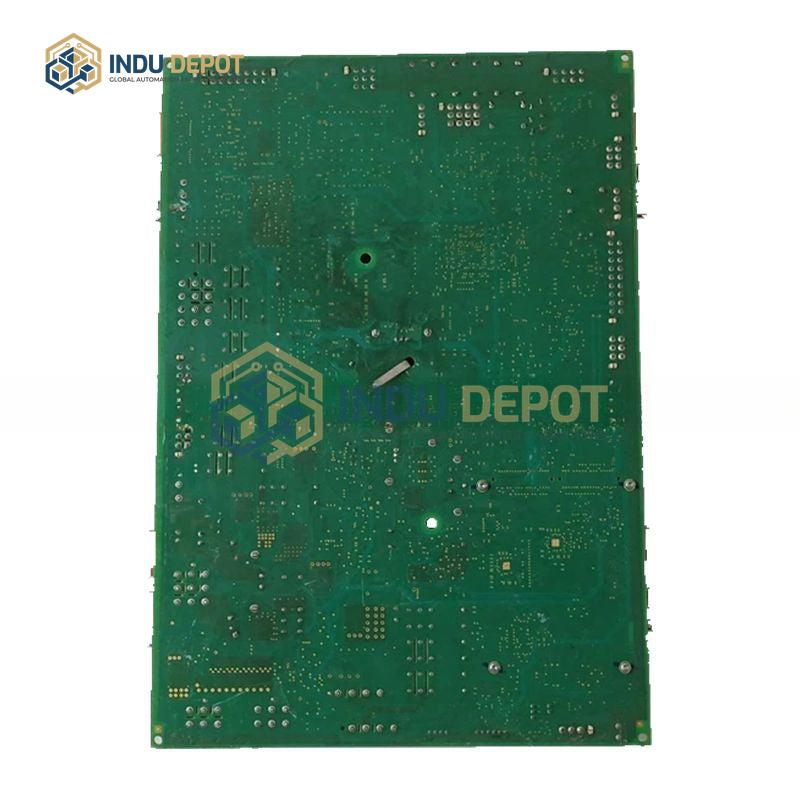

GE IS210BPPCH1AD(IS215WEPAH2BA) High-Quality PCB Circuit Board Card
Description
GE IS210BPPCH1AD RST Analog I/O PCB Circuit Board Card is an RST analog I/O board manufactured by General Electric, part of the Mark V series designed for gas turbine control systems.
| Specification | Value |
|---|---|
| Part Number | IS210BPPCH1AD |
| Manufacturer | General Electric |
| Product Type | Analog I/O Board |
| Series | Mark V |
| Primary Connector for STCA Board | 3PL Connector |
| Primary Connector for TCQC Board | JE Connector |
Key Features:
- Scales and conditions a wide range of analog signals including LVDT input, servo valve output, thermocouple input, 4-20 mA input and output, vibration input, relay driver output, pulse input, voltage input, and generator and line signals
- Transfers selected signals to the STCA board via 3PL connector
- Exchanges generator and line signals with the TCQC board through JE connector
- Processes specific 4-20 mA input signals such as compressor stall detection and fuel flow pressure signals
Applications:
- Gas turbine control systems
- Industrial power generation control systems
Related Models:
- IS210BPPBH2CAA
- IS210BPPCH1ACA
- IS215WEPAH2BA
