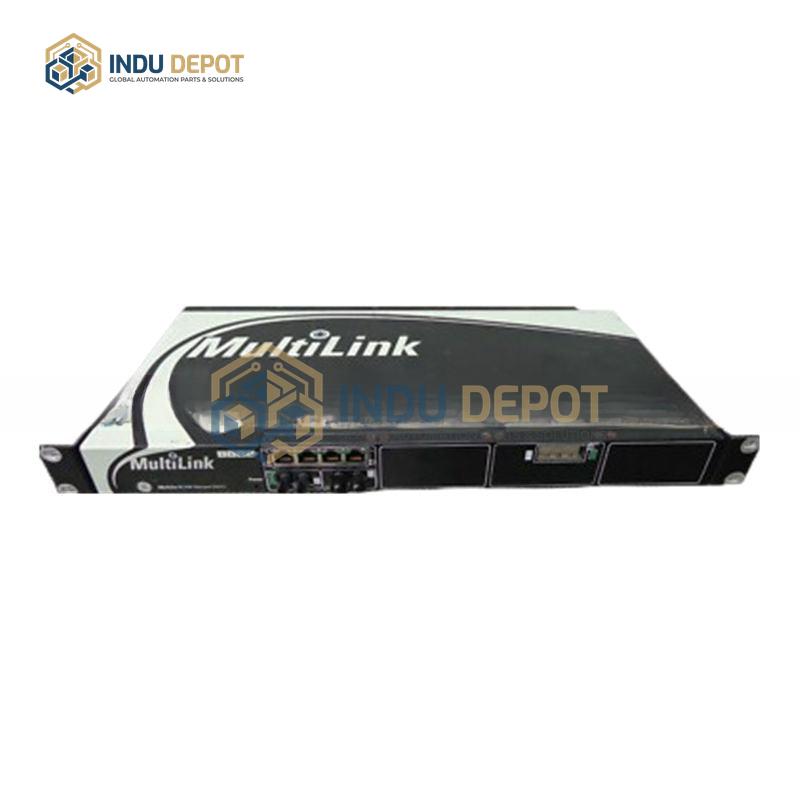

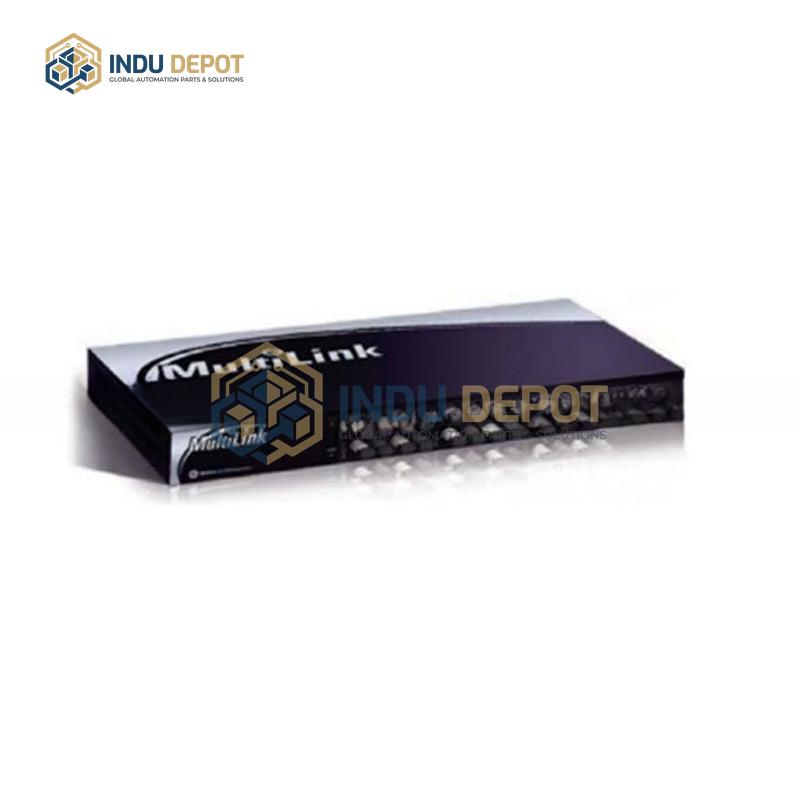

GE ML2400-F-AC-XX-A4-AC-XX-XX-X Managed Switch MultiLink Industrial Ethernet
Description
GE ML2400-F-AC-XX-A4-AC-XX-XX-X Managed MultiLink Industrial Ethernet Switch is a modular, layer 3 non-blocking 10-gigabit industrial Ethernet switch based on high-performance ASIC chip technology, designed for robust network connectivity in industrial environments.
| Specification | Value |
|---|---|
| Backplane Bandwidth | 198Gbps |
| Packet Forwarding Rate | 147.31Mpps |
| Processor | RISC 600MHz |
| Flash Memory | 8MB |
| Memory Capacity | 64MB, 512MB |
| Address Table Size | 32K |
| Queue Buffer | 64MB |
Key Features:
- Modular design with configurable port combinations, including 24 1Gb ports, 6 shared 1Gb ports, and 2 expandable 10Gb ports
- Supports full IPv4/IPv6 routing, including tunnels and IP multicast, plus dynamic routing protocols like RIP v1/v2, OSPFv2, BGPv4
- Advanced security features: DOS defense, IEEE 802.1x port authentication, L2-L4 ACL filtering, QinQ support, and port security
- Multiple management options: Web interface, SNMP, TFTP/ZMODEM software upgrades, and cluster management for centralized control
- Redundant power support, fast failover, and storm suppression for high system reliability
- QoS support with 8 port queues mapped to 802.1p priorities, and ECMP route load balancing
Applications:
- Large network aggregation layers
- Core networks for small to mid-sized industrial systems
- Security monitoring and surveillance networks
- Metro network core deployments
Related Models:
- L3 24+6+2 10Gigabit Fiber Managed Switch (24 1Gb fiber, 6 shared 1Gb copper, 2 10Gb ports)
- L3 24+6+2 10Gigabit Managed Switch (24 1Gb copper, 6 shared 1Gb fiber, 2 10Gb ports)
- XHIES-552424M Industrial Managed Ethernet Switch (24 1Gb copper, rail-mounted)
