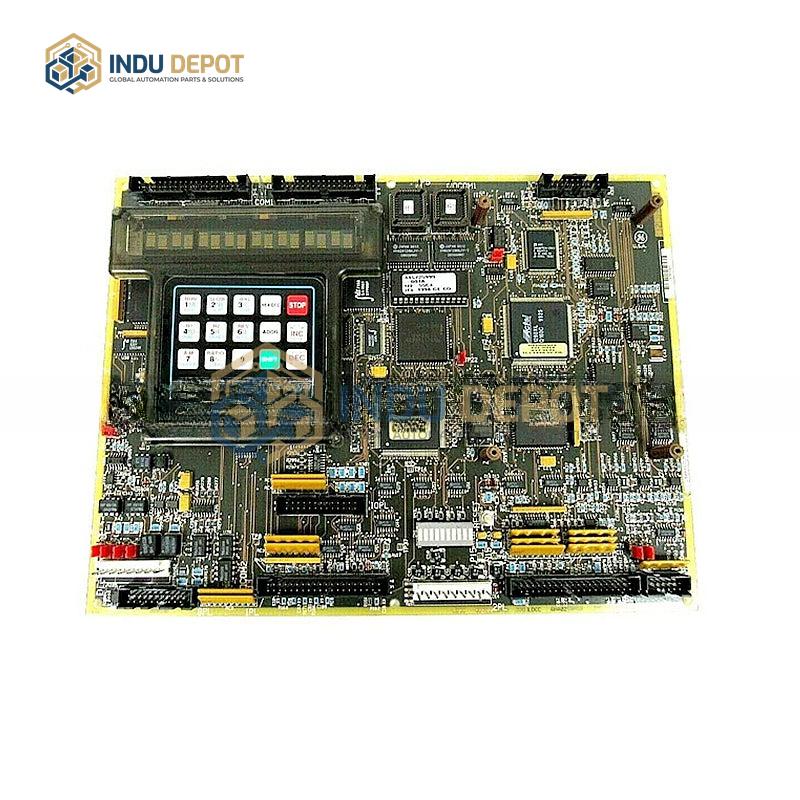

General Electric DS200LDCCH1AKA | LAN Communications Card

Description

The General Electric DS200LDCCH1AKA LAN Communications Card is a specialized control and communication component belonging to the GE Mark V series, compatible with DIRECTO-MATIC 2000 series drives as well as Mark V series drives and exciter boards. Equipped with four on-board microprocessors—LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), and Combined Motor Processor (CMP)—the card delivers multi-layered processing capabilities: the LCP manages LAN system filtering and supports multiple bus systems, the DCP handles integrated peripheral I/O control and signal filtering, the MCP oversees motor control circuits and initial I/O communication, and the CMP provides supplementary processing power for complex calculations. Key functions include host operator interface support, LAN communication, drive and motor processing, drive reset, and filtered control of equipment, motor, and I/O signals. A connected alphanumeric keyboard enables convenient access to system settings and diagnostics. Technical specifications include 24V DC input voltage, 5V DC output voltage, 2A rated current, operating temperature range of -40 degrees Celsius to +85 degrees Celsius, Ethernet and RS485 communication interfaces, and 16 input and 16 output I/O points. Measuring approximately 10x10x10 cm and weighing 3.5 kg, this card is widely used in manufacturing, oil and gas, power generation, and other industrial automation applications requiring high-performance drive control and LAN communication.
