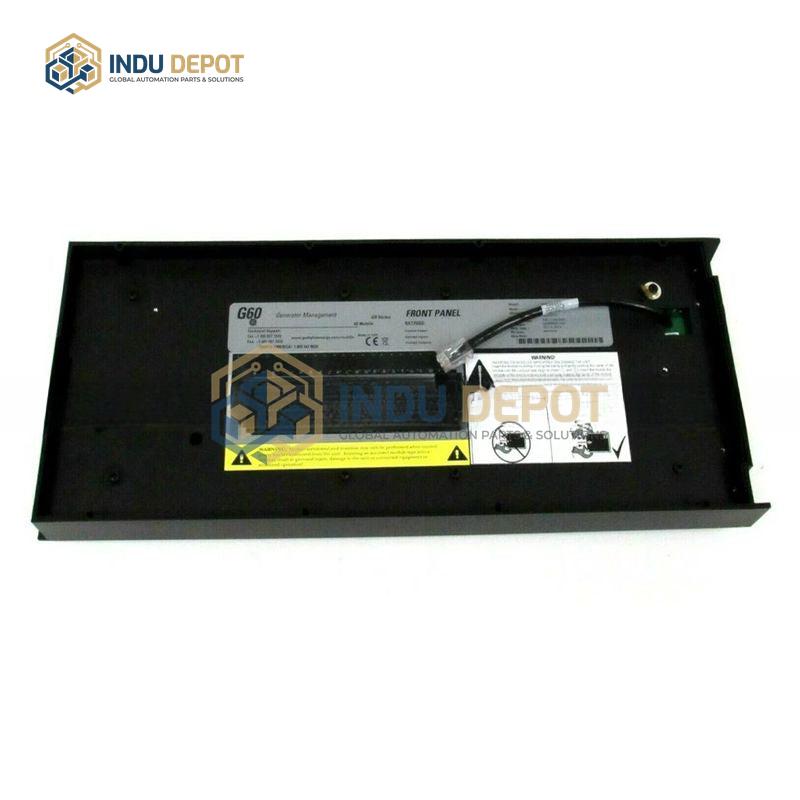

Generator Protection PLC Rack GE G60A00HCHF8AH6UM8AP6CU6CW6C
Description
GE G60A00HCHF8AH6UM8AP6CU6CW6C Generator Protection PLC Rack is a modular rack system designed to support GE’s G60 generator protection relay, a member of the UR series of protection relays, for comprehensive AC generator protection, control, and monitoring.
| Specification | Value |
|---|---|
| Operating Temperature Range | -40 to 70 degrees Celsius |
| Compliance Standards | IEC 61850, IEEE C37.90 |
| Modular Support | Hot-swap compatible modules |
| Required Modules for Specialized Protection | GPM-S for 100% stator ground fault protection, GPM-F for field ground fault protection |
Key Features:
- Supports the G60 relay’s integrated PMU (Phasor Measurement Unit) and process bus capabilities
- Modular design allows flexible expansion and hot-swap maintenance without system interruption
- Enables access to the G60’s large color LCD display for local configuration and fault diagnosis
- Backbone structure ensures reliable communication between installed protection and monitoring modules
- Compatible with both legacy and next-generation grid infrastructures
Applications:
- Large industrial power plants and utility generator facilities
- High-voltage and extra-high-voltage substations
- Oil and natural gas processing plants
- Railway traction power supply systems
- Renewable energy source interconnection systems
