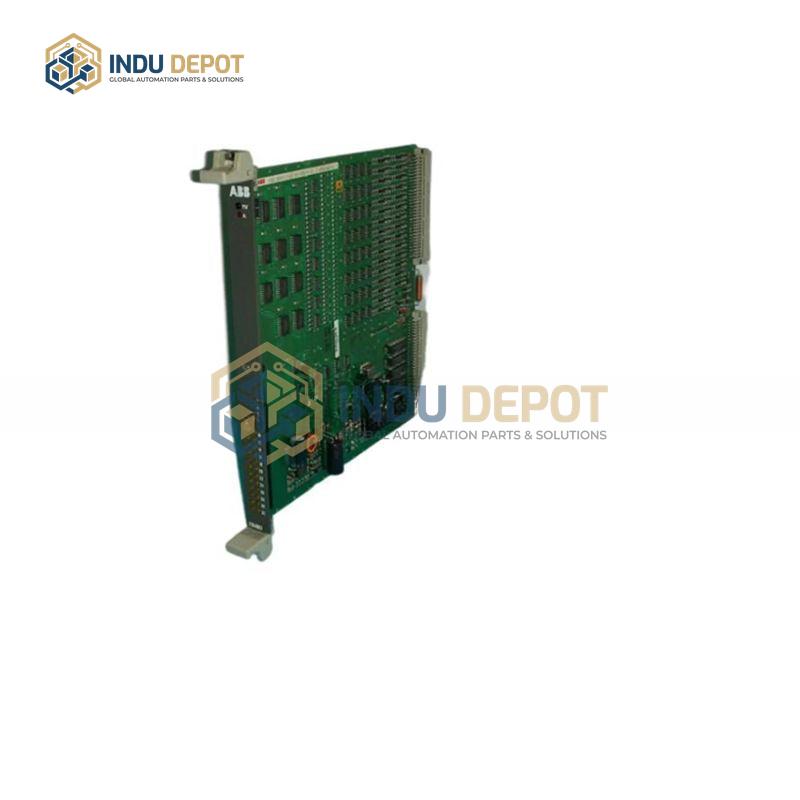

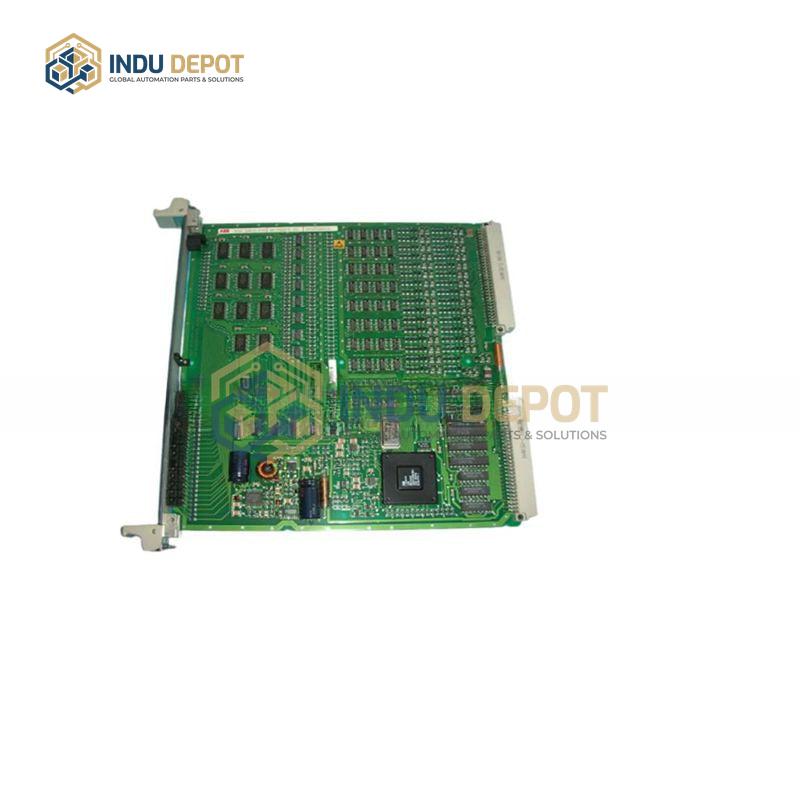

HESG324013R101/D ABB 216AB61 Output Unit
Description
HESG324013R101/D ABB 216AB61 Output Unit is a high-performance, high-reliability output module from ABB’s Procontrol series, designed to convert DC voltage to AC voltage for stable power supply to industrial loads. It integrates advanced switch power technology and robust safety features to operate reliably in harsh industrial environments.
| Specification | Value |
|---|---|
| Input Voltage | 20 – 30V DC |
| Output Voltage | 115 – 230V AC |
| Rated Output Current | 6A |
| Efficiency | >90% |
| Power Consumption | <10W |
| Output Channels | 16 independent binary outputs |
| Operating Temperature | -40 to 70 degrees Celsius |
| Protection Rating | IP20 |
| Dimensions | 167mm x 50mm x 170mm |
Key Features:
- High efficiency with low power consumption via advanced switch power technology
- Built-in overload and short-circuit protection for load and module safety
- Fast response time of ≤1ms for precise industrial control
- Compact size for easy installation and space-saving integration
- Supports Modbus RTU communication protocol for seamless system integration
- Compliant with IEC 60950-1, UL 508, and CE safety standards
Applications:
- Industrial automation systems, driving relays, solenoids, and small motors
- Electrical control systems and power distribution equipment
- Communication and medical equipment power supply
- Railway and transportation signal systems
