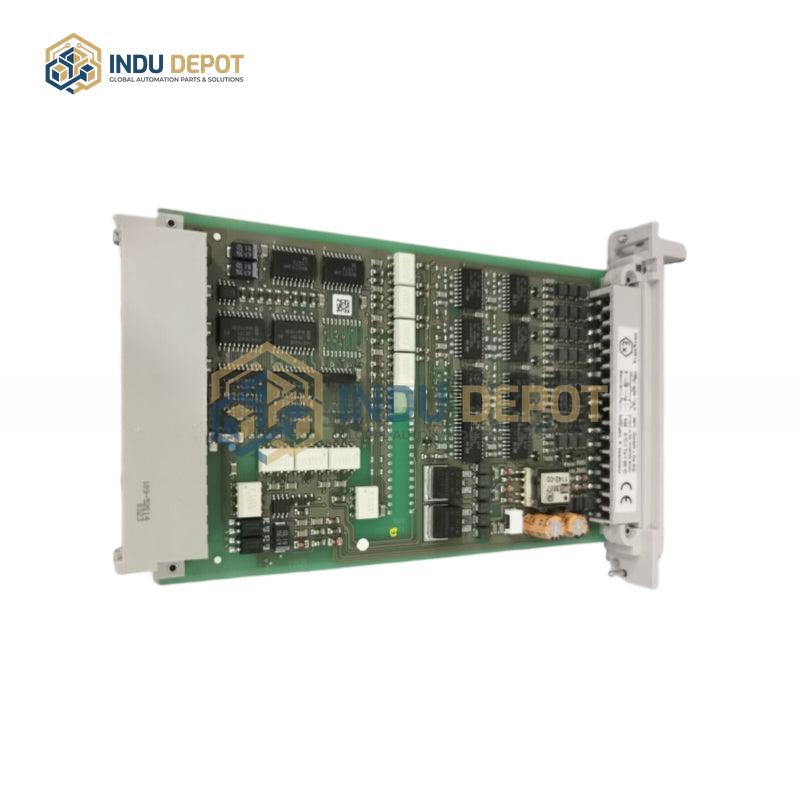

HIMA F7133 4-Fold Power Distribution F 7133

Description

The HIMA F7133 4-Fold Power Distribution Module is a multi-functional component designed exclusively for industrial automation control systems, serving as both a 4-channel power distribution fuse module and a flexible central controller or power supply unit. As a power distribution module, it features 4 independent power channels, each equipped with a micro fuse paired with an LED indicator; built-in evaluation logic monitors circuit status in real time, providing reliable line protection to ensure system stability. It delivers a relay switching time of approximately 100ms, with a continuous relay contact load capacity of 30V/4A, and maintains 0V residual voltage for enhanced electrical safety.

When configured as a central controller, it integrates hundreds of programmable components to support complex control functions, with robust communication capabilities enabling distributed control and centralized management for easy deployment across diverse industrial setups. As a power supply, it accepts an input voltage range of 100~240V AC and outputs 24V DC at 10A, with a 24V DC working voltage, 60mA working current, and 4A slow-blow maximum current rating. The module weighs 0.25kg, operates in temperatures from -20 degrees Celsius to 60 degrees Celsius, has an IP20 protection rating, and uses DIN rail mounting. It also includes A/D conversion and wireless data transmission, making it ideal for dispersed monitoring sites with low data volume, and is suitable for applications in industrial automation, smart manufacturing, energy management, and aerospace.
