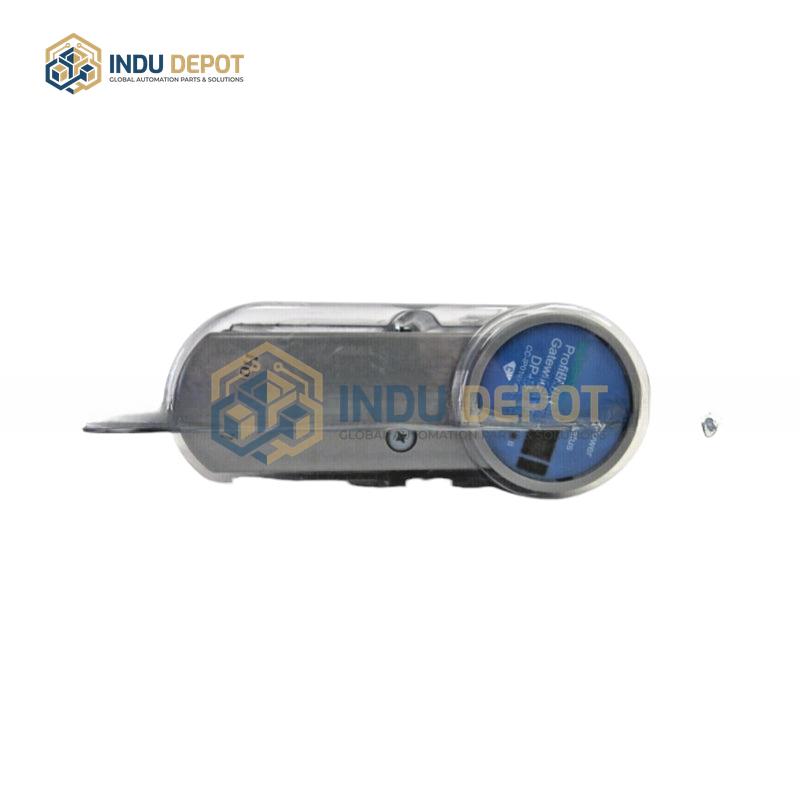

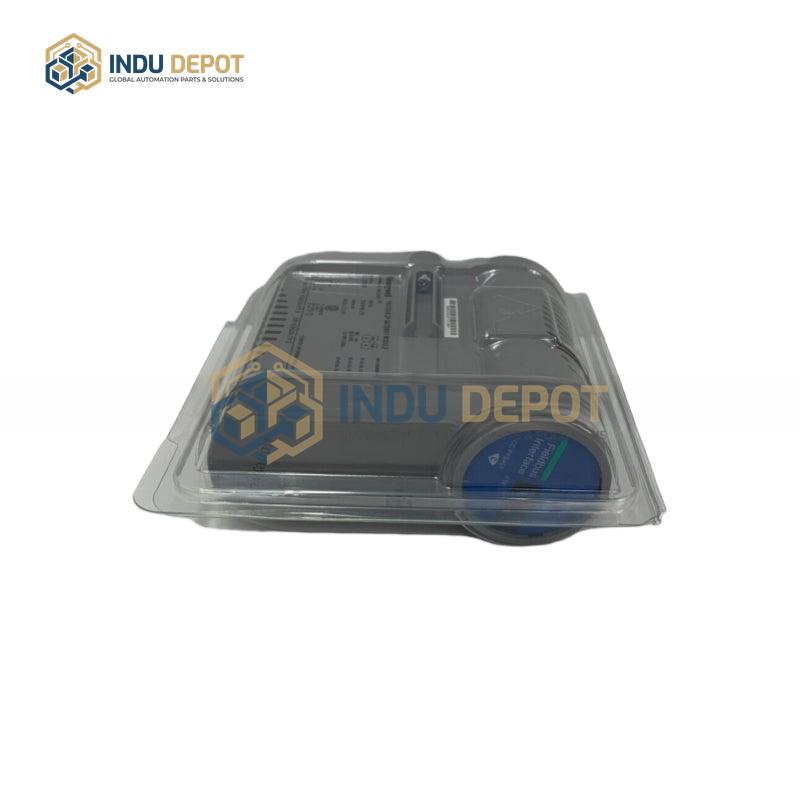

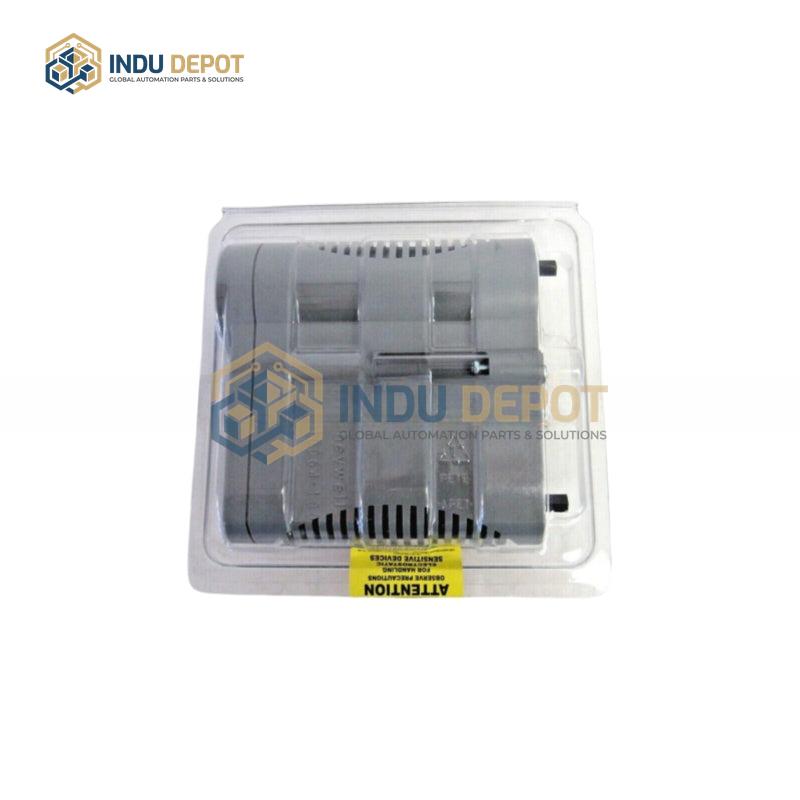

HONEYWELL CC-IP0101 51410056-175 Profibus DP Gateway Module

Description

The HONEYWELL CC-IP0101 51410056-175 is a dedicated PROFIBUS DP Gateway Module designed for industrial automation and process control integration. It supports PROFIBUS DP V0/V1 communication protocols with adjustable baud rates ranging from 9.6 kbps to 12 Mbps, enabling flexible, high-speed data transfer. Configurable as either a master or slave (typically set as master), it can connect up to 127 PROFIBUS DP slave devices via its RS-485 interface, and is fully compatible with Honeywell C300 controllers and Experion PKS systems.

Powered by 24 VDC with a typical power draw of 390 mA, this module operates reliably in extreme environments, with a working temperature range of -40 degrees Celsius to 70 degrees Celsius and a storage temperature range of -40 degrees Celsius to 85 degrees Celsius. Its compact physical dimensions measure approximately 190 mm x 69 mm x 23 mm, and it carries CE and RoHS certifications. Key features include robust data collection, transmission, and processing capabilities, supporting read/write operations for PROFIBUS DP device data to enable real-time monitoring and control of device status, parameters, and commands. It also integrates built-in fault detection and diagnostic functions to monitor network and communication status, detect anomalies or device failures, and provide diagnostic information and alarms. This module is ideal for integrating PROFIBUS networks into industrial control systems, enhancing operational efficiency and connectivity.
