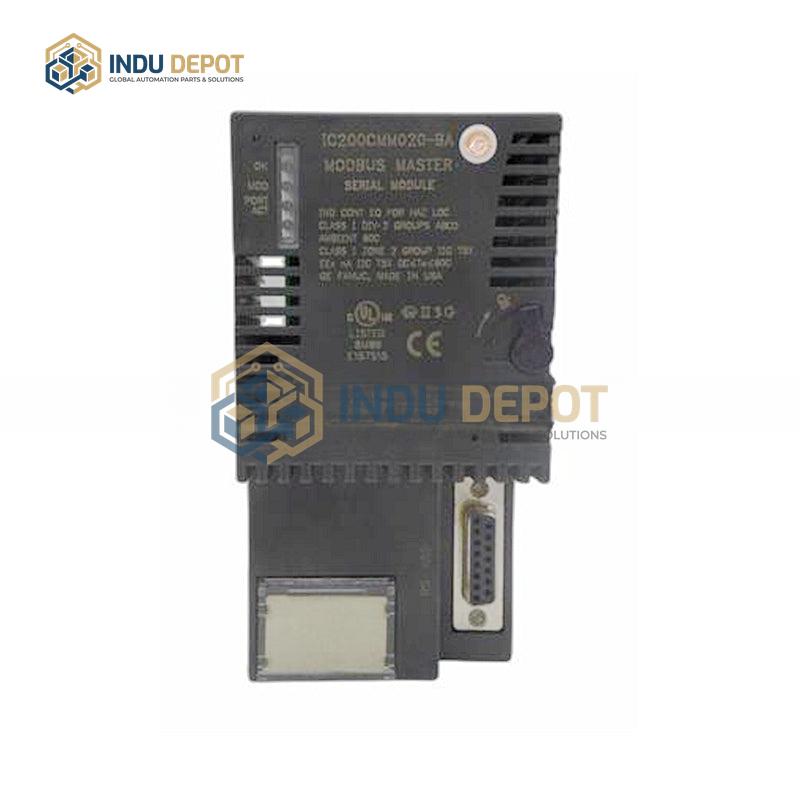

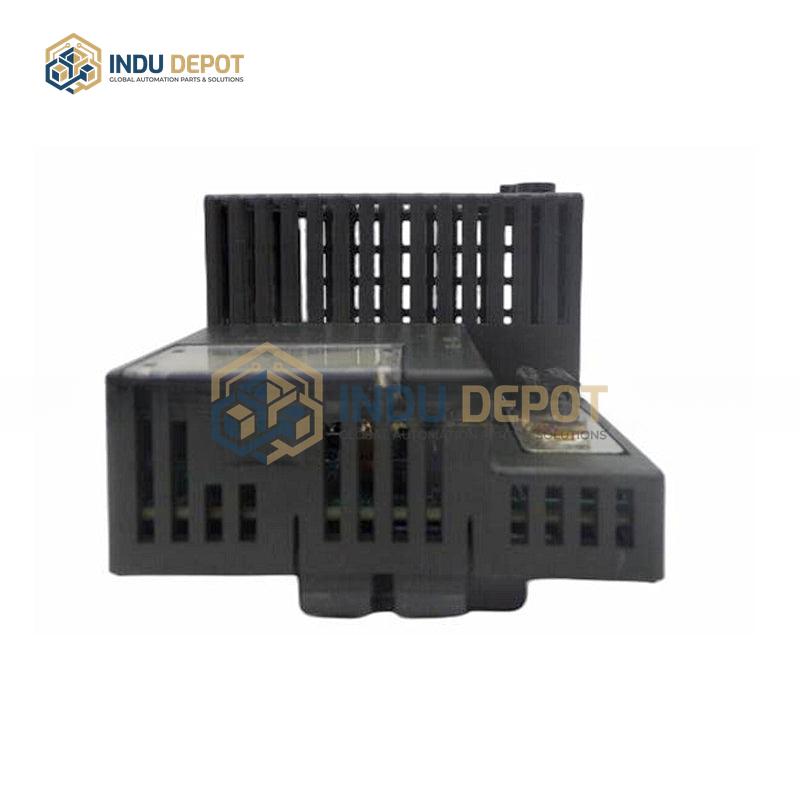

IC200CMM020 | GE FANUC | Modbus Master Module

Description

The IC200CMM020 is a VersaMax series serial communication expansion module designed as a Modbus Master Module, engineered to enable seamless serial communication with a wide range of Modbus slave devices. It features a flexible port configuration including an RS-485 port, 15-pin D-sub connector, and RS-232 port, supporting connections to devices such as controllers, VFDs, barcode readers, and license plate recognition systems.

This module offers selectable baud rates of 1200, 2400, 4800, 9600, or 19200, and supports both full-duplex and half-duplex operating modes to adapt to diverse communication requirements. Its compact form factor measures 4.3 inches wide, 2.63 inches high, and 1.956 inches deep, making it suitable for space-constrained industrial setups.

Electrical specifications include a current draw of 5 mA at 460V output and 3 mA at 5.3V output. Key functional features include easy configuration via a programmer’s universal COMM interface, compatibility with controllers that handle Genius global data, and the ability to connect up to 2 I/O stations at once. It also incorporates built-in safety protections, such as an internal current-limiting switch that locks the circuit upon overcurrent detection, and front-mounted LED indicators to display real-time operating status for quick diagnostics.
