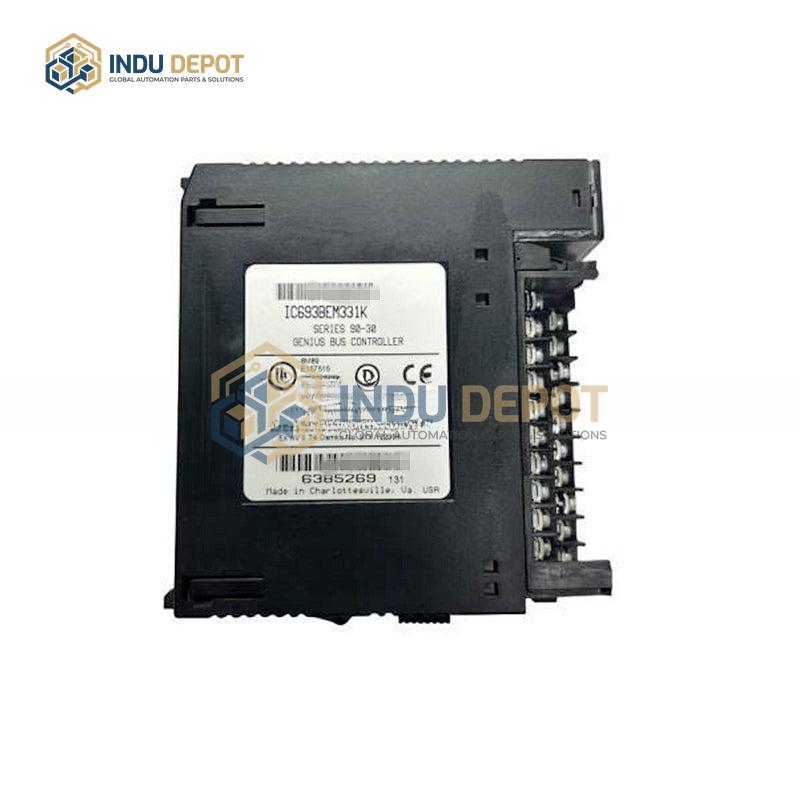

IC693BEM331K | GE FANUC | Genius Bus Controller

Description

The IC693BEM331K Genius Bus Controller is a key module for the GE Fanuc 90-30 series PLC, designed to enable seamless industrial communication integration. Its core function is connecting 90-30 series PLCs to the Genius/O bus, facilitating reliable data exchange with Genius modules and remote I/O branches. It supports communication with a wide range of field devices, including discrete, analog, and special-purpose Genius modules, as well as remote I/O setups such as 90-70 series I/O racks linked via remote I/O scanner modules and field control I/O stations connected through bus interface units. A single 90-30 series PLC system can accommodate up to 8 of these controllers or enhanced Genius communication modules to handle complex industrial automation tasks.

Key technical specifications include a 1.5Mbps data transmission rate, support for up to 31 Genius I/O devices on the bus, and the ability to process a maximum of 128 bytes of input and 128 bytes of output data from field devices. The module operates on 24VDC power, has dimensions of 110mm x 66.8mm x 50mm, weighs approximately 230g, features an aluminum housing, and uses terminal connections. It requires firmware version 5.0 or higher for compatibility with specific 90-30 PLC models, includes status LEDs to indicate operation and communication states, and is configured via a dedicated handheld monitor.
