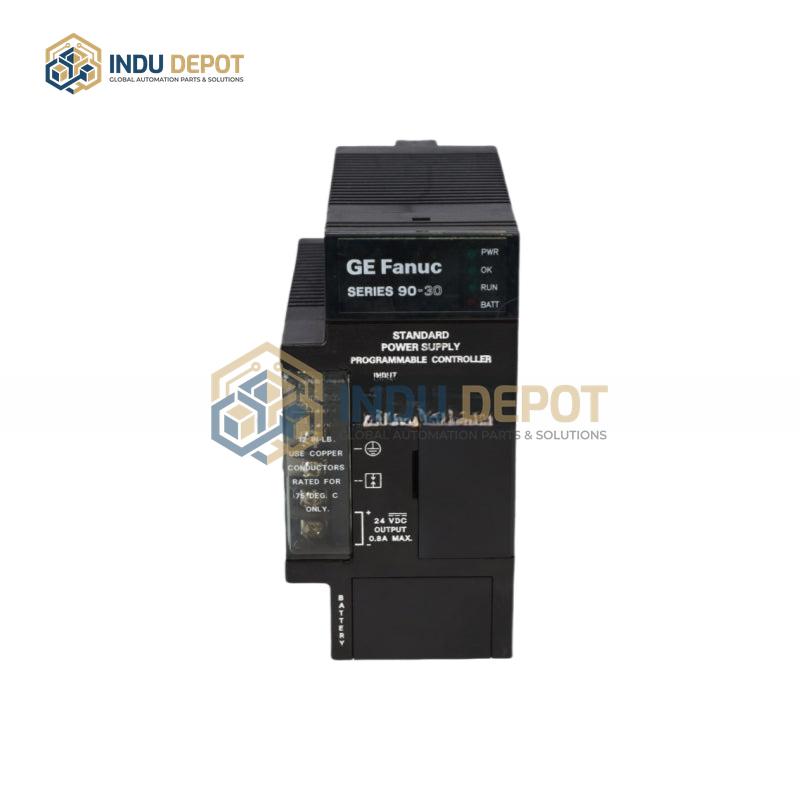

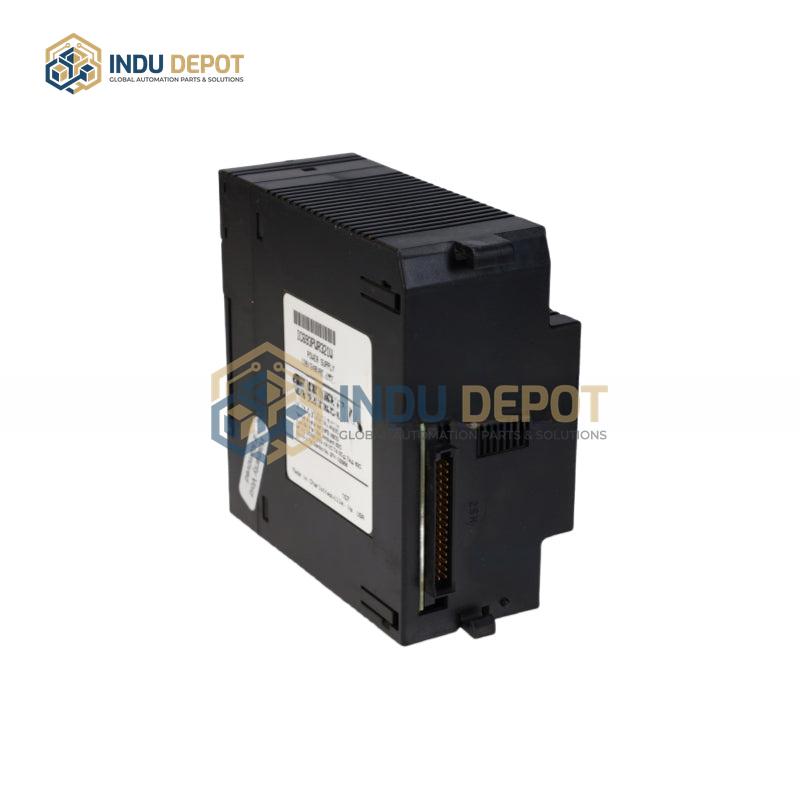

IC693PWR321 | GE FANUC Power Supply

Description

The IC693PWR321 is a standard power supply module belonging to the Series 90-30 product line, designed specifically to deliver reliable power to Series 90-30 PLC systems, supporting their normal operation and control functions. It features a total rated power of 30 watts, with a flexible input voltage range of 85-264 VAC or 100-300 VDC, enabling compatibility with diverse power grids. The module provides three distinct output voltages: 5 VDC, standard 24 VDC, and isolated 24 VDC, with output capacities of 15 watts for 5 VDC, 20 watts for standard 24 VDC, and 15 watts for isolated 24 VDC; the 24 VDC outputs can also supply external power to 24 VDC input modules.

Installed via panel mounting in the leftmost slot of the Series 90-30 backplane, it is fully compatible with all CPU models in the Series 90-30 line, suitable for small to medium-sized racks. Key protective and functional features include a peak inrush current of 4 amps for up to 250 milliseconds, a short-circuit protection function that cuts power to safeguard hardware, 6 user connection terminals, built-in diagnostic capabilities, and an intelligent switch fuse function to enhance operational safety.
