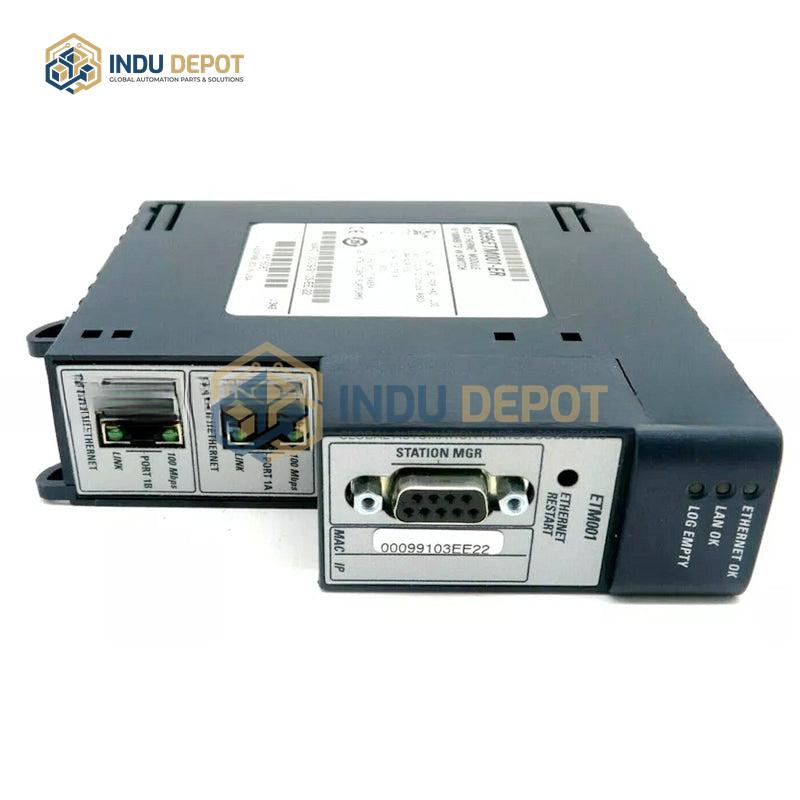

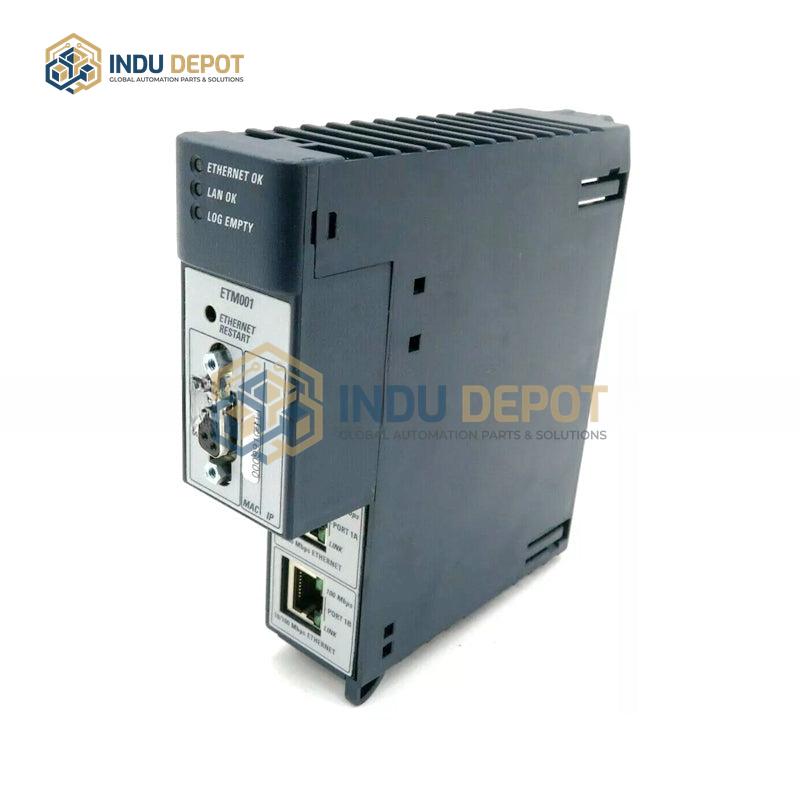

IC695ETM001-LAAA GE Fanuc Ethernet Transmitter Module

Description

The IC695ETM001-LAAA GE Fanuc Ethernet Transmitter Module is a single-slot communication module designed exclusively for the PACSystems RX3i series programmable automation controllers. It enables reliable Ethernet connectivity, supporting 10/100Mbps transmission rates with auto-negotiation, and features an embedded switch that detects connection speed and cable type for flexible network integration. Equipped with 3 RJ45 ports (10/100/1000BaseTX adaptive), it supports both straight-through and crossover cables, and allows daisy-chaining of Ethernet nodes. The module facilitates cross-platform communication between PACSystem RX3i controllers and other devices including 90 series, 90-30 series, and VersaMax controllers.

Powered by a 32-bit microprocessor with built-in flash memory and RAM, it runs on 24VDC power with a power consumption of less than 5W, operating in temperatures ranging from -20 degrees Celsius to 60 degrees Celsius. It supports a comprehensive set of industrial communication protocols including TCP/IP, Modbus TCP, SRTP, and EGD, enabling functions like periodic data exchange, controller read/write commands, and time synchronization with SNTP servers. Additional features include remote firmware upgrades via WinLoader or Web/HTTP, support for full-duplex and half-duplex nodes, and a compact form factor of approximately 120mm × 80mm × 40mm with DIN rail mounting capability.
