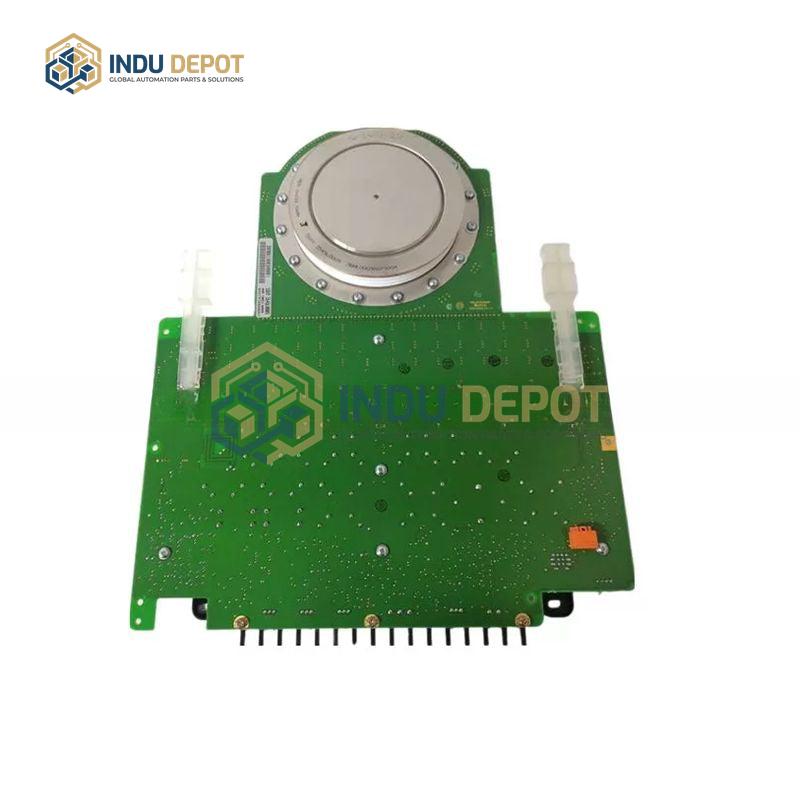

IGCT Module 3BHE009681R0101 3BHB013085R0001 5SHY3545L0009 ABB
Description
ABB 5SHY3545L0009 IGCT Module (Product Code: 3BHB013085R0001,配套驱动板: 3BHE009681R0101) is a high-power integrated gate-commutated thyristor module designed for large-scale power electronic systems. It combines the low on-state voltage drop and high blocking voltage of thyristors with the stable switching characteristics of transistors, delivering efficient and reliable power conversion performance.
| Specification | Value |
|---|---|
| Rated Voltage | 3.5 kV |
| Rated Current | 4500 A |
| Switching Frequency | 2 kHz to 20 kHz |
| Operating Temperature Range | -40 to 125 degrees Celsius |
| Cooling Method | Forced air cooling or water cooling |
| Short-circuit Interruption Capacity | 65 kA |
Key Features:
- Dynamic loss reduced by approximately 50% through buffer structure and shallow emitter technology
- Integrated freewheeling diode for simplified system design
- Low trigger power, with integrated trigger and status monitoring circuit options
- Modular design for easy installation, expansion, and maintenance
- High reliability and long service life, with design life up to 20 years
Applications:
- High voltage frequency converters and industrial drive systems
- Wind power converters and photovoltaic inverters
- High voltage direct current (HVDC) transmission systems
- Large-scale pump, compressor, and ship propulsion systems
Related Models:
- 5SHY3545L0010 (3BHB013088R0001)
- 5SHY4045L0006 (3BHB030310R0001)
- 5SHY3545L0014 (3BHB021400R0002)
