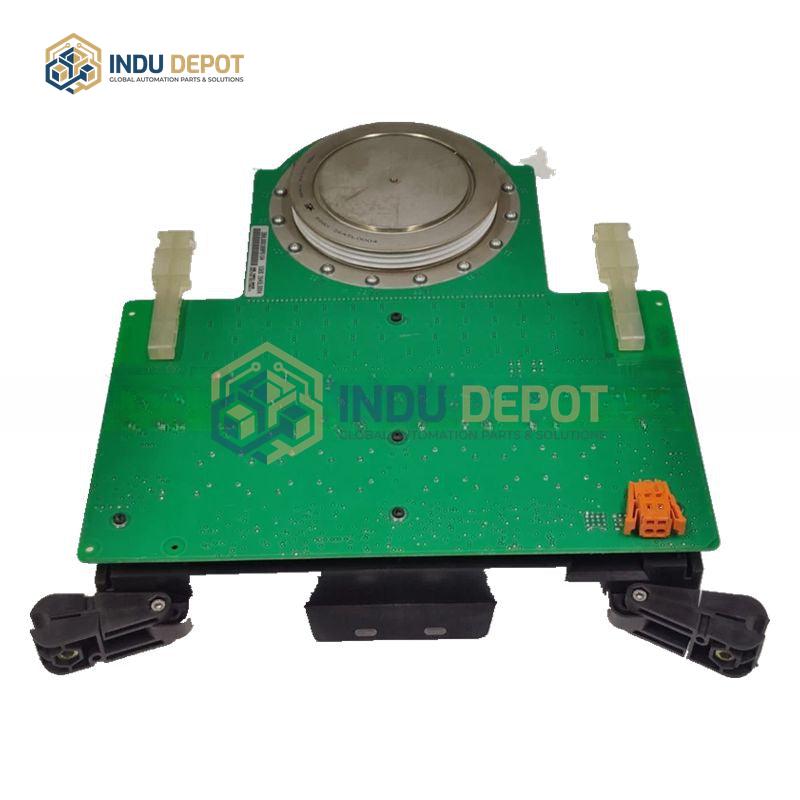

IGCT Module ABB 3BHB003386R0101 3BHL000387P0101 5SHX1445H0002
Description
ABB 3BHL000387P0101 IGCT Module is a high-power integrated gate-commutated thyristor (IGCT) module designed to enhance power conversion performance by combining advanced switching technology with low-loss operation.
| Specification | Value |
|---|---|
| Maximum Power Range | Up to 100 megawatts via series connection |
| Base Power Capacity | Up to 250 kilowatts |
| Switching Technology | IGCT (integrated gate-commutated thyristor) |
Key Features:
- Improved GTO switching characteristics, enabling operation without dv/dt buffering at high current densities
- Reduced conduction and turn-off losses for enhanced energy efficiency
- Integrated design combining drive unit, power semiconductor, and cooler into a single functional unit
- Eliminates need for buffer capacitors, diodes, and resistors used in traditional GTO converters
Applications:
- High-power conversion systems for industrial automation
- Medium-voltage variable frequency drives
- Static var compensators and high-voltage direct current transmission systems
Related Models:
- 3BHE009681R0101
- 5SHX1445H0002
- 3BHE024415R0101
- 5SHX1445H0001
