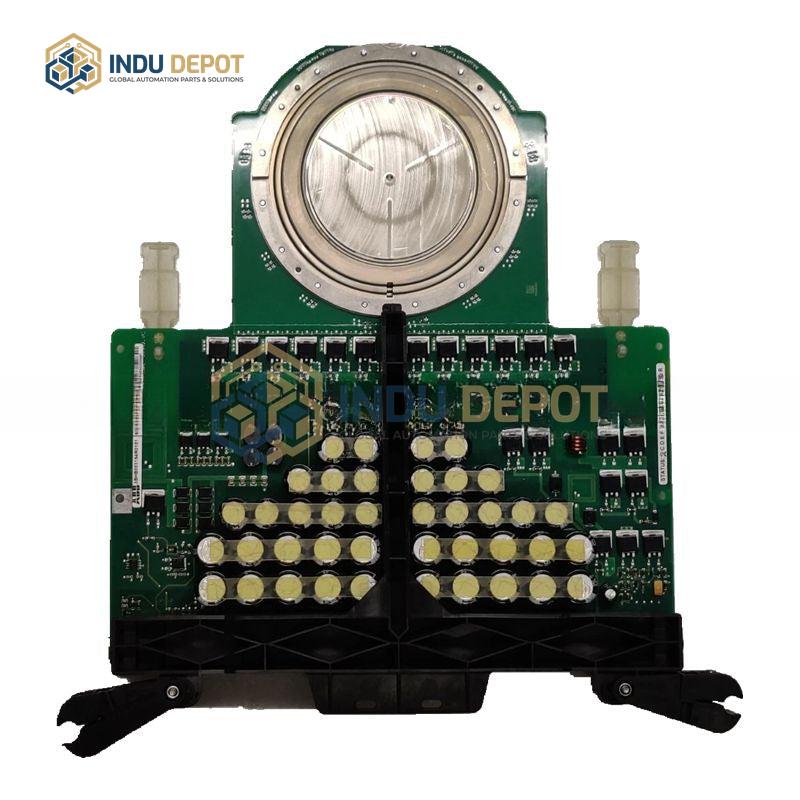

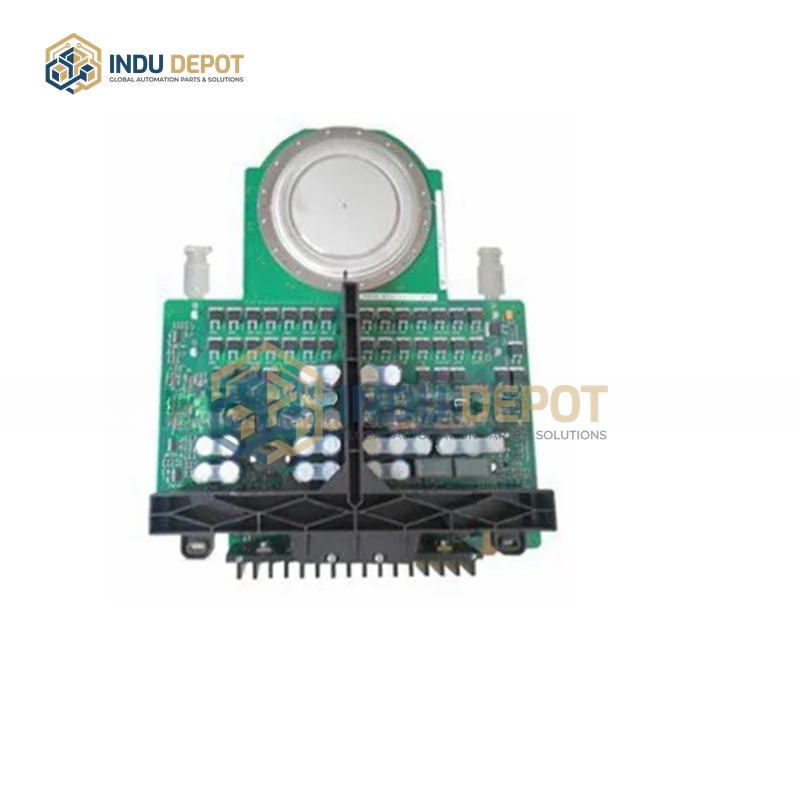

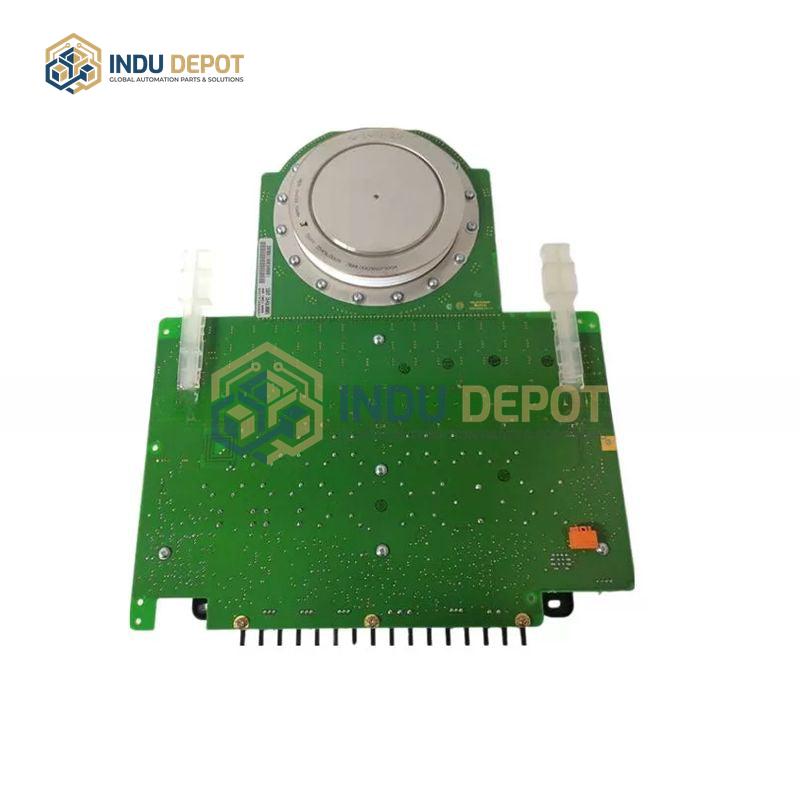

IGCT Module for Power Systems 5SHX1445H0002 3BHL000387P0101 by ABB
Description
5SHX1445H0002 3BHL000387P0101 ABB IGCT Module is a high-performance integrated gate-commutated thyristor module designed for power systems, combining high current capacity and fast switching characteristics to enable precise current control and system protection.
| Specification | Value |
|---|---|
| Brand | ABB |
| Origin | Sweden |
| Operating Voltage | 24V |
| Output Frequency | 50 Hz |
| Program Capacity | 64M |
| Data Capacity | 16MB |
| Operating Temperature Range | 0 to 85 degrees Celsius |
| Operating Humidity Range | 0 to 65 percent relative humidity |
| Dimensions (L*W*H) | 52*32*66 mm |
Key Features:
- High voltage withstand capability for heavy-duty power system applications
- Low switching loss to improve overall system efficiency
- High-speed switching performance for dynamic system response
- Integrated short-circuit protection to enhance operational safety
- Integrated gate drive circuit optimized for fast switching and low loss
Applications:
- High-voltage direct current (HVDC) transmission systems
- Power converters and power electronic devices
- Industrial power drive systems
- Rail transit power control systems
- Metallurgy industry power equipment
