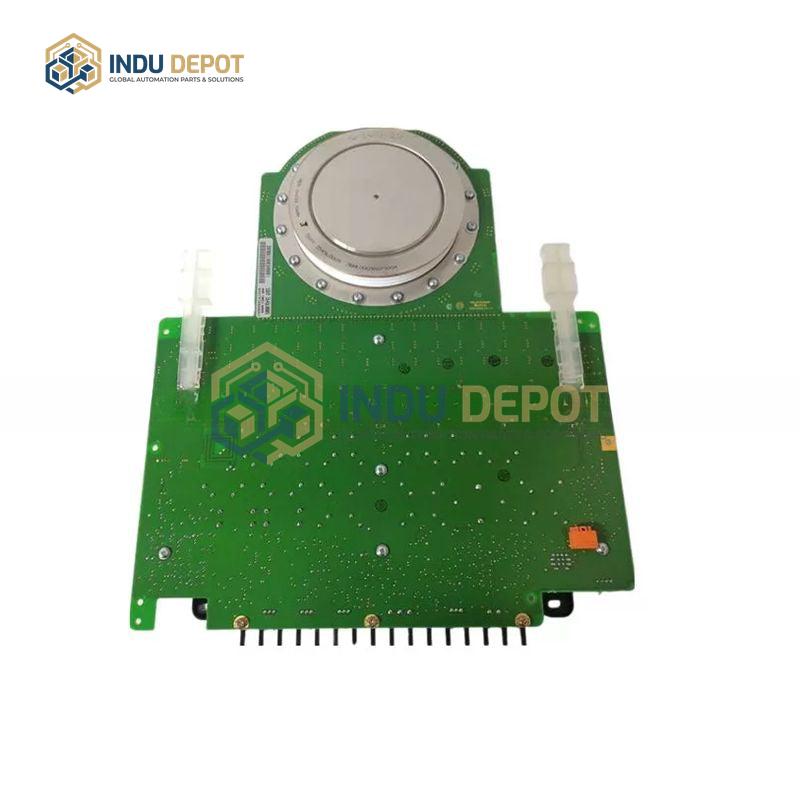

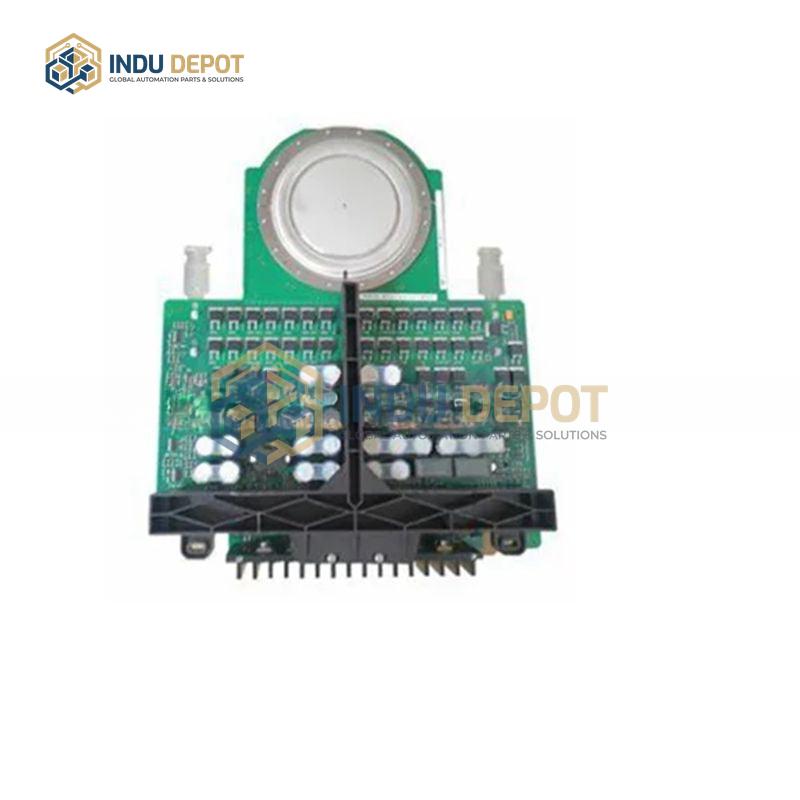

IGCT Power Module 5SHX0445D0001 3BHL000382P0101 ABB
Description
IGCT Power Module 5SHX0445D0001 3BHL000382P0101 ABB is a high-performance integrated gate-commutated thyristor (IGCT) power module that combines the fast switching characteristics of IGBTs with the high blocking voltage and low conduction loss features of GTOs, designed for medium-to-high voltage, high-power power electronic applications.
| Specification | Value |
|---|---|
| Blocking Voltage | Up to several thousand volts, compatible with high-voltage DC bus systems |
| Current Handling Capacity | High, supports large current transmission; typical rated current up to 4000A |
| Turn-On Time | Approximately 200 nanoseconds, enables high-frequency switching |
| Conduction Voltage Drop | Approximately 2.5V, low conduction loss |
| Trigger Control Method | Fiber optic signal transmission with independent gate power supply unit (GUSP) |
| Operating Temperature Range | -40 degrees Celsius to +125 degrees Celsius |
Key Features:
- Integrated design combines GTO chip, anti-parallel diode, and gate drive circuit to reduce stray inductance and improve stability
- Uses buffer layer structure with thinner silicon wafer to minimize conduction loss
- High reliability with premium semiconductor materials and strict manufacturing processes
- Low electromagnetic interference due to fiber optic control signal transmission
- Compact structure saves installation space and simplifies system integration
Applications:
- Industrial variable frequency drives and motor control systems, including ACS series inverters, used in rail transit, steel and metallurgy industries
- Renewable energy systems such as wind power grid connection and solar inverters
- High-voltage power transmission and distribution systems
- Traction systems for electric locomotives and EMUs
