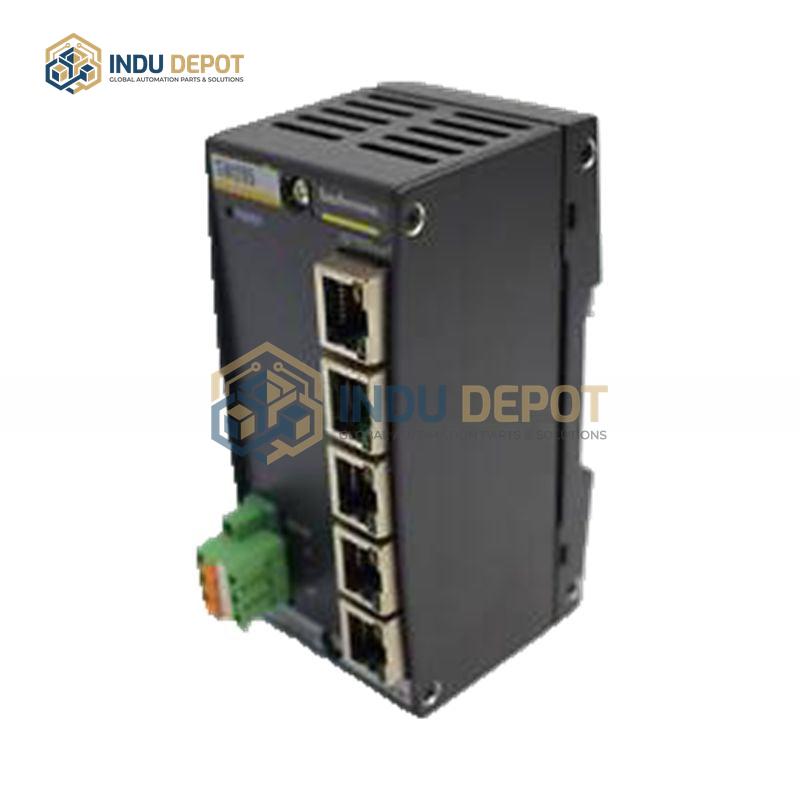

Industrial Ethernet Switch SWI205 Bachmann
Description
Industrial Ethernet Switch SWI205 Bachmann is a rugged, unmanaged industrial networking device designed for reliable data transmission in harsh industrial environments. It supports standard Ethernet protocols and flexible port configurations to meet diverse industrial networking needs.
| Specification | Value |
|---|---|
| Port Configuration | 5 x 10/100Base-T(X) adaptive RJ45 electrical ports (full/half duplex, auto MDI/MDI-X) |
| Operating Temperature | -25 to 70 degrees Celsius |
| Protection Rating | IP40 |
| MAC Address Table Size | 1K entries |
| Power Supply | 24V DC (18V to 32V DC range) |
| Mounting Type | DIN rail mountable |
Key Features:
- Supports broadcast storm suppression to maintain network stability
- Relay output for power failure alarm notification
- Aluminum chassis for efficient, fanless passive cooling
- Complies with IEEE 802.3, 802.3u, 802.3x standards
- Auto-negotiation for port speed and duplex mode
Applications:
- Factory automation and process control systems
- Intelligent transportation and railway signaling networks
- Power grid and energy distribution infrastructure
- Petrochemical and mining site networking
Related Models:
- SWI205-M (4 x 10/100Base-TX RJ45 + 1 x 100Base-FX fiber port)
- SWI205-SS (3 x 10/100Base-TX RJ45 + 2 x 100Base-FX single-mode fiber ports)
- SWI208 (8-port 10/100Base-TX industrial Ethernet switch)
