Industrial PLC/DCS I/O Control Module ABB 5SHY6545L0001
Description

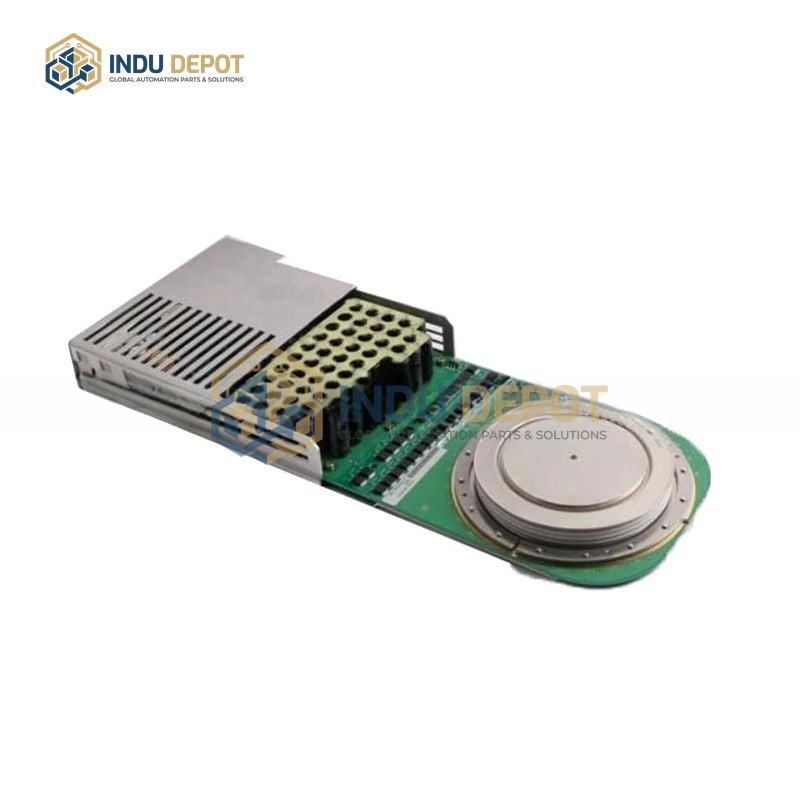

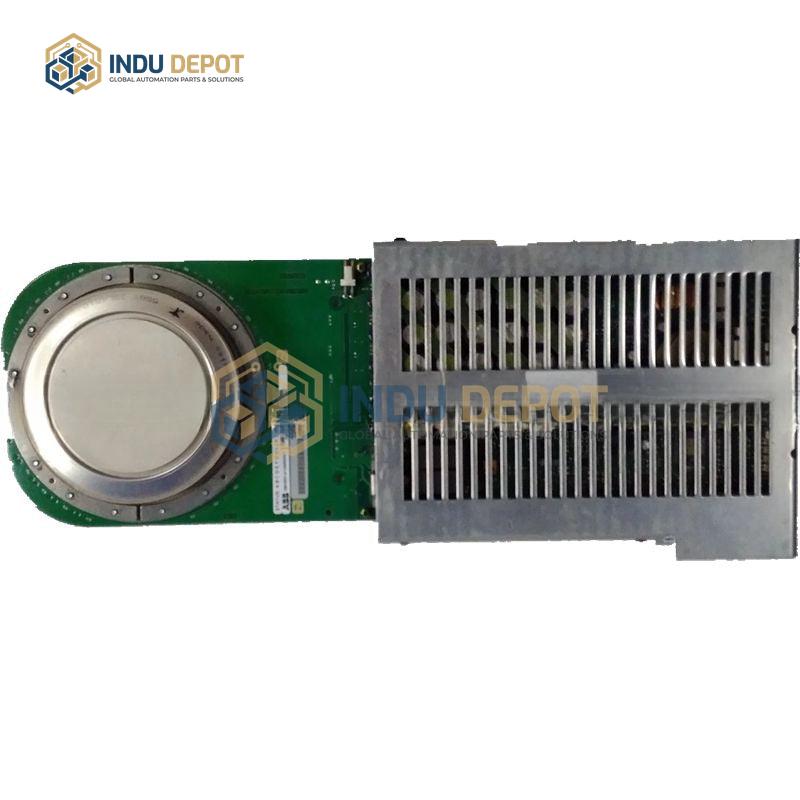

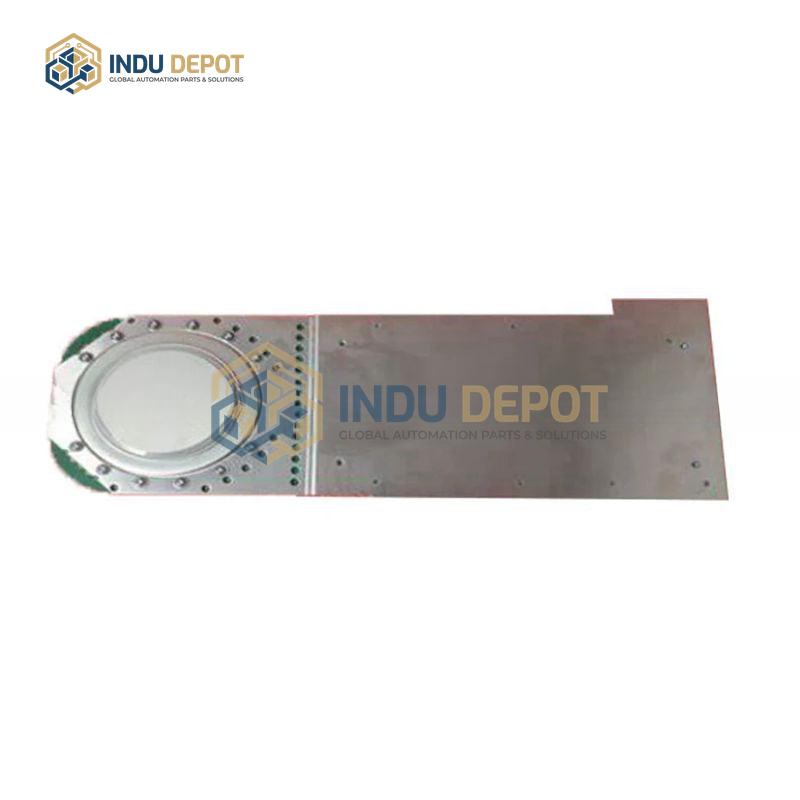

ABB 5SHY6545L0001 is a high-performance IGBT module designed for industrial automation and power electronics applications, delivering efficient power conversion and reliable operation in high-power scenarios.
| Specification | Value |
|---|---|
| Rated Voltage | 4500V |
| Maximum Rated Current | 6500A |
| Maximum Rated On-Off Loss | 30kW |
| Maximum Rated Switching Frequency | 1600Hz |
| Maximum Rated Junction Temperature | 175 degrees Celsius |
| Minimum Gate Pulse Current | 10mA |
| Minimum Gate Pulse Voltage | 15V |
| Package Type | TO-247AB |
| Weight | Approximately 6kg |
| Dimensions | 120 x 90 x 25 mm |
Key Features:
- High-performance IGBT technology combining GTO chips and anti-parallel diodes for efficient power conversion
- Fast switching speed supporting high-frequency operation for medium-voltage inverters and high-power industrial drives
- Low conduction loss and high switching efficiency for long-term stable operation
- Compact modular package for easy installation and maintenance
- High current handling capacity up to 6500A for high-power applications
Applications:
- Industrial automation including motor control, robotic spraying, and production line automation
- Power sector applications such as renewable energy systems (wind and solar power), industrial drives, electric vehicle charging stations, and grid infrastructure
Related Models:
- ABB 5SHX2645L0004
- ABB 5SHY3545L0014
- ABB 5SXE10-0181
