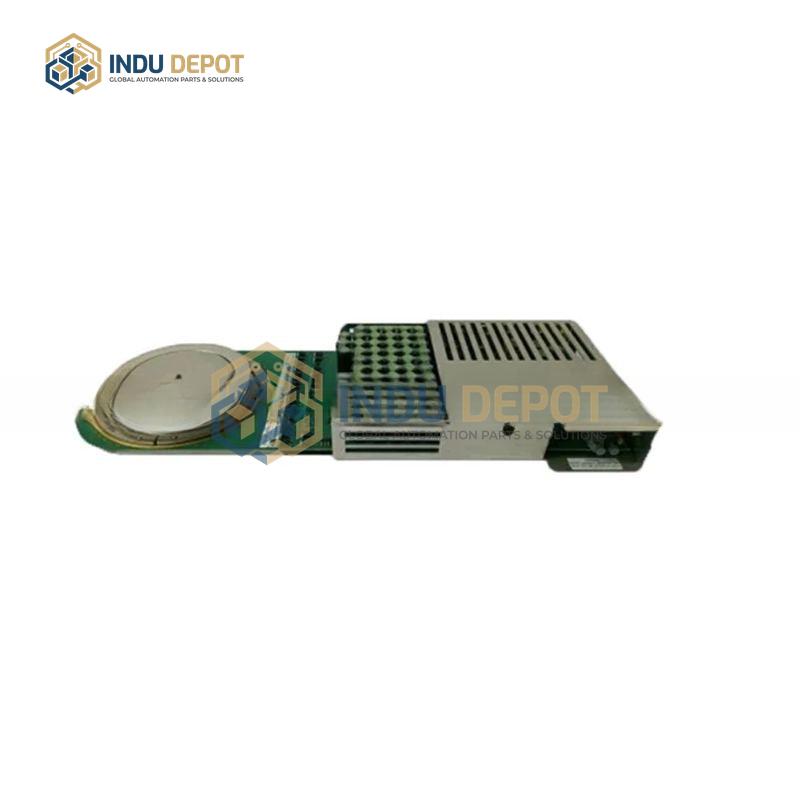

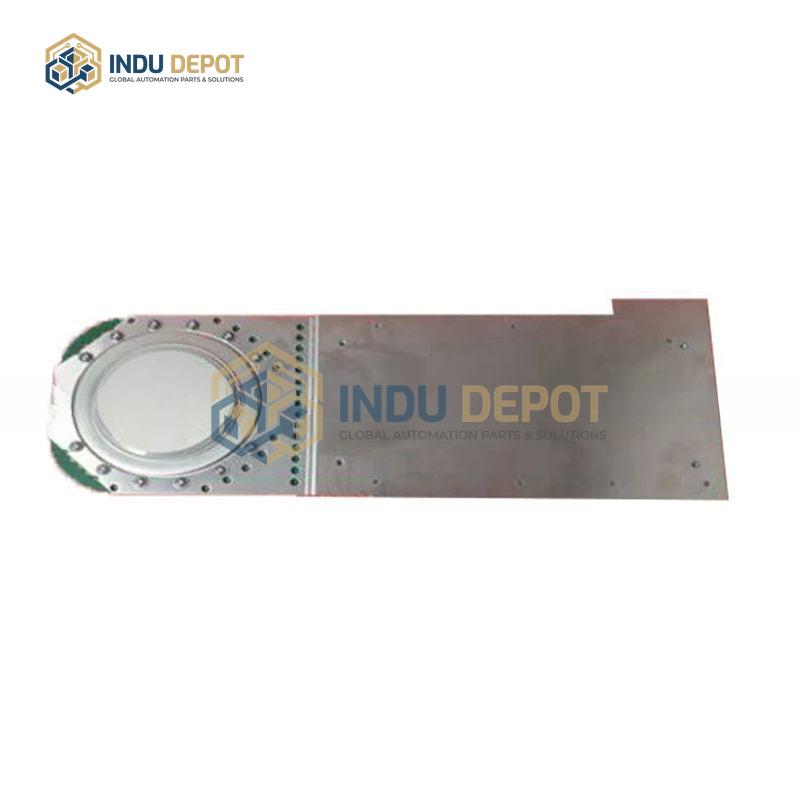

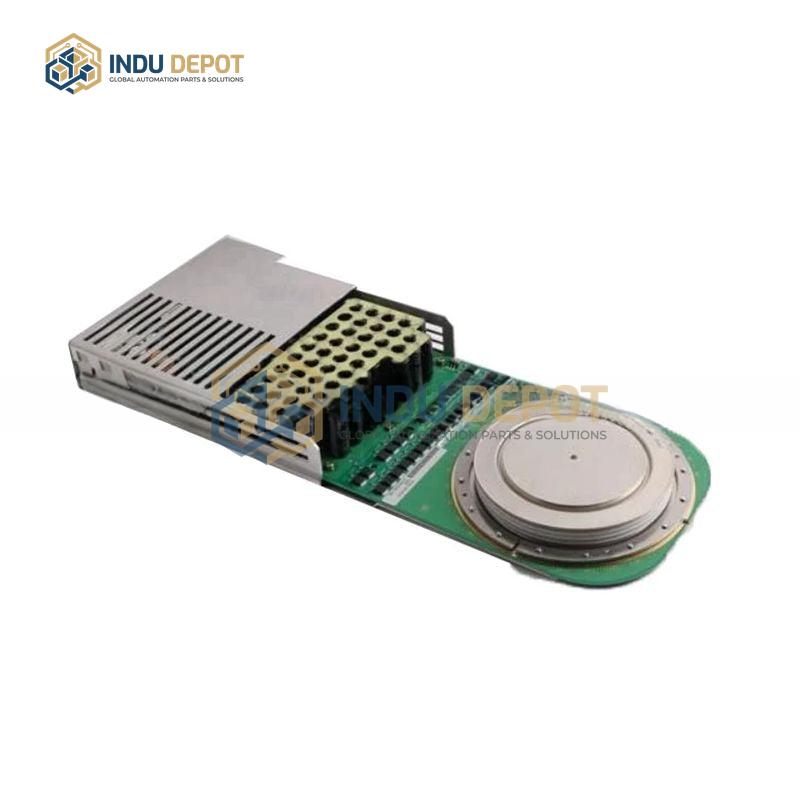

Industrial Power Module 5SHY4045L0006 ABB
Description
ABB 5SHY4045L0006 Industrial Power Module is a high-performance, high-voltage power semiconductor module belonging to ABB’s 5SHY series, designed for heavy-duty power conversion and control applications. It integrates advanced power semiconductor components, drive circuits, and protection systems to deliver reliable, efficient power handling.
| Specification | Value |
|---|---|
| Input Voltage | Greater than 24V, configuration-dependent |
| Output Voltage | 380V |
| Output Current | 45A |
| Rated Power | 17.1kW |
| Efficiency | 99% |
| Insulation Resistance | Greater than 100MΩ |
| Operating Temperature Range | -40 to 150 degrees Celsius |
| Protection Rating | IP68 |
| Package Type | TO-247 |
Key Features:
- High performance with microsecond-level switching speed and low conduction voltage drop for improved system efficiency
- High reliability with strong anti-interference capability and rugged industrial-grade packaging
- Easy integration with support for multiple communication protocols, compatible with ABB control systems
- Modular design for simplified installation, maintenance, and field replacement
Applications:
- Medium-voltage frequency converters, static var compensation devices, and high-voltage direct current transmission systems
- Industrial automation and control systems for signal processing and safety monitoring
- Power electronic frequency converters, industrial heating equipment, and rail transit traction systems
Related Models:
- 5SHY3545L0002
- 5SHY4048L0001
- 5SHY5045L0003
