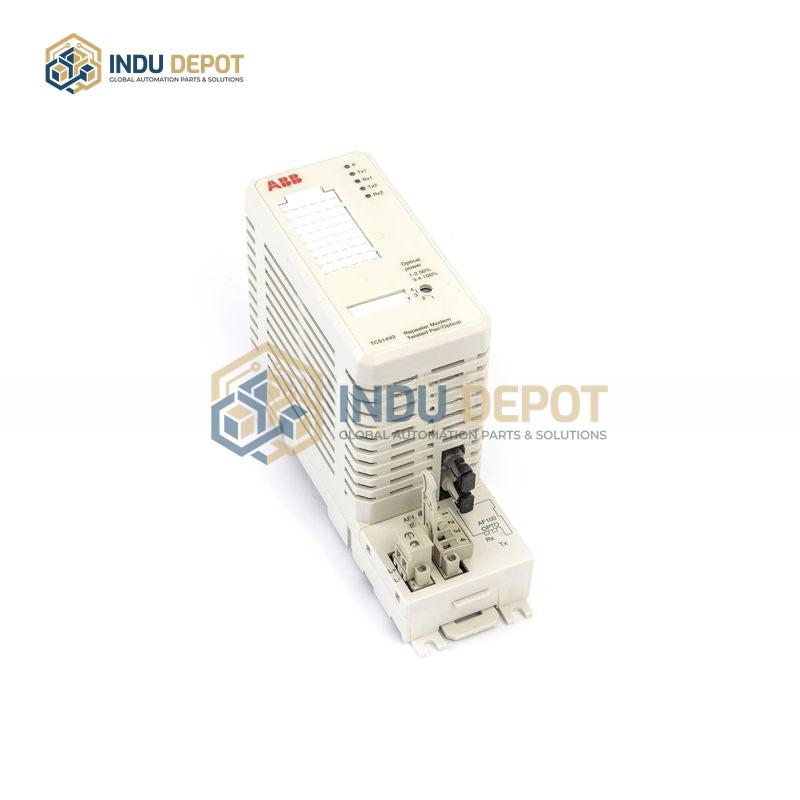

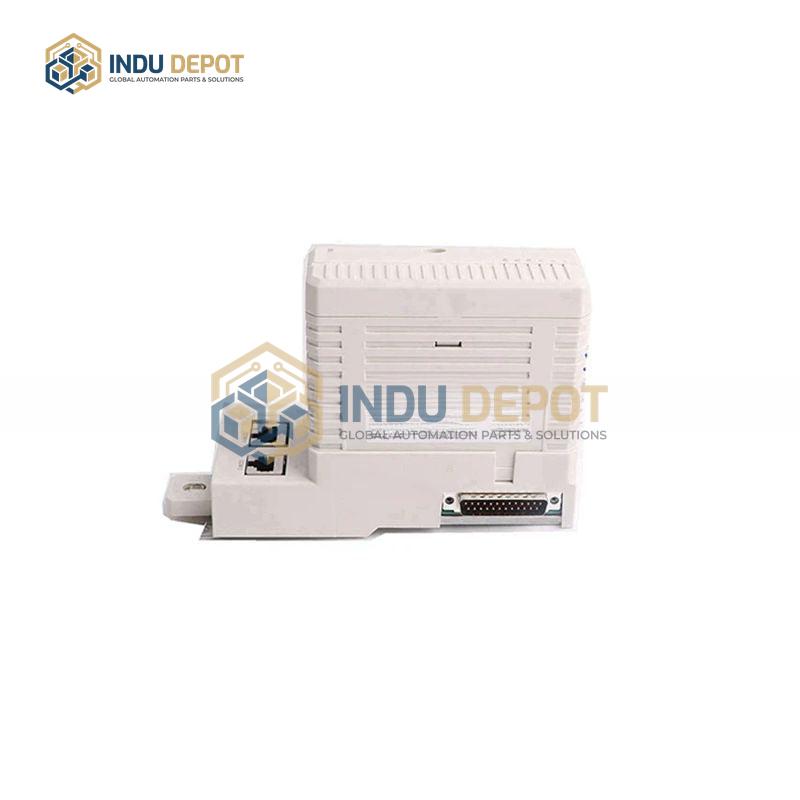

Industrial Repeater Modem for Automation Networks ABB TC514V2
Description
ABB TC514V2 3BSE013281R1 is a redundant system control module, serving as a core component in industrial automation and control systems. It features modular design, multi-protocol compatibility, and industrial-grade anti-interference capabilities for use in harsh industrial environments.
| Specification | Value |
|---|---|
| Communication Protocols | Modbus RTU/TCP, Profibus-DP, DeviceNet, EtherCAT, BACnet; supports automatic protocol switching via ABB FBP bus technology |
| Input Channels | 8 analog (4-20mA/0-10V), 8 digital (24V DC) |
| Response Time | Analog: ≤10ms, Digital: ≤1ms |
| Operating Temperature | -25 to 70 degrees Celsius |
| Protection Rating | IP20 (for cabinet installation) |
| MTBF | ≥800,000 hours |
| Dimensions | 170mm×57mm×120mm |
| Weight | 0.85kg |
| Certifications | CE, UL, IEC 61000-4 |
Key Features:
- Multi-protocol compatibility with automatic switching for seamless system integration
- High-speed response times for real-time industrial control applications
- Wide operating temperature range for use in extreme environments like deserts or polar regions
- High MTBF rating ensures long-term reliable operation
- Modular design simplifies installation and maintenance
Applications:
- Chemical processing plant automation systems
- Power generation and distribution control systems
- Manufacturing production line control
- Electronic and battery production equipment control
- Road, rail, and marine automation systems
