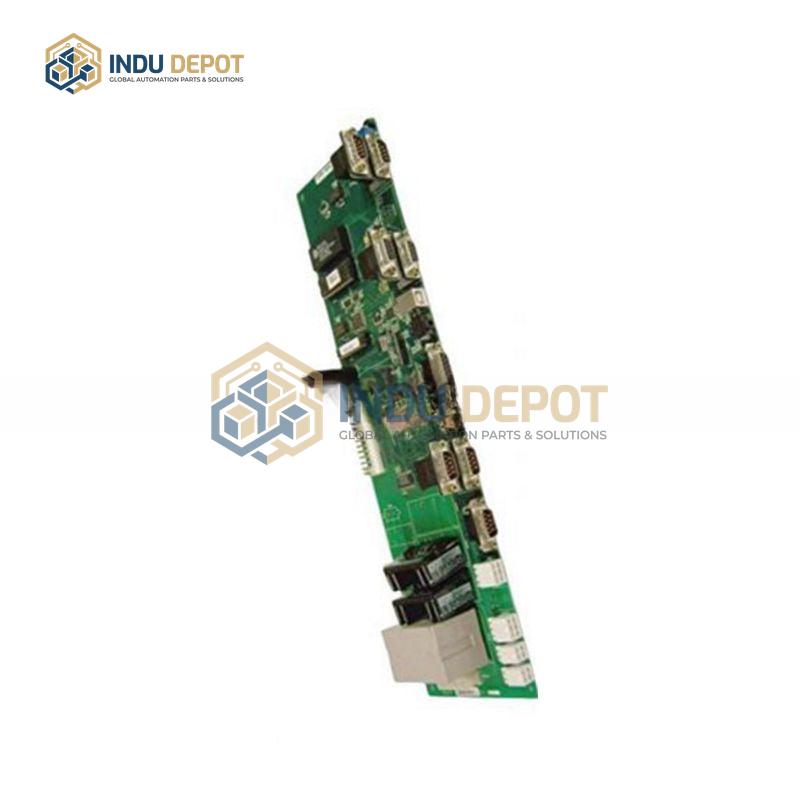

Innovation Control Board GE IS200ICBDH1ABA
Description
GE IS200ICBDH1ABA is an RST analog I/O board from General Electric, part of the Mark V series for gas turbine control systems. It scales and conditions a wide range of analog signals read from terminal boards mounted on I/O cores R1, R2, and R3, facilitating signal transfer between system components.
| Specification | Value |
|---|---|
| Part Number | IS200ICBDH1ABA |
| Manufacturer | General Electric |
| Product Type | Analog I/O Board |
| Series | Mark V |
| Country of Origin | United States |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Working Voltage | 24V DC |
| Power Consumption | Approximately 30 Watts |
Key Features:
- Scales and conditions multiple analog signal types including LVDT inputs, thermocouple inputs, 4-20 mA inputs/outputs, vibration inputs, and generator/line signals
- Facilitates signal transfer via dedicated connectors: 3PL connector for writing signals to STCA boards, JE connector for sending/receiving generator/line signals with TCQC boards
- Processes critical operational signals such as compressor stall detection and fuel flow pressure signals
- Designed for reliable performance in harsh industrial environments
Applications:
- Gas turbine control systems
- Industrial power generation control systems
- Heavy industrial automation systems requiring analog signal conditioning
Related Models:
- IS200WNPSH1ABA
- IS200TVIBH2BCC
- IS200BAIAH1BEE
