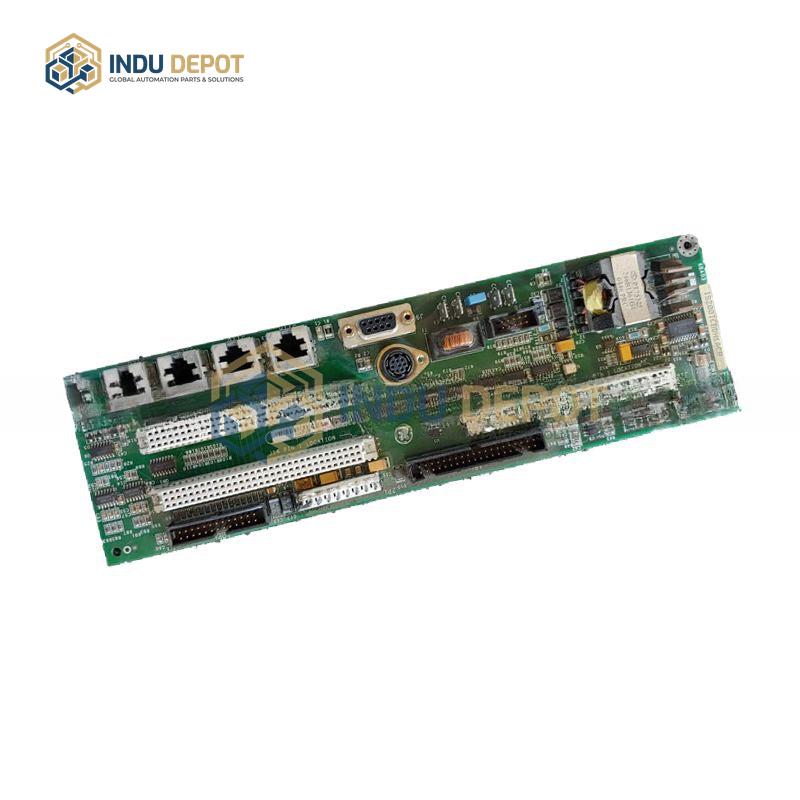

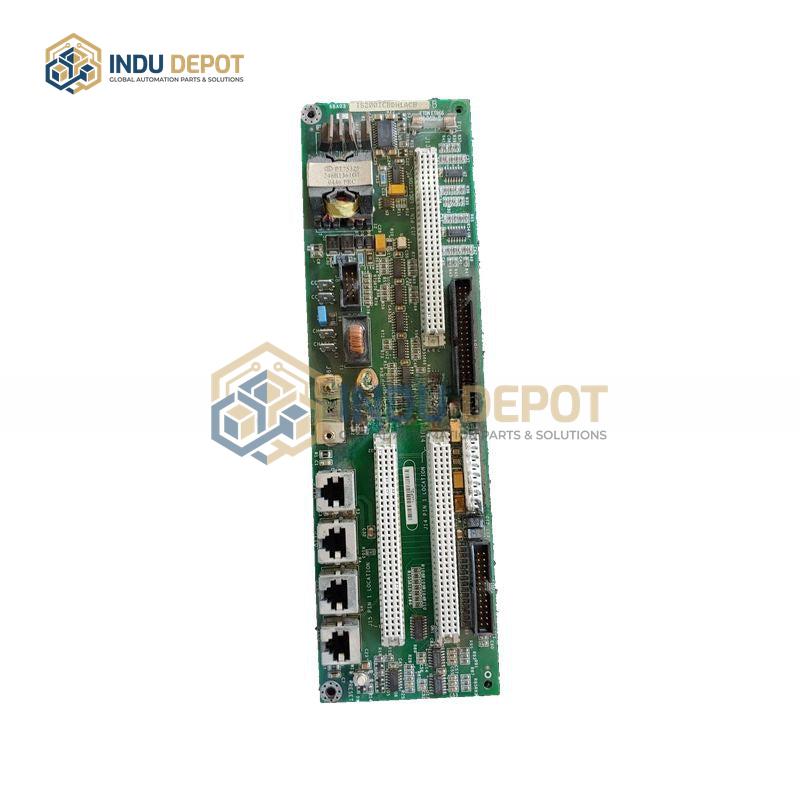

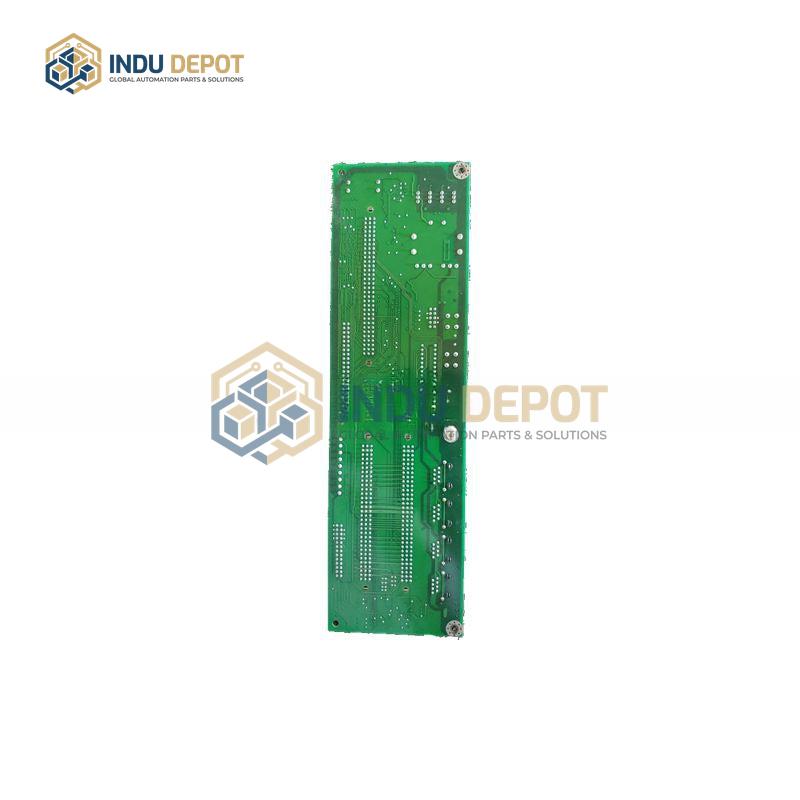

Innovation Control Board Module GE IS200ICBDH1ACB
Description
GE IS200ICBDH1ACB is a high-performance industrial control board module from General Electric, serving as a core component of the Mark VI (V1) series excitation control system. It is designed to regulate and monitor generator electromagnetic field current to maintain grid voltage stability and frequency synchronization.
| Specification | Value |
|---|---|
| Operating Voltage | 24V DC |
| Power Consumption | Approximately 30 Watts |
| Dimensions | 2.25 x 9.5 x 5.5 Centimeters |
| Weight | Approximately 0.5 Kilograms |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Communication Interfaces | RS-232 port, 4 Ethernet ports (J11A, J11B, J12A, J12B) |
Key Features:
- High reliability, designed for complex and harsh industrial environments with strong resistance to temperature and humidity fluctuations
- Multi-interface support, including backplane connectors and high-voltage electrolytic capacitors for easy integration with other system modules
- Versatile functionality with overload and short-circuit protection, enabling equipment status monitoring and automated control actions
- Integrates active components such as integrated circuits, diodes, capacitors, resistors, transformers, and inductors, plus a CPU socket for installing control core units
Applications:
- Generator excitation control systems to maintain grid voltage stability and frequency synchronization
- Turbine control systems for automated industrial operation
Related Models:
- GE IS200ECTBG1ACB
- GE IS200TCASH1ACB
- GE IS200ICBDH1A
