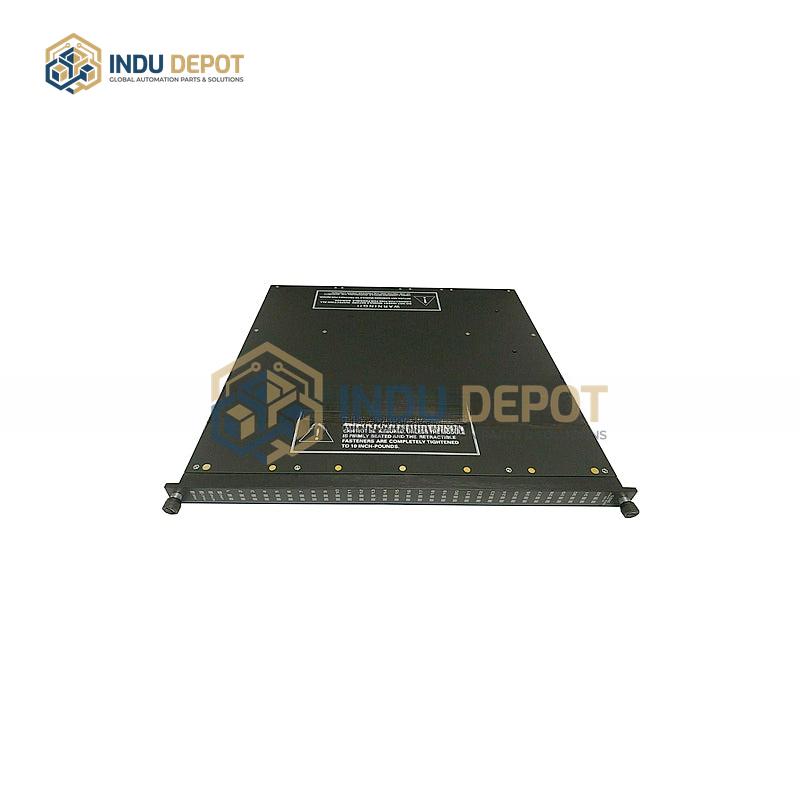

Invensys TRICONEX 3625 Digital 24VDC Output Module

Description

The Invensys TRICONEX 3625 Digital 24VDC Output Module is a high-reliability component designed for integration with Triconex Safety Instrumented Systems (SIS), used to control the on/off status of field devices, including safety interlocks and emergency shutdown functions in industrial processes. Built with Triple Modular Redundancy (TMR) technology, it delivers exceptional system availability and safety, meeting SIL 3 certification to satisfy high-risk industry requirements.

Key technical specifications include a rated voltage of 24VDC, with a shared operating range of 16-32VDC and a maximum allowable voltage of 36VDC. It provides 32 independent digital output channels, with per-point current ratings of 7A per 10 milliseconds and a maximum surge current of 1.7A. The module features a minimum required load of 10mA, maximum load leakage of 4mA, and 1500VDC point isolation for enhanced protection. Typical voltage drop is less than 2.8VDC at 1.7A, with a power module load of less than 13 watts. Configurable as supervised or unsupervised output, it includes built-in self-diagnostic functions and status indicators for each channel and module health. Operating within a temperature range of -20 degrees Celsius to 60 degrees Celsius and 5% to 95% relative humidity, it can drive diverse loads such as relays and valves, with flexible configuration options to adapt to varied application needs.
