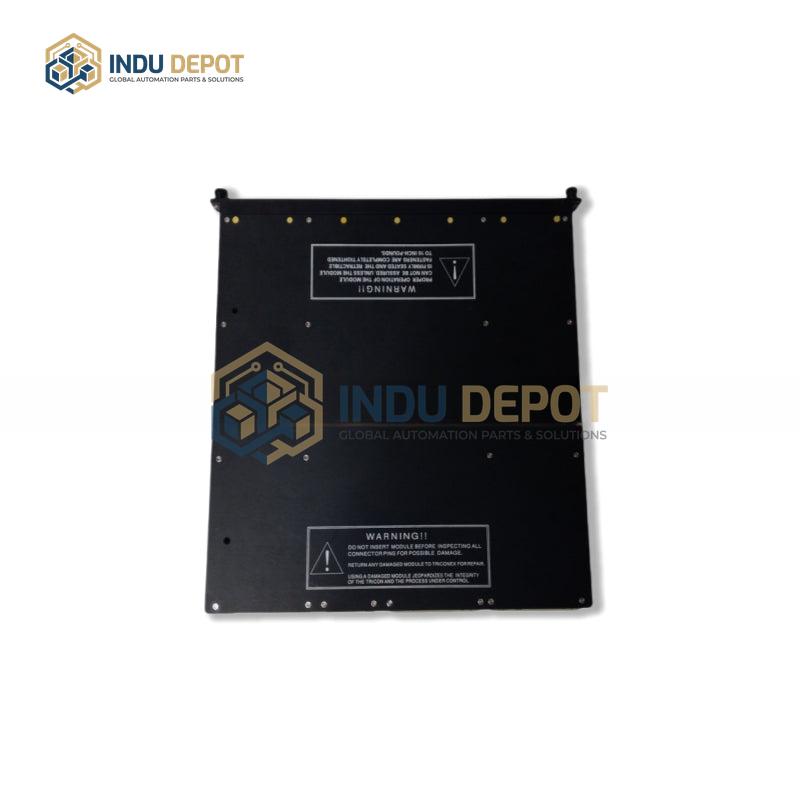

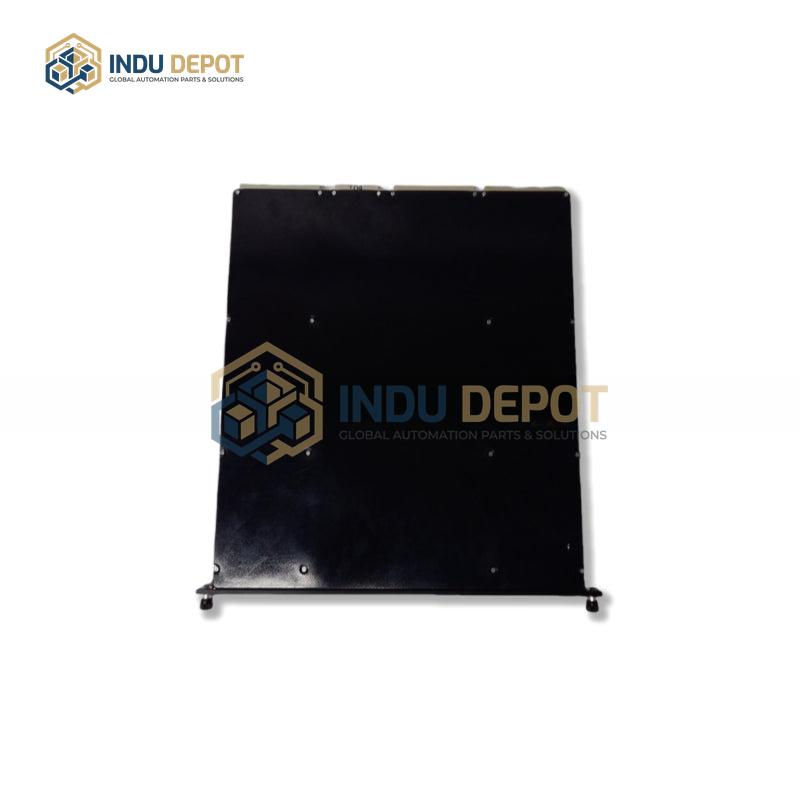

Invensys TRICONEX 3720 Analog Input Module

Description

The Invensys TRICONEX 3720 Analog Input Module is a specialized component designed for industrial automation and safety instrumented systems (SIS). As a core part of the Triconex SIS, it performs critical control and monitoring tasks to ensure high system reliability and safety. Its key design feature is Triple Modular Redundancy (TMR), which includes three independent channels that process input signals via a 2-out-of-3 voting mechanism. This design ensures the module can operate normally even if one channel fails, maintaining uninterrupted system performance.

The module supports multiple analog input ranges, including 0-5V DC, -5 to +5V DC with ±6% tolerance, and 4-20mA, making it compatible with a wide range of industrial sensor outputs. It offers high-precision measurement capabilities to accurately collect analog signals, ensuring reliable process parameter data for the host system. With a modular design, it enables easy installation, maintenance, replacement, and upgrades, reducing system downtime. Additional specifications include a continuous weight of 1.36 kg, and overrange protection of 150 VDC / 115 VAC for 0-5V DC inputs. Ideal for high-demand industrial environments, it delivers robust, fault-tolerant performance for critical safety and control applications.
