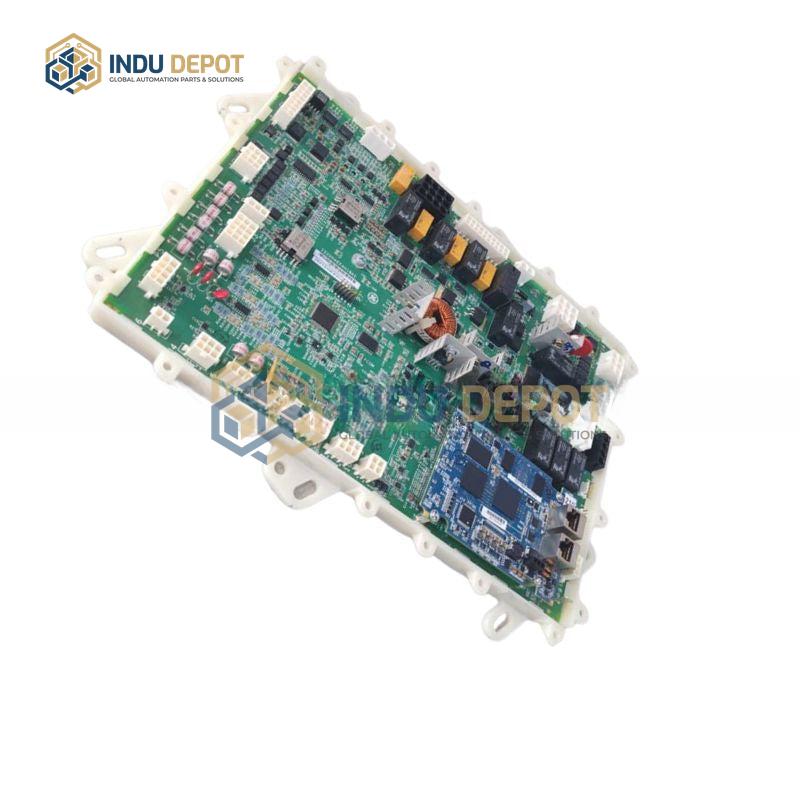

IS200SHRAH2A (IS230SNHRH2A) GE Analog I/O Board
Description
IS200SHRAH2A (IS230SNHRH2A) GE Analog I/O Board is an RST analog I/O board from General Electric, part of the Mark V series for gas turbine control systems.
| Specification | Value |
|---|---|
| Part Number | IS200SHRAH2A |
| Manufacturer | General Electric |
| Product Type | Analog I/O Board |
| Series | Mark V |
| Country of Origin | United States |
Key Features:
- Scales and conditions a wide range of analog signals from terminal boards on I/O cores R1, R2, and R3
- Supports multiple signal types including LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs/outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator/line signals
- Integrates with other system boards via 3PL connector (for signal transfer to STCA board) and JE connector (for generator/line signal exchange with TCQC board)
- Specifically conditions 4-20 mA input signals such as compressor stall detection and fuel flow pressure signals
Applications:
- Gas turbine control systems
- Industrial power generation control systems
Related Models:
- IS200HSLAH2A
- IS200TRPAH2AHE
- IS230SNHRH2A
