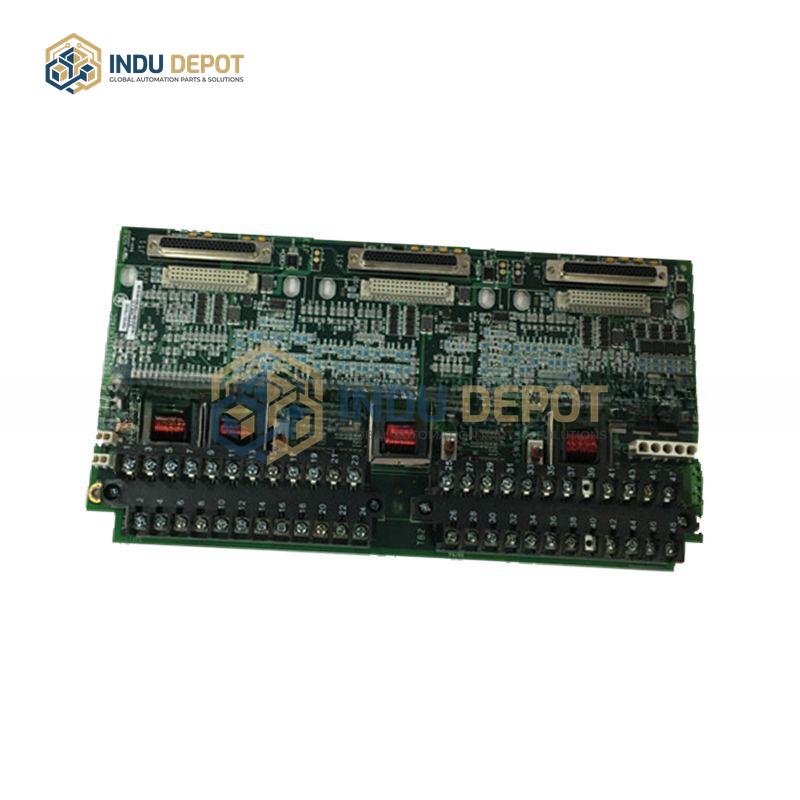

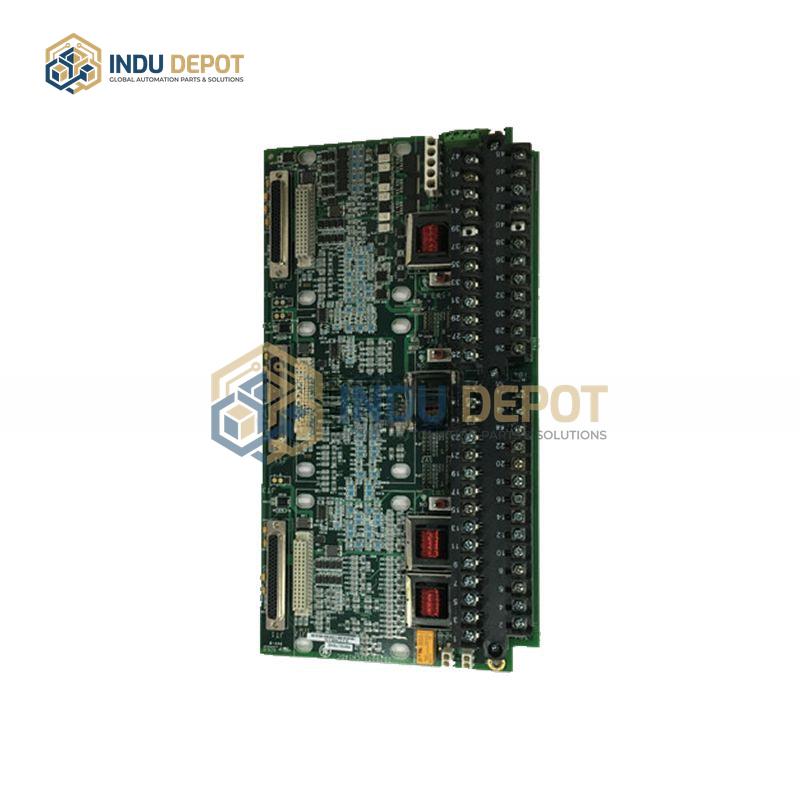

IS200TSVCH1ADC by GE Servo I/O Board
Description
IS200TSVCH1ADC is a high-performance servo I/O board from GE, part of the IS200 series, designed for industrial automation systems to provide precise data collection and servo control functions with high-speed communication capabilities.
| Specification | Value |
|---|---|
| Input Voltage | ±5V DC / ±15V DC, ±10% voltage fluctuation tolerance |
| Analog Input Channels | 4-8 channels, supports 0-10V DC or 4-20mA signals |
| Digital Input Channels | 8-16 channels, optically isolated, NPN/PNP compatible |
| Analog Output Channels | 2-4 channels, outputs 0-10V DC or 4-20mA signals |
| Digital Output Channels | 4-8 channels, open collector output, maximum load current 1A |
| Isolation Rating | 2500Vrms for 1 minute, compliant with IEC 61010-1 standard |
| Operating Environment | 0 to 60 degrees Celsius, 10%-90% humidity (no condensation) |
| Communication Interface | Compatible with GE Mark VIe bus, supports high-speed data interaction with main controllers |
| Form Factor | Standard 3U rack-mount board, fits Mark VIe control cabinets |
Key Features:
- High-precision signal processing for accurate servo control and data collection
- Standardized interface design for easy installation, replacement, and maintenance
- Wide voltage tolerance and rugged construction for harsh industrial environments
- High-speed bus communication ensures real-time transmission of control commands and feedback signals
Applications:
- Power generation equipment control, including gas turbine, steam turbine, and wind turbine servo systems
- Industrial motor control for large asynchronous and synchronous motors in steel and cement production
- Precision manufacturing equipment, such as CNC machine tools and robot workstation servo drive systems
- Heavy machinery control for cranes, metallurgical equipment, and mining machinery
Related Models:
- IS200TSVCH1A
- IS200TSVCH1ADC S1CX01H-02
- IS200PSVOH1A
