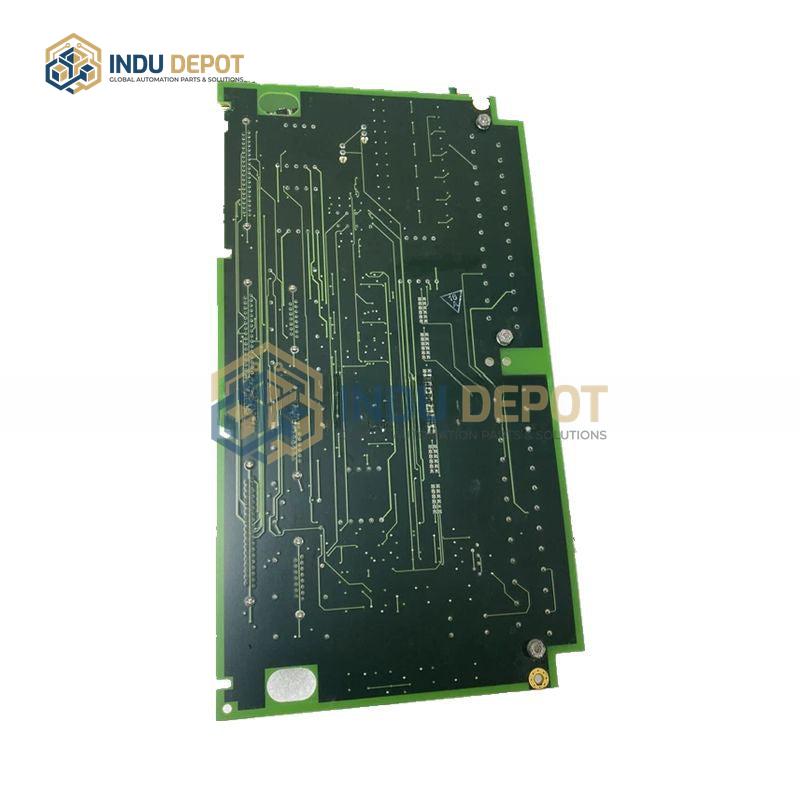

IS200TSVOH1BBB GE Turbine Control Board for Mark VI
Description
IS200TSVOH1BBB GE Turbine Control Board is a TSVO servo valve terminal board designed for the GE Mark VI turbine control system, used to connect three-coil servo actuators.
| Specification | Value |
|---|---|
| Part Number | IS200TSVOH1BBB |
| Product Type | I/O Board |
| Manufacturer | GE Boards & Turbine Control |
| Series | Mark VI IS200 |
| Origin | United States |
| Weight | 2.00 pounds |
| Supported Input/Output Signals | 0 to +/-50V DC analog, AC signals below 24VAC, 4 to 20mA current loop |
Key Features:
- Equipped with six d-shell connectors, two terminal blocks, and several vertical plugs
- Integrates four transformers, transistors, relays, integrated circuits, resistors, and capacitors
- Includes six jumper switches, each with six configurable settings
- Notched long edges and factory-drilled corners for secure installation
- Surface components feature reference marks for easy identification and maintenance
Applications:
- GE Mark VI Speedtronic turbine control systems
- Connection and signal management for three-coil servo actuators in gas and steam turbine setups
Related Models:
- IS200VSVOH1B
- IS200TSVOH1AAA
- IS200TSVOH1CCC
