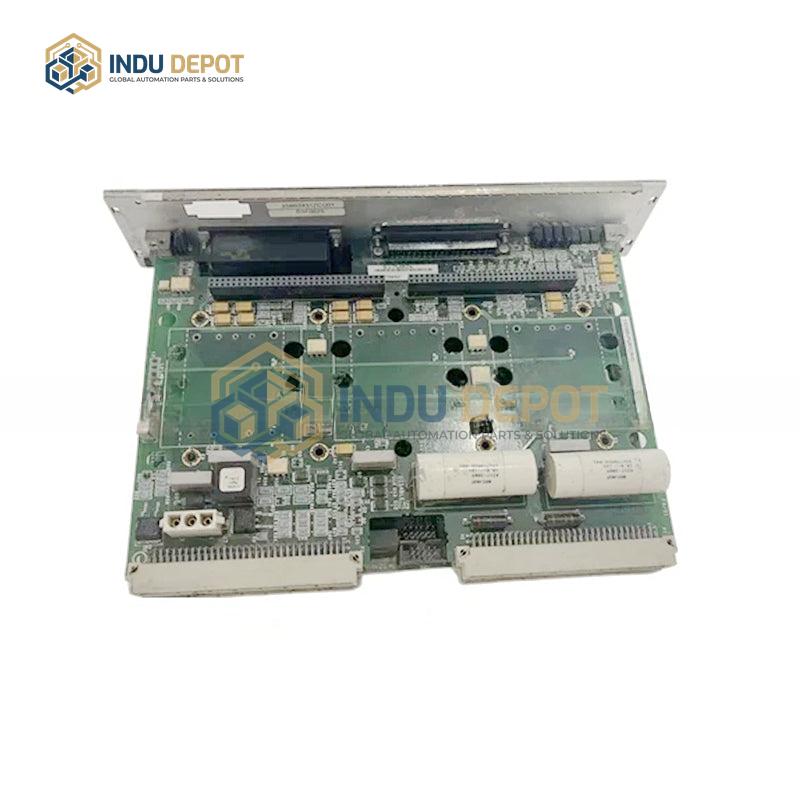

IS200VPWRH1AHD | GE Fanuc | Analog Measurement

Description

IS200VPWRH1AHD is a GE Fanuc analog measurement module designed for industrial data acquisition and monitoring. It features 16 independent single-ended input channels, each configurable to one of three measurement ranges; in the 4 to 20 mA range, it delivers a high resolution of 4 uA, enabling precise detection of small signal changes. Each channel supports high and low alarm functions with user-set thresholds, and enhanced range capabilities allow detection of abnormal input currents such as open-circuit faults. Integrated status LEDs provide real-time visibility of power, communication, and individual channel status to facilitate rapid troubleshooting. The module incorporates robust electrical isolation, with 250 VAC continuous or 1500 VAC 1-minute inter-channel isolation voltage to prevent signal interference. It operates on 5 VDC bus power with a low 120 mA current draw, and requires an external +24 VDC power supply of at least 65 mA. Built for harsh industrial environments, it meets electromagnetic compatibility standards, and performs reliably under conditions of strong vibration, 5% to 95% non-condensing humidity, and a temperature range of -10 degrees Celsius to 55 degrees Celsius. With a 6 ms standard update rate and sequential active channel scanning, it ensures real-time data processing, and supports full-range analog value adjustment via factory calibration to optimize measurement accuracy. Ideal for applications such as production line equipment status monitoring and smart factory energy management systems, it collects analog signals from sensors and transmits data for coordinated control.
