IS200VTURH1BAC GE Terminal Turbine Board
Description

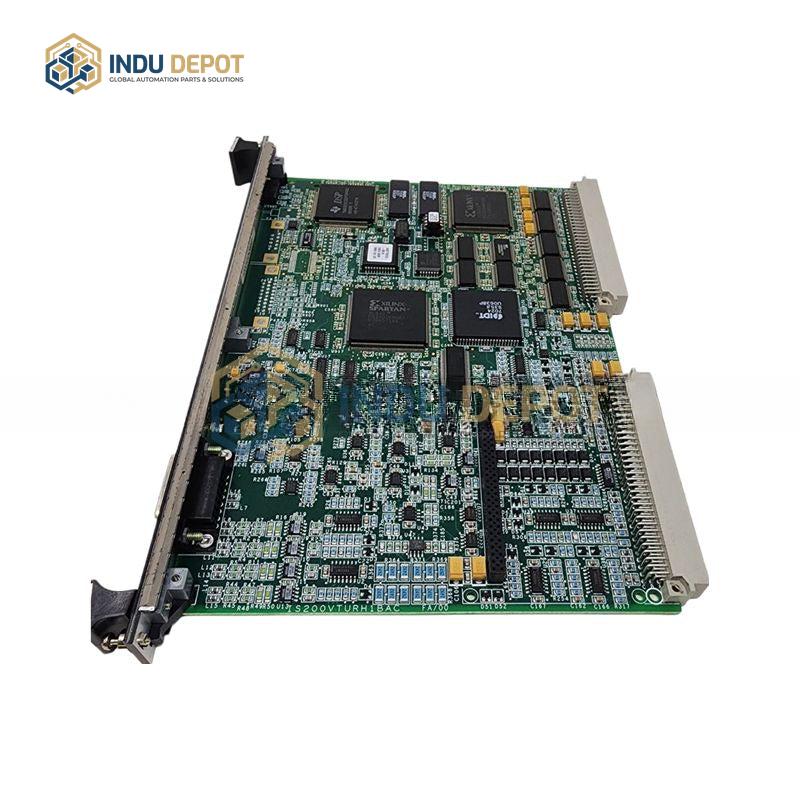

IS200VTURH1BAC GE Terminal Turbine Board is an RST analog I/O board manufactured by General Electric, part of the Mark V series for gas turbine control systems. It scales and conditions a wide range of analog signals from terminal boards installed on I/O cores R1, R2, and R3, supporting critical turbine monitoring and control functions.
| Specification | Value |
|---|---|
| Product Type | Analog I/O Board |
| Series | Mark V |
| Operating Voltage | 24V DC |
| Input Voltage Range | 24V DC (wide voltage) |
| Maximum Current | Approximately 2A |
| Operating Temperature Range | -40 to 85 degrees Celsius |
Key Features:
- Multi-functional monitoring of critical turbine parameters including speed, temperature, pressure, vibration, shaft voltage, and shaft current
- High-speed response for high-frequency applications, enabling rapid reaction to emergency conditions like overspeed and overcurrent
- Compatible with Mark VI TMR systems and suitable for multiple turbine controller models; supports triple modular redundancy or simplex applications
- Scales and conditions diverse signals including LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA I/O, vibration inputs, and generator/line signals
- Supports automatic generator synchronization and main breaker closure; drives three trip solenoids via TRPx boards and accepts up to eight flame detectors
Applications:
- Gas turbine and steam turbine control systems in power plants
- Integrated automation systems for large-scale power generation facilities
