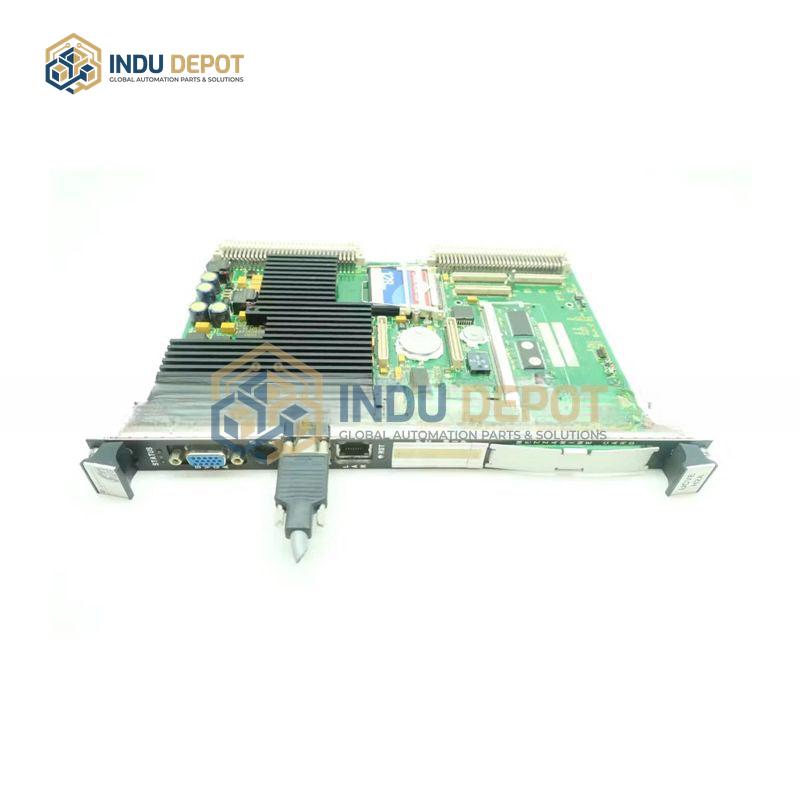

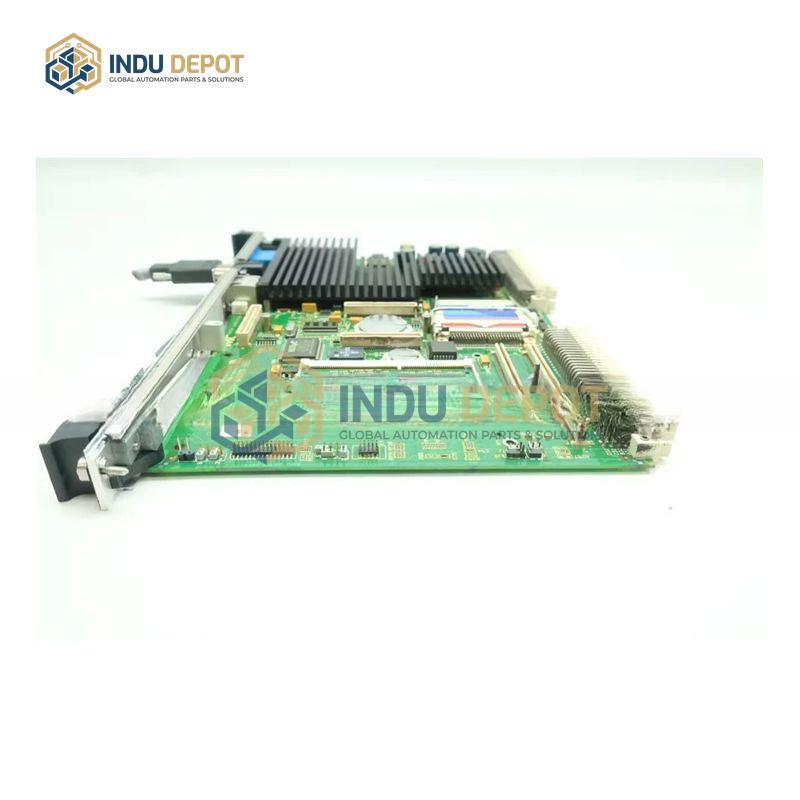

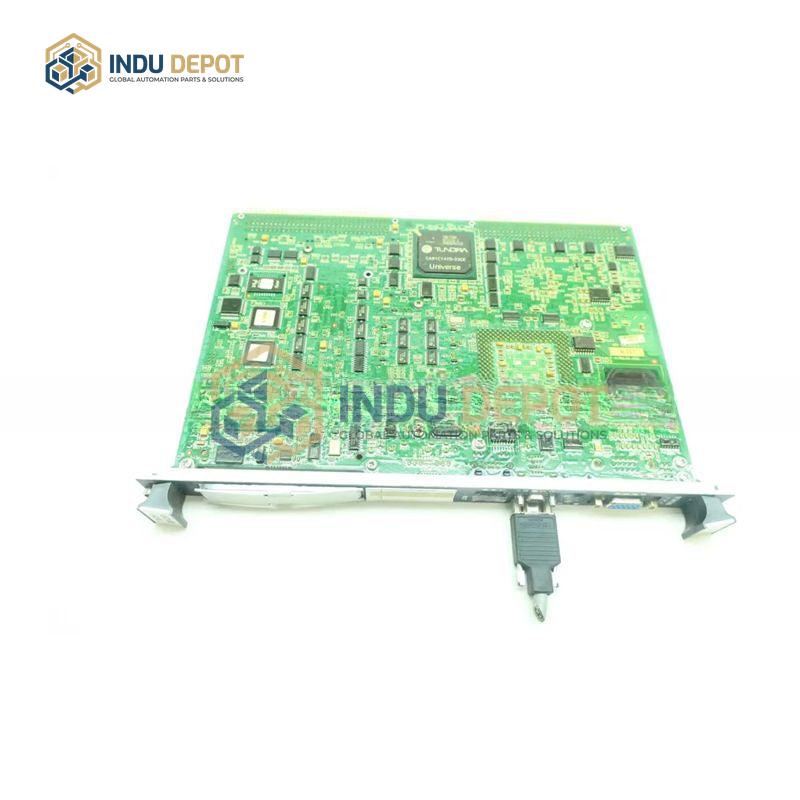

IS215UCVEH2AF GE Mk VI VME Controller Board
Description
IS215UCVEH2AF GE Mk VI VME Controller Board is a high-performance VME (Versa Module Eurocard) single-board computer part of GE’s Mark VI Speedtronic control system, designed for complex industrial automation and process control applications.
| Specification | Value |
|---|---|
| Processor | 300 MHz Intel Celeron / 133 MHz Pentium (varies by batch); Pentium M up to 1.8 GHz (some configurations) |
| Memory | 32 MB DRAM, supports up to 128 MB; up to 1.5 GB DDR SDRAM (some configurations) |
| Storage | 128 KB L2 cache; 16 MB or 128 MB flash module support; 8K battery-backed SRAM (NVRAM); up to 1 GB CompactFlash (some configurations) |
| Communication Interfaces | Ethernet port, COM port, RS-232C, Modbus, Profibus-DP master (1-3 ports); dual gigabit Ethernet (some configurations); RS485, TCP/IP |
| Operating Temperature Range | -30 to 65 degrees Celsius; -20 to 70 degrees Celsius (some configurations) |
| Dimensions | Approximately 8.6 cm x 16.2 cm; 233 mm x 160 mm (some configurations) |
| Weight | 0.6 – 2 pounds (0.27 – 0.91 kg) |
Key Features:
- High performance and reliability with industrial-grade components for stable operation in harsh environments
- Dual-sided board design with front-panel LED status indicators and recessed reset button for easy condition monitoring
- Supports multiple industrial standard communication protocols for seamless system integration
- Modular VME bus structure for compatibility with other I/O boards and system expansion
- Equipped with PCI-X 66 MHz PMC expansion slot for additional functionality in some configurations
- 24 programmable discrete output channels and high-resolution analog I/O options in some configurations
Applications:
- Power generation facilities including power plants and substations
- Oil and gas industry operations such as refineries and chemical production plants
- Pulp and paper manufacturing processes
- Metallurgy and steel production systems
- General industrial automation and assembly lines
- Turbine control and management systems
