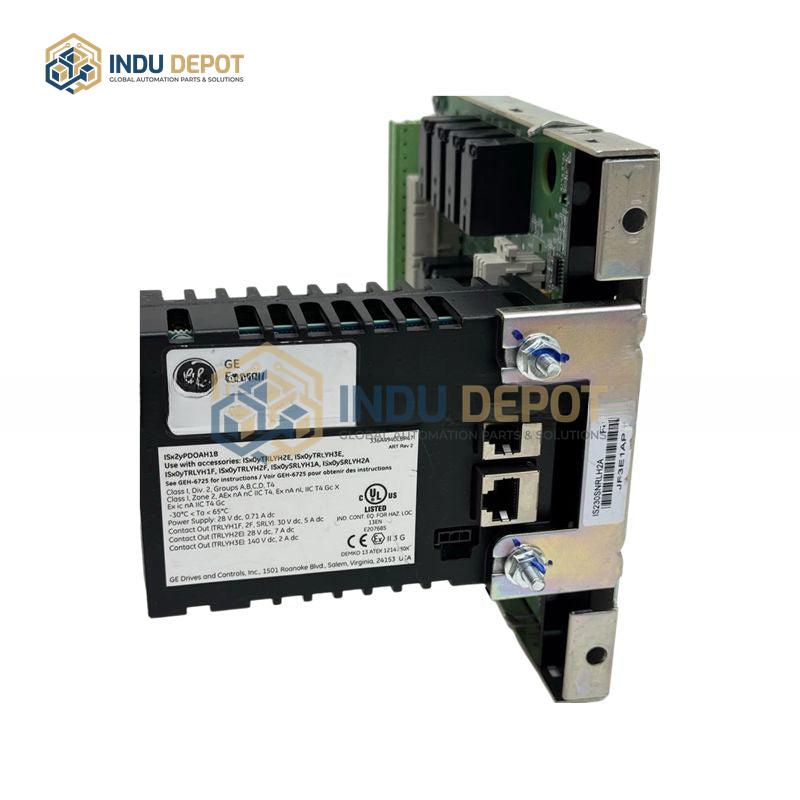

IS220PTCCH2BB GE Mark VIe Thermocouple Input Module
Description
IS220PTCCH2BB GE Mark VIe Thermocouple Input Module is a thermocouple input module from GE’s Mark VIe series, designed to seamlessly integrate with Mark VIe distributed I/O systems for accurate thermocouple data collection and processing.
| Specification | Value |
|---|---|
| Part Number | IS220PTCCH2BB |
| Manufacturer | General Electric |
| Series | Mark VIe |
| Product Type | Thermocouple Input Module |
| Supported Thermocouple Types | E, J, K, S, T, and mV inputs |
| Input Range | -8 mV to +45 mV |
| Maximum Thermocouple Inputs | 12 |
| ADC Resolution | 16-bit |
| Sampling Rate | Up to 120 Hz |
| Manufacturing Country | USA |
Key Features:
- Supports multiple I/O rack configurations, including up to 15 single-width modules, 8 double-width modules, or a mixed combination (power capacity may limit module count)
- Integrates a universal processor board for core processing and a dedicated acquisition board for thermocouple data collection
- Visual diagnostics via LED indicators and local diagnostic serial communication via infrared port for troubleshooting
- Hardware and firmware filters minimize signal noise and ensure data integrity
- Comprehensive fault detection with upper/lower limit checks and continuous monitoring of thermocouple, cold junction, calibration voltage, and zero readings
- Connectivity via dual RJ45 Ethernet connectors, 3-pin power input, and DC-37 pin output connector for terminal board integration
Applications:
- Gas and steam turbine control systems
- Industrial temperature monitoring and data acquisition in power generation, oil and gas, and chemical processing industries
- Distributed I/O systems requiring high-accuracy thermocouple signal conversion
