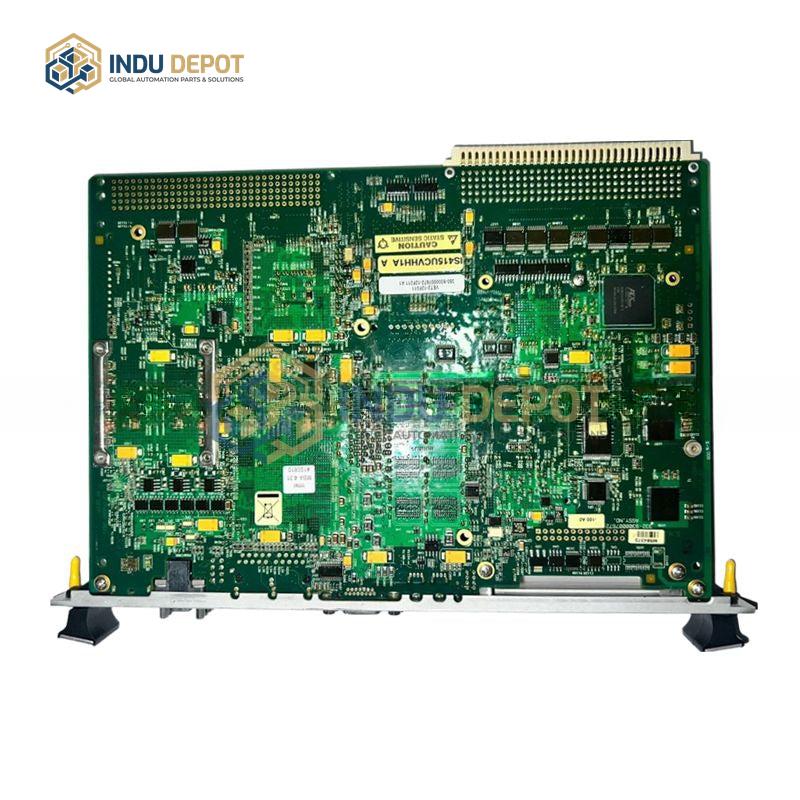

IS400UCLIH1A GE Application Control Layer Module for Mark VIe Systems
Description
IS400UCLIH1A is an RST analog I/O board produced by General Electric, designed for gas turbine control systems as part of the Mark V series.
| Specification | Value |
|---|---|
| Part Number | IS400UCLIH1A |
| Manufacturer | General Electric |
| Product Type | Analog I/O Board |
| Series | Mark V |
| Country of Origin | United States |
Key Features:
- Scales and conditions a wide range of analog signals from terminal boards mounted on I/O cores R1, R2, and R3
- Supports multiple signal types including LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals
- Uses 3PL connector to send signals to STCA boards, and JE connector to transmit and receive generator and line signals with TCQC boards
- Specifically conditions 4-20 mA input signals such as compressor stall detection and fuel flow pressure signals
Applications:
- Gas turbine control systems
- Industrial power generation control systems
Related Models:
- IS215ACLEH1AB (Mark VI Series)
- IS415UCVHH1A (Mark VIe Series)
- IS200TBAIH1CCC (Mark VI Series)
- IS420UCSCH1A (Mark VIe Series)
