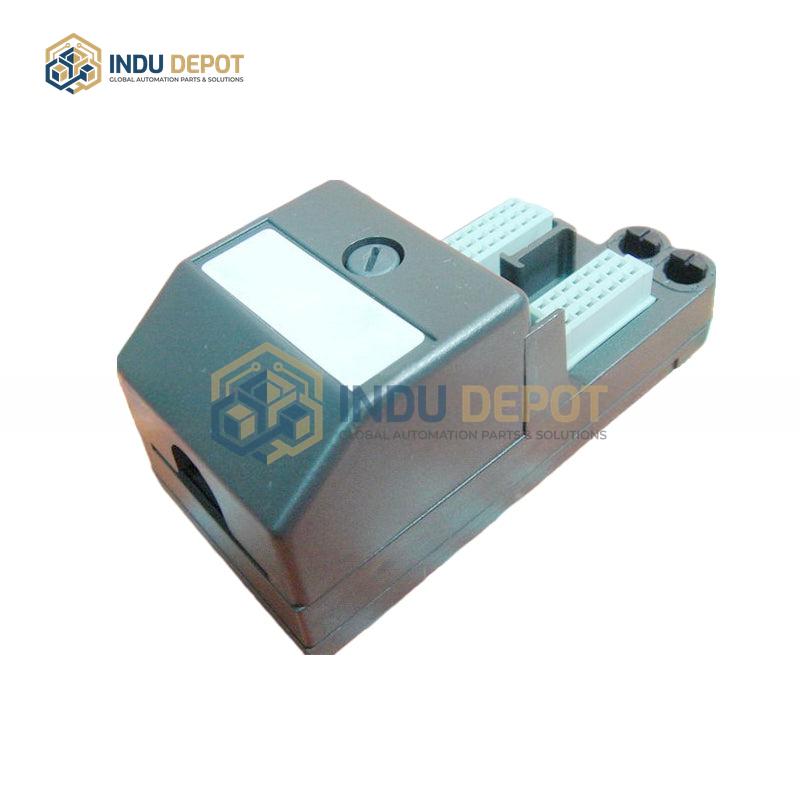

KJ4001X1-CF1 | Emerson | Mass Terminal Block 24 Pin

Description

The KJ4001X1-CF1 is a 24 Pin Mass Terminal Block designed for use with Emerson automation systems. As part of the Emerson terminal block lineup, it offers strong compatibility and adaptability for industrial control setups, with design features aligned to support seamless integration with related system components. Based on comparable models in the same series, this terminal block supports standard 3U rack-mount installation, fitting perfectly into Emerson DeltaV system standard cabinets for streamlined system assembly. It has a standardized footprint measuring 100mm wide x 132mm high x 220mm deep, ensuring it meets industrial module size requirements for easy integration.

Powered via the DeltaV system backplane bus, it features dual DC5V/24V power supply with a maximum power consumption of 12W, ensuring stable operation. Key visual indicators include per-channel independent run lights, fault lights, module power lights, and communication status lights, providing clear real-time feedback on operational status. It uses spring-type terminal wiring to enable fast, tool-free connection and disconnection, reducing installation and maintenance time. For harsh industrial environments, it offers a wide operating temperature range of -40 degrees Celsius to 70 degrees Celsius, storage temperature range of -40 degrees Celsius to 85 degrees Celsius, and operates reliably in 5% to 95% humidity without condensation. The module body has an IP20 protection rating, while the front panel has an IP40 rating, with anti-interference performance meeting EN 61000-6-2 and EN 61000-6-4 standards.
