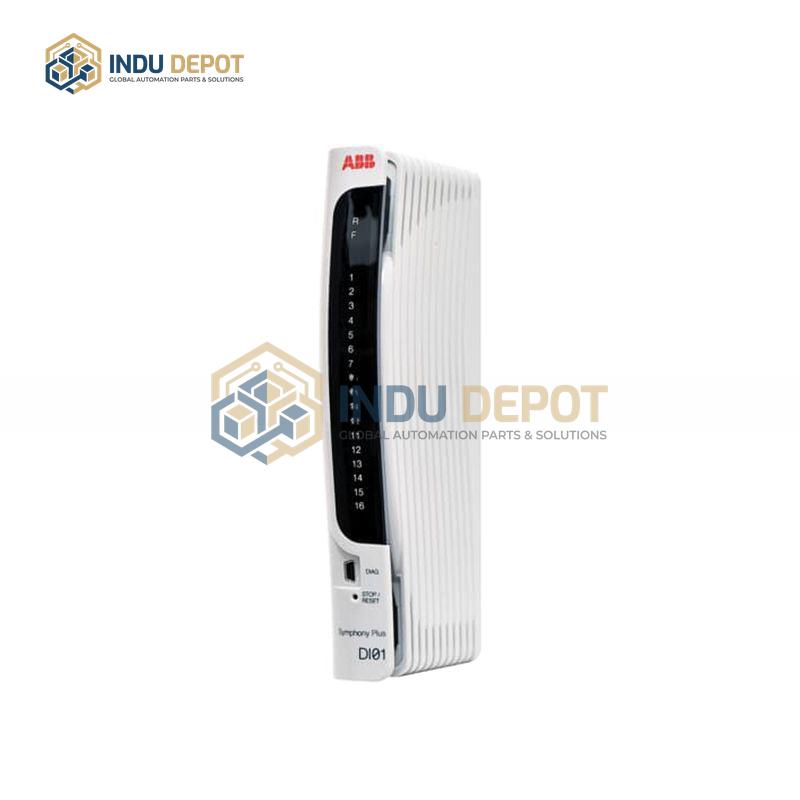

Low Voltage Digital Input Module ABB DI01
Description
ABB DI01 Low Voltage Digital Input Module is an industrial-grade discrete input module belonging to ABB’s compact I/O module series. It is designed to collect discrete field signals such as sensor on/off signals, button switch signals, and limit switch signals, then transmit them stably to ABB PLCs (like AC500 series, AC800M series) or distributed control systems (DCS) to provide accurate field signal support for industrial automation control.
| Specification | Value |
|---|---|
| Product Type | Industrial-grade discrete input module, DC powered |
| Signal Type | Passive dry contact (contact on/off) or active wet contact (DC 24V) |
| Channel Count | 8 channels / 16 channels (optional, independently isolated) |
| Rated Input Voltage | DC 24V, operating range DC 18V to 30V |
| Input Current per Channel | ≤5mA (active signal state) |
| Signal Response Time | ≤1ms |
| Isolation Method | Optical isolation between channels, isolation voltage ≥500V RMS, compliant with IEC 61131-2 |
| Module Power Supply | DC 24V (shared with input or independent, optional), power consumption ≤3W (no load) |
| Communication Interfaces | Supports ABB standard industrial buses: PROFIBUS DP, EtherNet/IP, Modbus TCP |
Key Features:
- High anti-interference performance suitable for harsh industrial environments
- Wide operating voltage range compatible with common industrial power supplies
- Independent channel isolation prevents cross-signal interference
- Fast signal response time for high-frequency signal collection
- Deep compatibility with ABB automation systems
Applications:
- Automobile manufacturing, such as collecting limit switch signals for robotic arms in welding production lines
- Food and beverage processing, such as receiving photoelectric sensor signals for material presence detection in packaging equipment
- Chemical industry, such as monitoring valve and pump on/off status in process control systems
