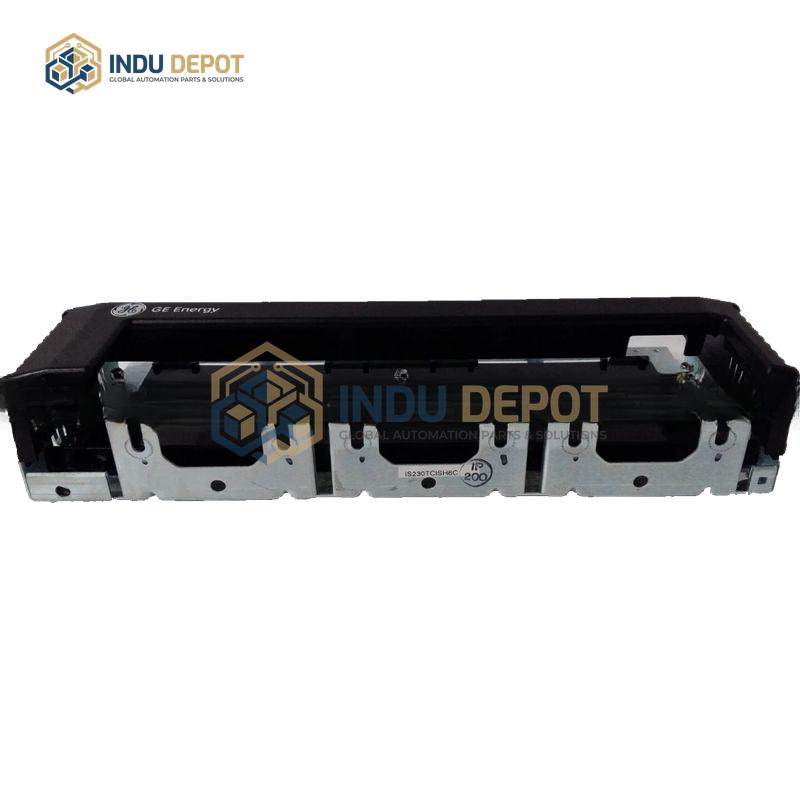

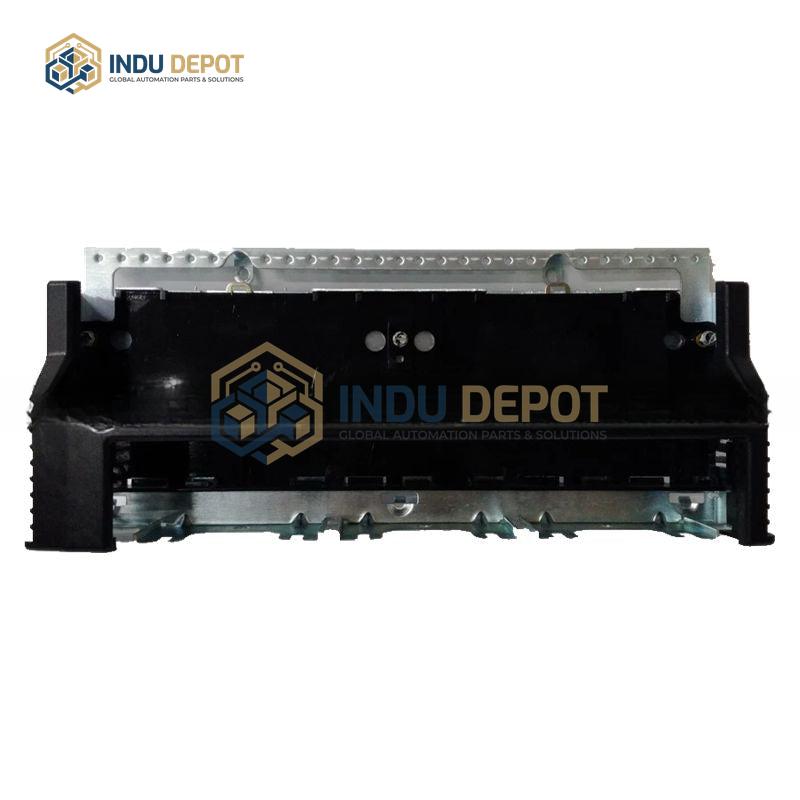

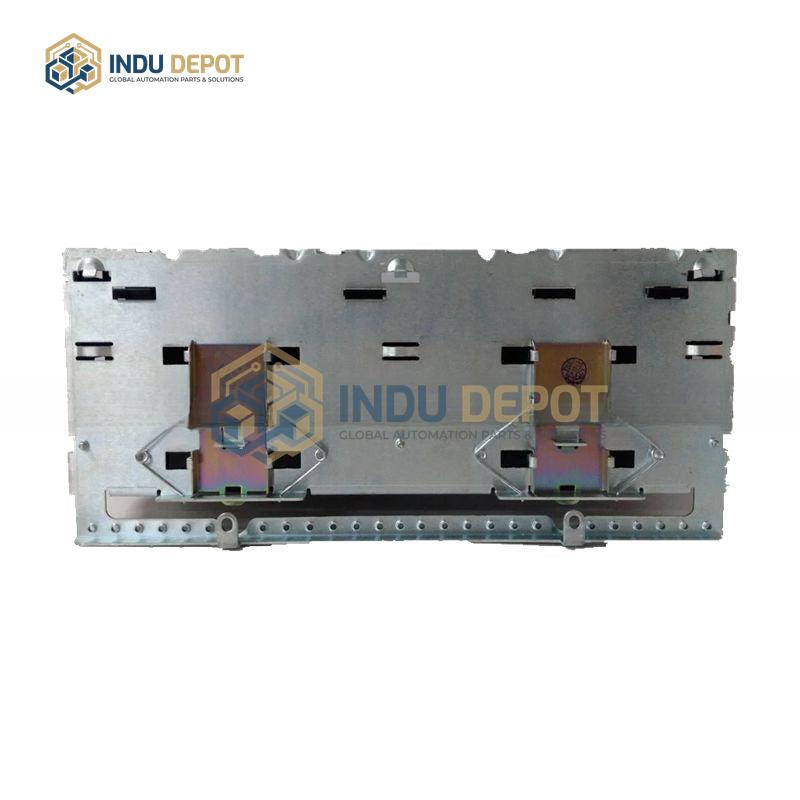

Mark VIe Turbine Controller Module GE IS230TCISH6C
Description
GE IS230TCISH6C Mark VIe Turbine Controller Module is a DIN rail I/O module designed and manufactured by General Electric, part of the Mark VIe distributed control system series, intended for turbine and power plant control systems.
| Specification | Value |
|---|---|
| Operating Temperature Range | -30 to 65 degrees Celsius |
| Connection Type | Euro-style terminals |
| System Configuration Support | Simplex, dual, or TMR (Triple Modular Redundancy) |
| On-board Processor OS | QNX operating system |
Key Features:
- Composed of an I/O package mounted on a terminal board; I/O package includes a local processor and data acquisition board, terminal board includes field wiring terminals and passive circuits
- Passive circuits can be disconnected from field wiring independently if faulty, enabling maintenance without disrupting field connections
- Supports both standalone and clustered distributed deployment
- Compatible with other Mark VIe series modules for handling 4-20mA current loops and LVDT signals
Applications:
- Automation control for gas turbine systems
- Power plant control systems as an interface between PLCs and field devices
Related Models:
- IS230STAOH2A
- IS230STCIH6A
- IS230TNSVH3A
- IS230PCAAH1A
