Modicon BMXXBP1002 Rack Schneider

Description

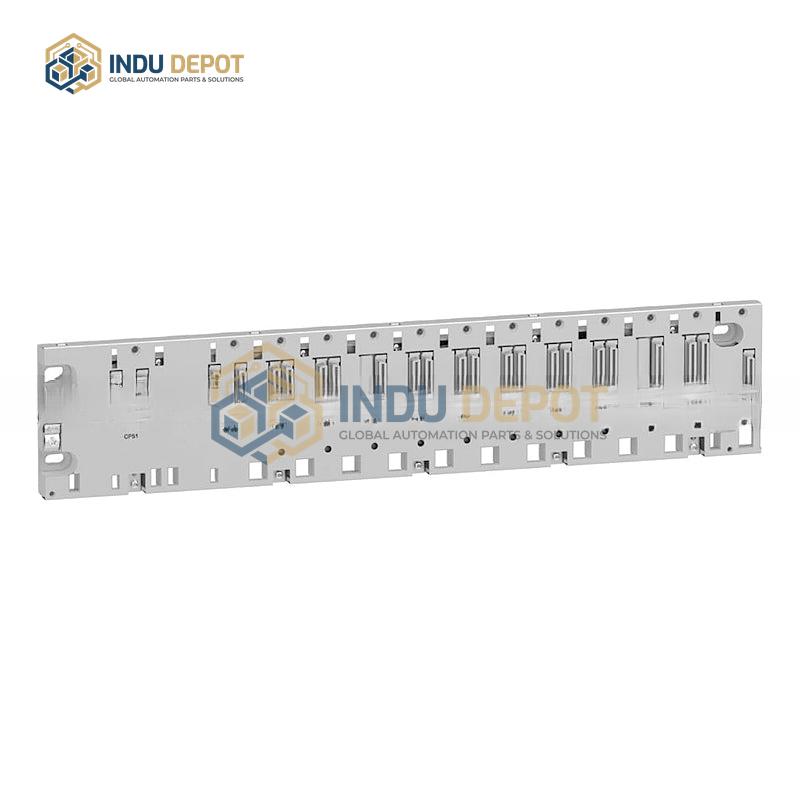

The Modicon BMXXBP1002 Rack is a component of the Schneider Modicon X80 product series, classified as a 10-slot dual-power Ethernet backplane. It supports both standard and redundant power supplies, providing flexible power configuration for industrial control systems. The rack features 8 bus X + Ethernet2 Bus X slots, designed to accommodate a range of modules including special application modules, I/O modules, BMXCPS4002 power supplies, BMX processors, and BME processors.

Key electrical specifications include a power consumption of 251 mW at 3.3V DC and 3.9W at 24V DC, with current draw of 76 mA at 3.3V DC and 162 mA at 24V DC. For installation, it uses 4 M6 screws for mounting to a backplane, and 4 screws with a diameter of 4.32 to 6.35 mm for panel mounting. A single XBE connector is provided for connecting expansion modules, enabling seamless integration of additional components into the control system. This rack is engineered to support robust, scalable industrial automation setups, suitable for applications requiring reliable power distribution and modular I/O or processor integration.
