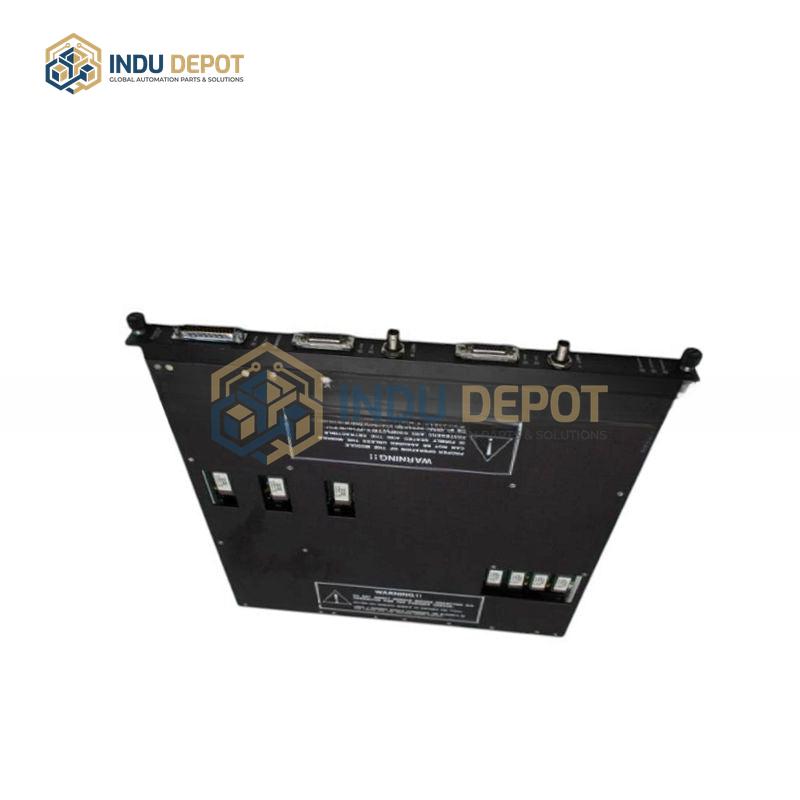

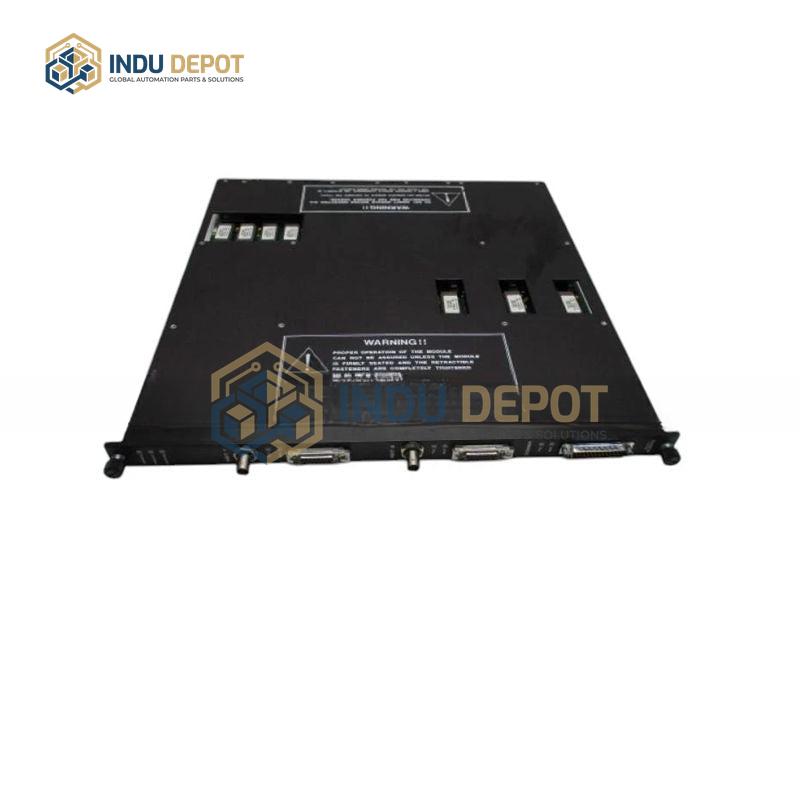

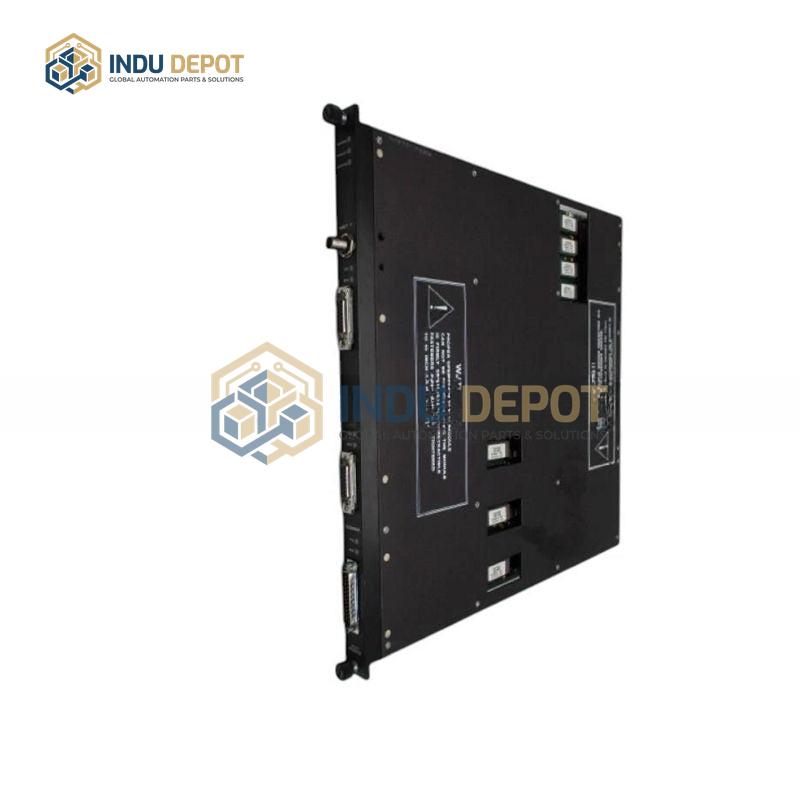

Network Communications Module Interface Triconex NCM4320

Description

The NCM4320 functions as a specialized Network Communications Module (NCM) interface within the Tricon Triple Modular Redundant (TMR) safety architecture. This module acts as the vital bridge between the Tricon controller’s internal TriBus and external communication networks, facilitating high-speed data exchange with DCS, PLC, and HMI systems. Maintaining data integrity is essential for safety-instrumented functions, so the NCM4320 employs robust electrical termination and signal conditioning to prevent reflection and packet loss. Its architecture supports the fault-tolerant requirements of SIL 3 applications, ensuring that communication failures do not interfere with the controller’s safety logic. This interface is a critical prerequisite for any plant-wide integration involving Triconex safety hardware.
