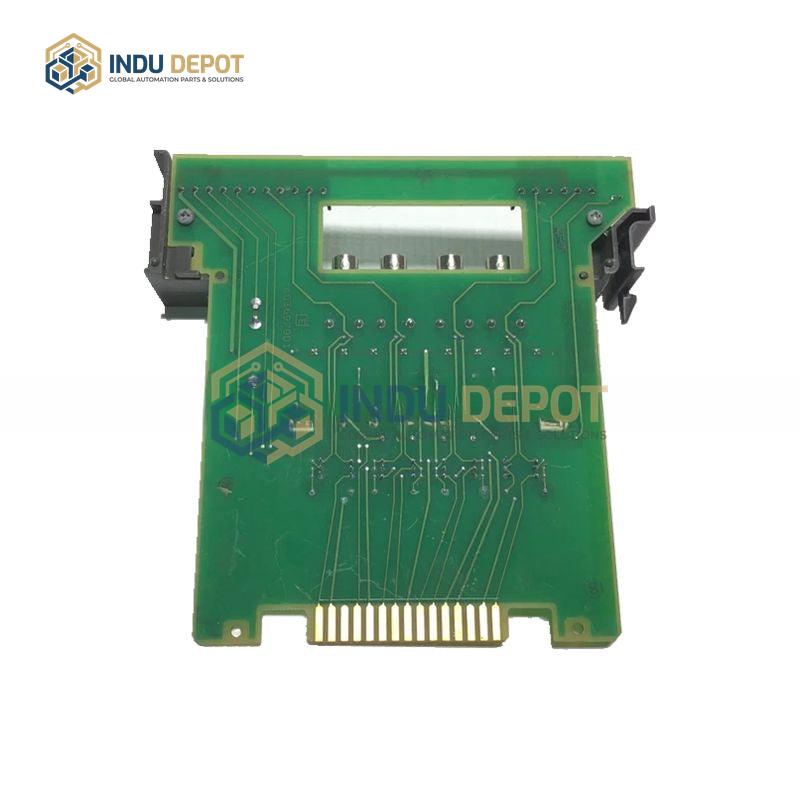

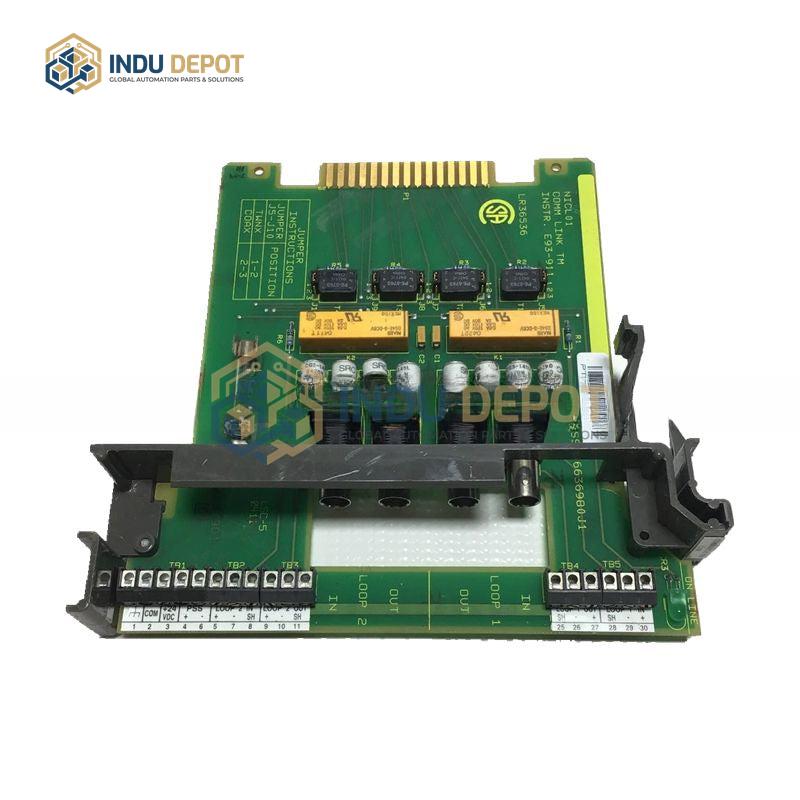

NICL 01 ABB Communication Termination Module
Description
NICL 01 ABB Communication Termination Module is a communication link termination module designed for ABB Bailey Infi 90 and Net 90 industrial control systems. It provides termination points for network interface slave modules or loop interface modules, enabling stable communication connections within industrial automation setups.
| Specification | Value |
|---|---|
| Product Type | Communication Termination Module |
| Compatible Systems | ABB Bailey Infi 90, ABB Bailey Net 90 |
| Supported Cables | Twisted pair, coaxial cable |
| Dimensions | 7.0 inches x 2.0 inches x 7.0 inches (17.8 cm x 5.1 cm x 17.8 cm) |
| Weight | 0 pounds 9.0 ounces (0.3 kilograms) |
Key Features:
- Provides termination points for network interface slave modules (such as INNIS01) and loop interface modules (such as INLIM03)
- Supports connection of NIS to INFI NET communication networks or LIM to plant loops via twisted pair or coaxial cable
- Allows selection of communication cable type via jumper settings
- Industrial-grade design for stable operation in harsh industrial environments
Applications:
- Power plant DCS monitoring systems
- Smart flat tempering furnace control systems
- PLC programmable conveyor control systems
- General industrial automation communication networks
Related Models:
- NTCL01
- NTCL01-A
- INNIS01
- INLIM03
