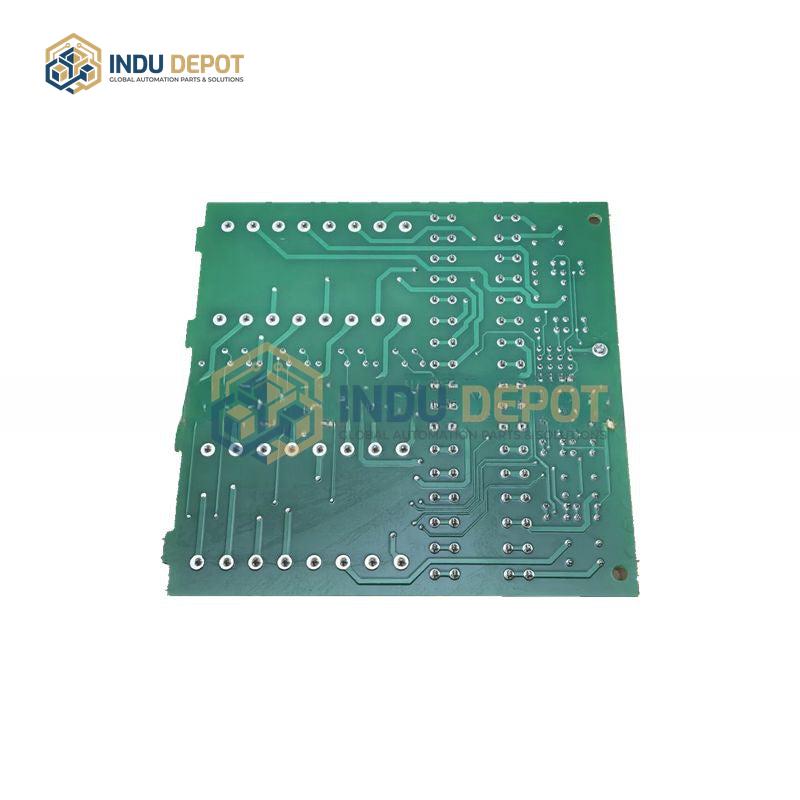

NTR002 ABB Control System Terminal Unit
Description
ABB NTR002 Control System Terminal Unit is a network terminal resistor from the ABB network component family, serving as a critical component for industrial bus systems. It provides precise impedance matching and signal integrity protection to ensure stable communication in harsh industrial environments.
| Specification | Value |
|---|---|
| Product Type | Network Terminal Resistor |
| Rated Resistance | 120 ohms, ±1% accuracy |
| Power Rating | 0.25W |
| Maximum Operating Voltage | 50V DC |
| Operating Temperature | -40 to 85 degrees Celsius |
| Storage Temperature | -55 to 125 degrees Celsius |
| Connection Method | Screw Terminal |
| Wire Gauge | 0.2 to 2.5 square millimeters |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail Mount |
| Certifications | CE, UL, cULus |
Key Features:
- Industrial-grade design for long-term stable performance
- Precise impedance matching to maintain signal integrity
- Compact size with easy DIN rail installation
- UL94 V-0 flame retardant rating for enhanced safety
- Wide wire gauge compatibility for flexible connection
Applications:
- Industrial field bus systems and communication networks
- Control panels, switchboards, and power distribution systems
- Automation projects in automotive, chemical, and power generation industries
Related Models:
- NTR001
- NTR003
- NTR004
