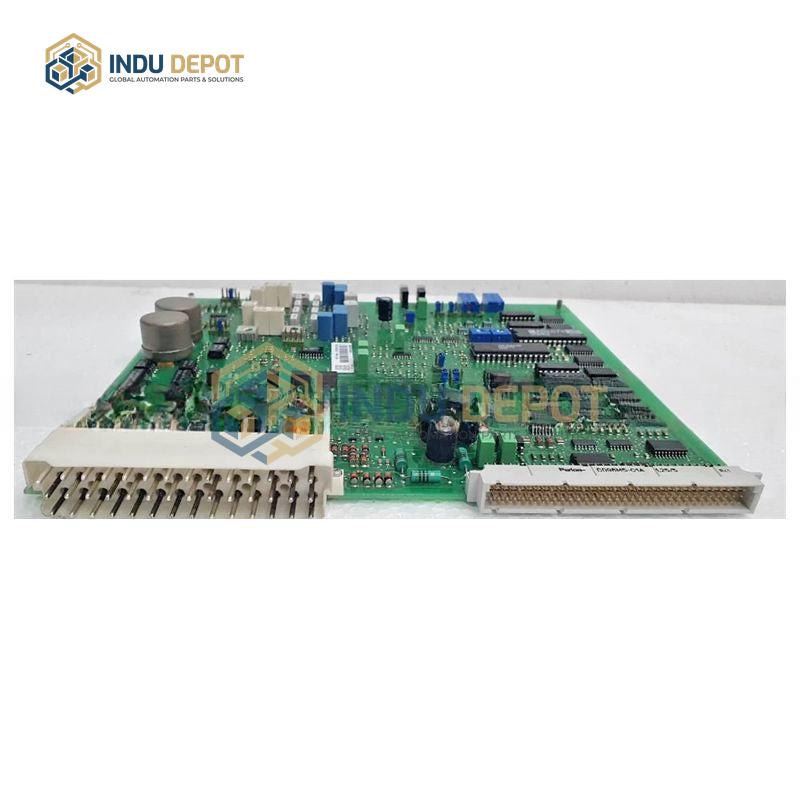

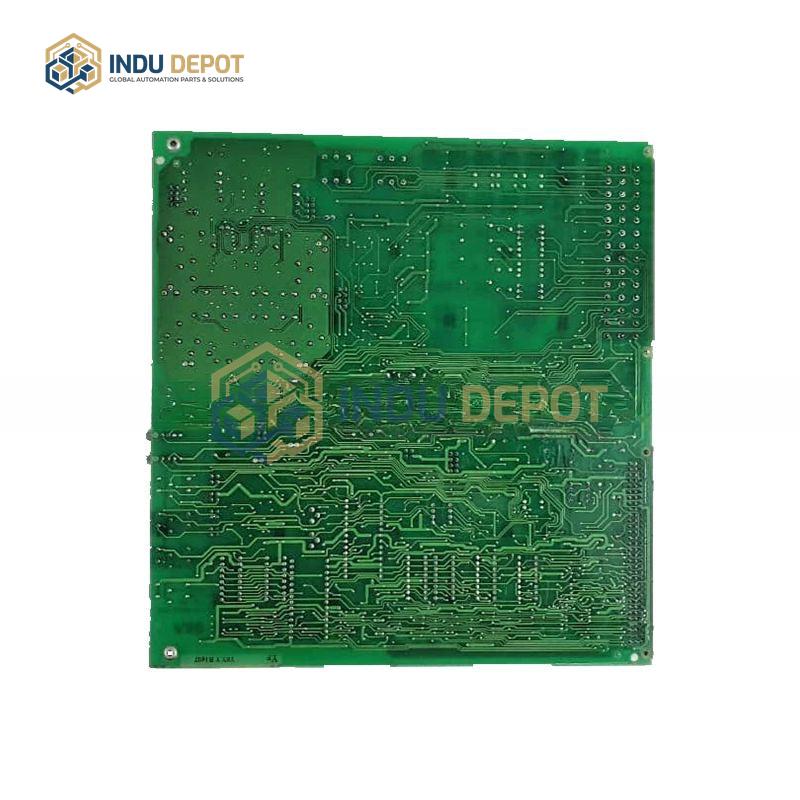

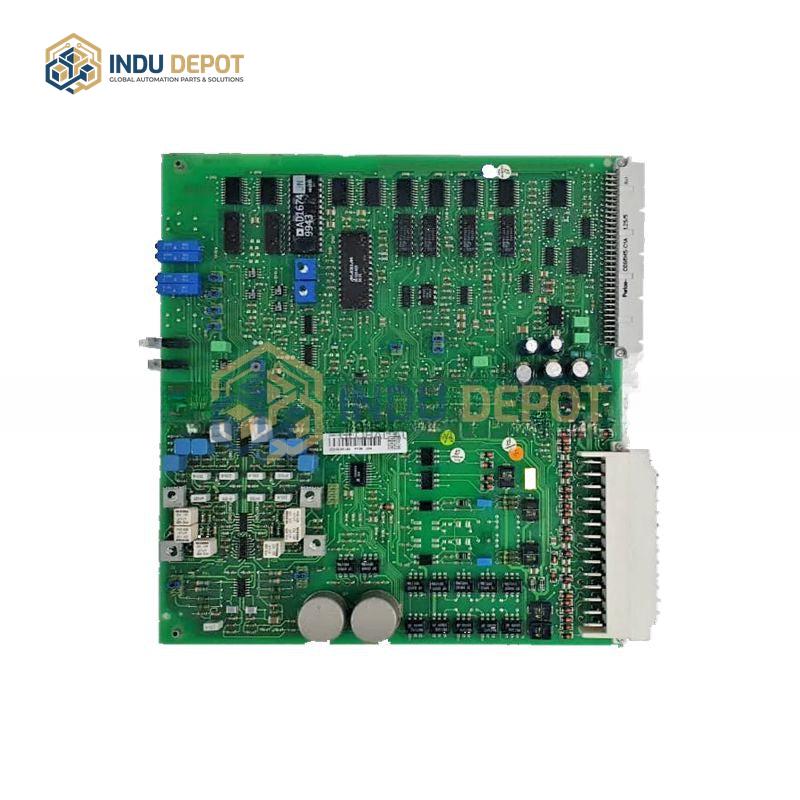

PFBK 164 3BSE000469R1 ABB Signal Card
Description
PFBK 164 3BSE000469R1 ABB Signal Card is an industrial automation signal card; no direct product details were found, so specifications and features are based on the closely related ABB PFSK164 3BSE021180R1 PROFIBUS F-Slave safety communication module, designed for ABB AC 800M High Integrity controllers.
| Specification | Value |
|---|---|
| Product Type | PROFIBUS F-Slave (PROFIsafe) Safety Communication Module |
| Compatible Controllers | ABB AC 800M High Integrity Series (PM803F, PM805F, etc.) |
| Communication Protocol | PROFIBUS DP-V1, integrated PROFIsafe profile |
| Safety Standard | IEC 61508, up to SIL 3 applications |
| Interface Type | 1 x 9-pin D-Sub female (PROFIBUS) |
| Transmission Rate | 9.6 kbps to 12 Mbps, auto-detect |
| Operating Temperature | 0 to 60 degrees Celsius |
| Power Supply | Powered via AC 800M controller backplane |
Key Features:
- Hardware-integrated PROFIsafe protocol stack with safety CRC, time stamps, and frame numbering to prevent data loss, duplication, or tampering
- Seamless integration with ABB Control Builder M software for unified configuration, programming, and diagnostics
- Comprehensive self-diagnostics for module status, communication health, and PROFIsafe connection state
- Supports 1:1 hardware redundancy for uninterrupted communication in mission-critical applications
Applications:
- Chemical and oil and gas industry for linking safety instrumented systems (SIS) to process control networks
- Power generation facilities for boiler safety protection (FSSS) and turbine emergency trip systems (ETS)
- Continuous manufacturing processes requiring high safety integrity and minimal downtime
