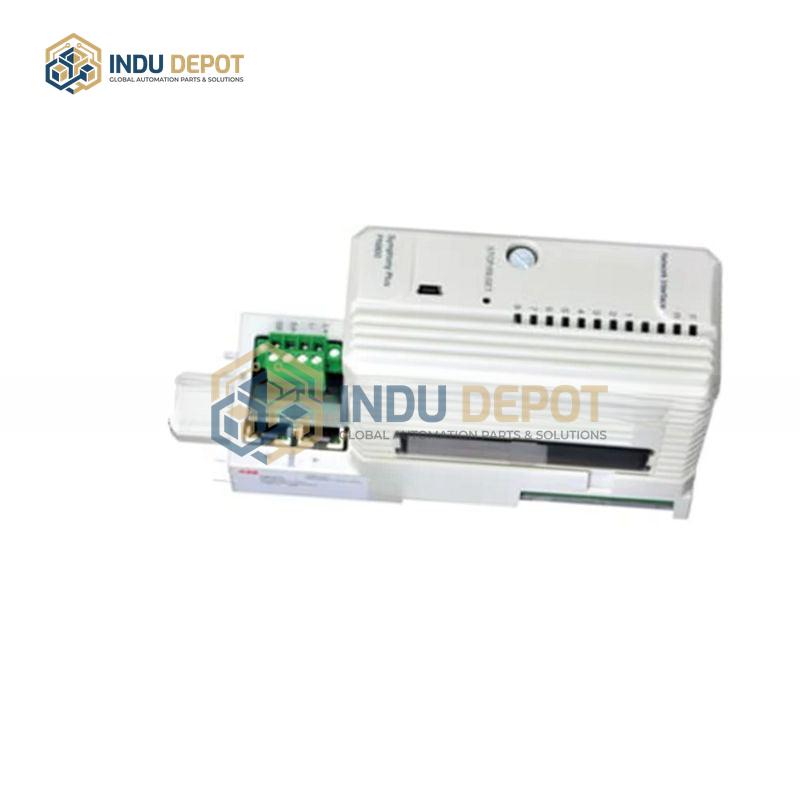

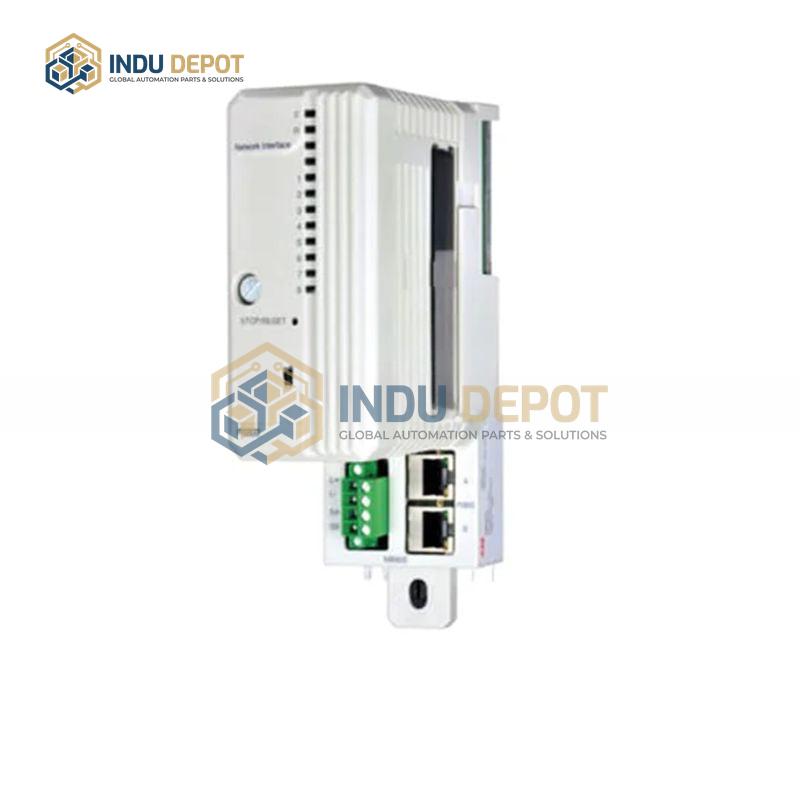

Plant Network Interface Module PNI800 ABB for Automation Systems
Description
ABB PNI800 Plant Network Interface Module is an industrial network interface module designed for harsh industrial environments, part of ABB’s Performia I/O industrial I/O series and the Symphony Plus distributed control system. It serves as a bridge between different networks and devices, enabling efficient data exchange and communication for industrial automation systems.
| Specification | Value |
|---|---|
| Rated Power | 800W |
| Rated Voltage | 380V |
| Rated Frequency | 50Hz |
| Input Voltage | 24V DC |
| Power Consumption | 5W |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Protection Rating | IP65/IP67, IP30 (cabinet mount) |
| Dimensions | 100mm x 75mm x 35mm |
| Supported Communication Protocols | EtherCAT, PROFINET, Modbus TCP, RS232, RS422, RS485, EtherNet/IP, OPC UA |
| Maximum I/O Module Expansion | 32 modules |
| Data Throughput | Up to 100Mbps per port, 200Mbps dual port concurrent |
| Time Synchronization Accuracy | 1 microsecond |
Key Features:
- Multi-protocol compatibility with built-in protocol conversion engine, supporting concurrent operation of 2 protocols with <5ms latency
- High real-time performance with high-speed data transmission, meeting time-sensitive application requirements
- Industrial-grade reliability with redundant design for dual power input and dual Ethernet ports, MTBF >500,000 hours
- Flexible deployment with DIN rail or panel mount options, and expandable serial ports via extension modules
- Built-in security features including firewall, IP/MAC address filtering, VLAN isolation, and TLS 1.3 encrypted transmission
- User-friendly design with intuitive configuration interfaces and remote diagnostic capabilities
Applications:
- Manufacturing: Production line control, robot coordination, and multi-device data integration
- Process Industries: Petroleum, chemical, and metallurgy process control and monitoring
- Energy Management: Power grid monitoring, energy optimization, and data center infrastructure control
- Building Automation: Building energy management, lighting control, and cross-system data integration
- Transportation: Rail signal control, vehicle monitoring, and infrastructure environmental monitoring
