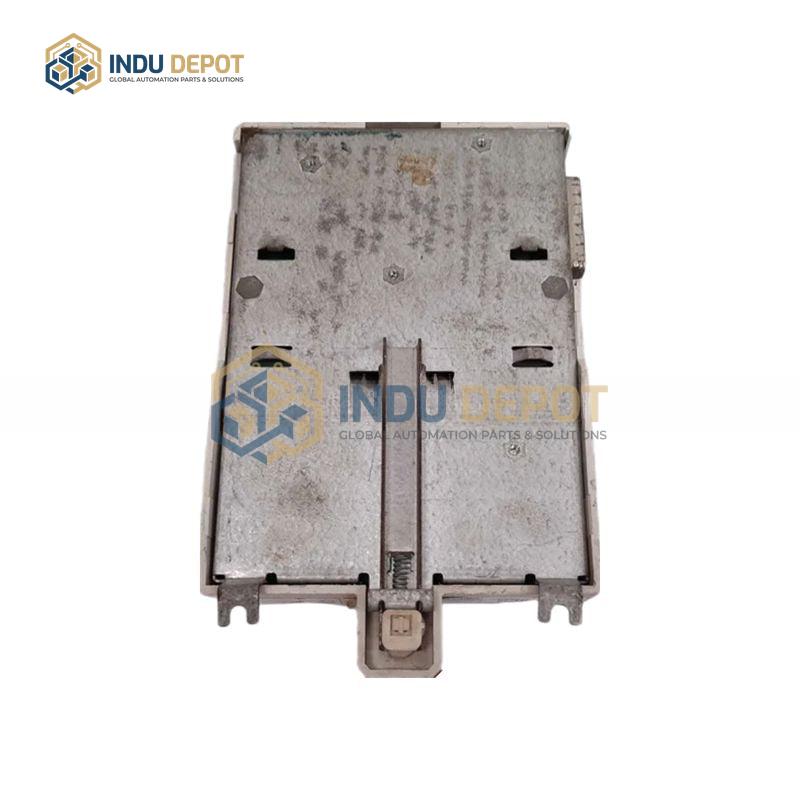

PM861K01 Base Module ABB
Description
PM861K01 Base Module is a core processor unit for the ABB AC 800M series control system, responsible for executing control logic, data collection, and communication management tasks. It features a modular design, enabling flexible installation in 19-inch racks or on DIN rails, and is ideal for medium to large industrial automation projects.
| Specification | Value |
|---|---|
| Processor | PowerPC 604e |
| Memory | 256MB to 4GB RAM (configurable) |
| Storage | 1GB to 2GB Flash (SSD optional) |
| Operating System | VxWorks / Linux 10 IoT Enterprise |
| Power Supply | 24V DC, low power consumption |
| Operating Temperature | -20 to 60 degrees Celsius |
| Protection Rating | IP20 (in cabinet) or IP65 (special protected version) |
| Dimensions | Approximately 200mm x 120mm x 45mm, 3U 19-inch rack compliant |
| Weight | 1.2kg to 2.3kg |
Key Features:
- High-performance computing for complex control algorithms in sub-millisecond cycles
- Modular and scalable design, compatible with other ABB I/O, communication, and drive modules
- Supports hot-standby redundancy for over 99.99% system availability
- Rich communication capabilities with multi-protocol support for integration with upper-level systems and third-party devices
- Compliant with IEC 61131-3, supporting multiple programming languages
- Built-in self-diagnostic functions for remote monitoring and preventive maintenance
Applications:
- Power industry, steel manufacturing, and non-ferrous metal smelting
- Petrochemical, pharmaceutical, and water treatment process control
- Automotive production lines, textile machinery, and construction equipment
