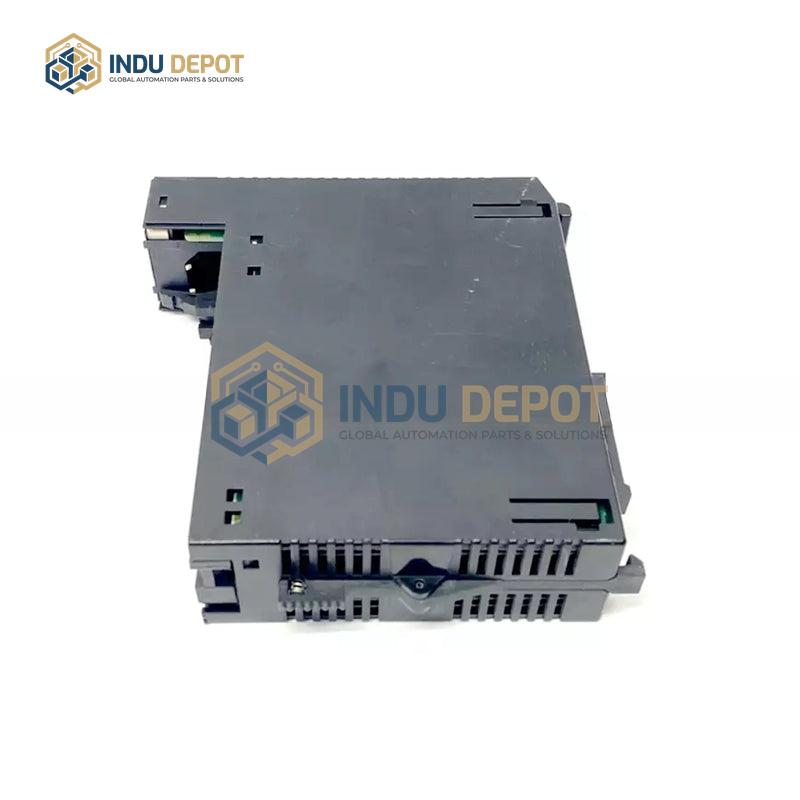

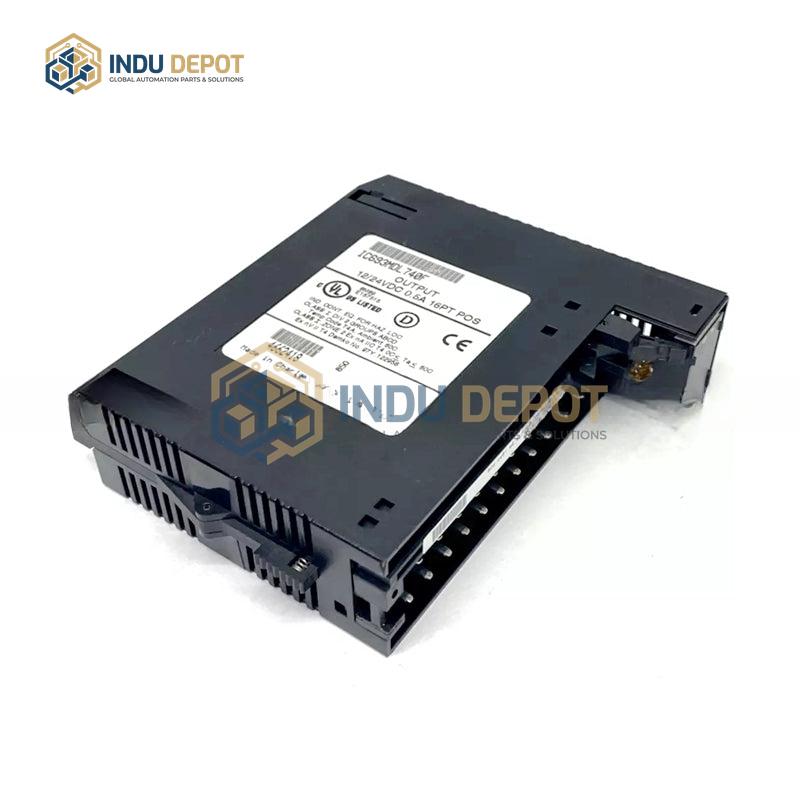

Positive Logic Output Module IC693MDL740 GE FANUC

Description

The IC693MDL740 is a positive logic output module belonging to the GE Fanuc Series 90-30 programmable logic controller (PLC) product line. It features 16 independent output channels, divided into 2 groups of 8 channels each, and uses positive logic source-type output, which supplies current to loads from the common terminal or positive power bus. The module supports a rated output voltage of 12/24 VDC, with an operating voltage range of 12 to 24 VDC (+20%, -15%).

Each channel has a rated output current of 0.5 amps, with a maximum output current of 2 amps per group and a surge current capacity of 4.78 amps for 10 milliseconds. It has a maximum on and off response time of 2 milliseconds, a maximum output voltage drop of 1 volt, and a leakage current of 1 milliamp in the off state. When all outputs are active, the module draws 110 milliamps from the backplane 5 VDC bus. Measuring 89.8mm x 63.5mm x 22mm and weighing 0.2 kg, it mounts directly on a PLC backplane and features front-panel LED indicators to show individual channel status. Designed for industrial automation, it is used in manufacturing, packaging, and logistics applications to control loads such as relays, solenoid valves, small motors, and indicator lights, converting PLC digital signals to control signals and expanding the PLC’s output capacity.
