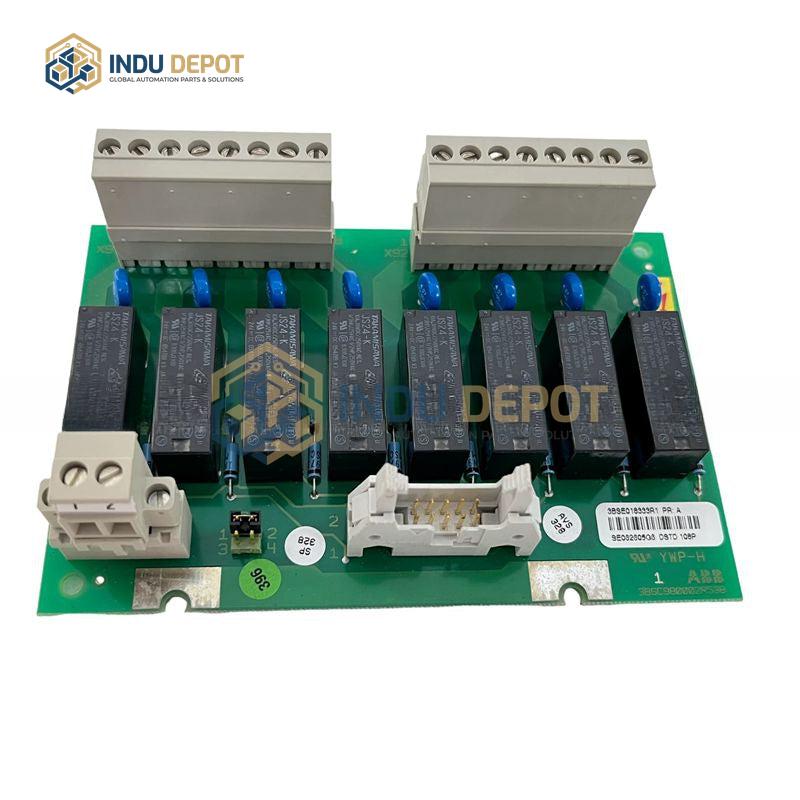

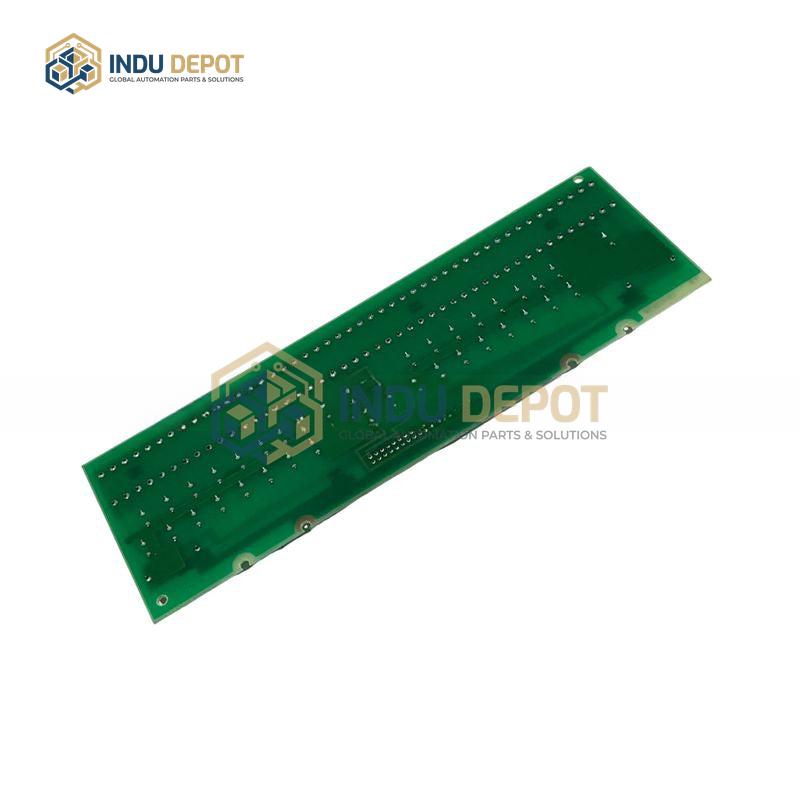

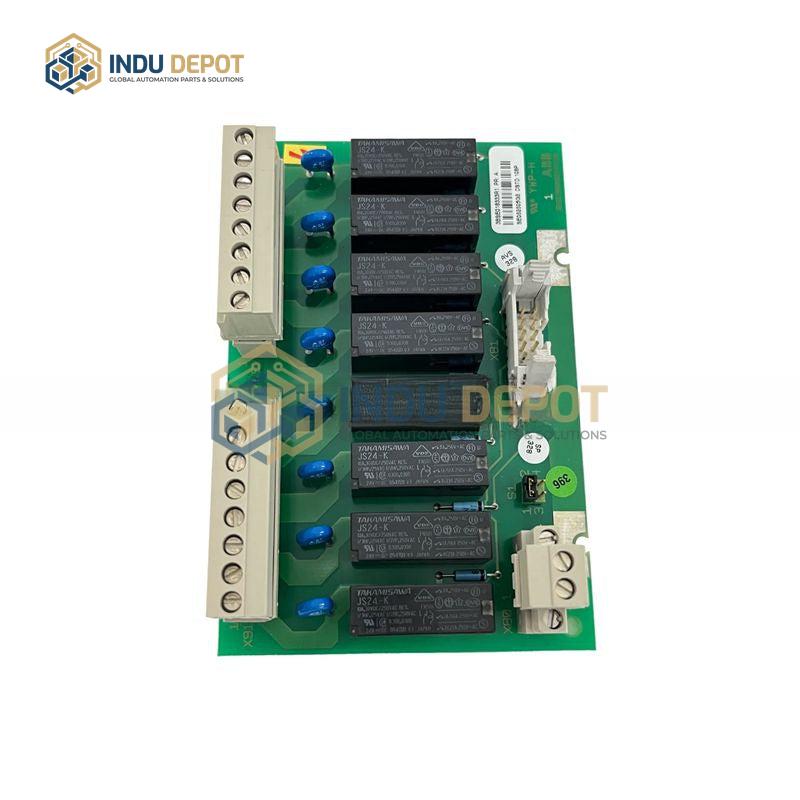

relay connection unit for industrial ABB DSTD 108P 3BSE018333R1
Description
ABB DSTD 108P 3BSE018333R1 is an 8-relay connection unit that is part of the ABB Advant Master process control system, designed to bridge field devices and control systems for industrial automation applications.
| Specification | Value |
|---|---|
| Model Number | DSTD 108P 3BSE018333R1 |
| Dimensions | 234mm (length) × 99mm (width) × 36mm (height) |
| Weight | 0.168kg |
| Operating Voltage | 24-250V AC/DC |
| Relay Configuration | 8 relays |
| Channel Count | 8 channels |
| Operating Temperature | -20 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
Key Features:
- Signal connection and conversion: Translates field digital signals to control system-compatible signals, and outputs control signals to field devices
- Direct device control: Uses 8 relay outputs to drive motors, valves, lights and other industrial equipment
- Distributed expansion support: Enables distributed I/O expansion via FBP bus adapter, supporting up to 7 input/output modules (max 4 analog modules)
- Industrial-grade reliability: Robust design with strong anti-interference capabilities for continuous operation
- Modular structure: Facilitates quick fault diagnosis and component replacement for reduced downtime
- Flexible configuration: 8-channel design meets small to medium-scale control requirements
Applications:
- Industrial automation production line control and process monitoring
- Energy management in power, petrochemical and related industries
- Infrastructure systems such as traffic signal control and building automation
- PLC/DCS system integration and I/O expansion
