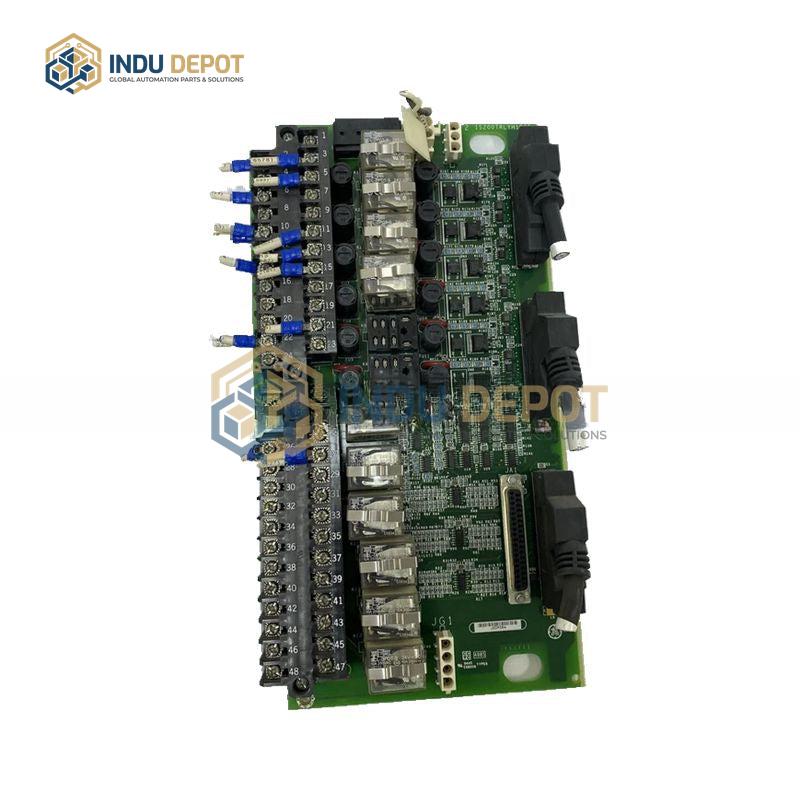

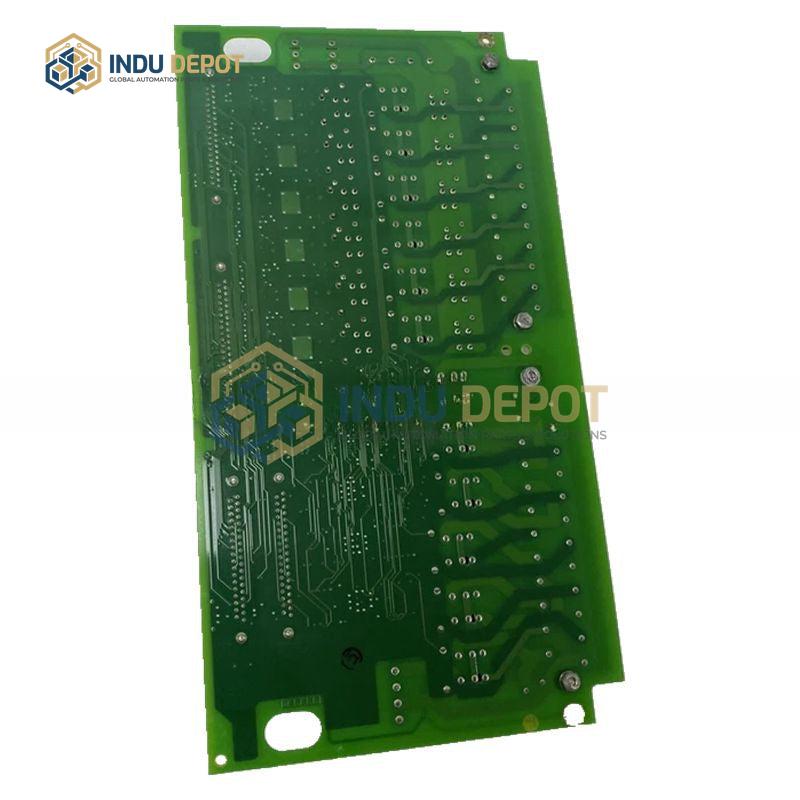

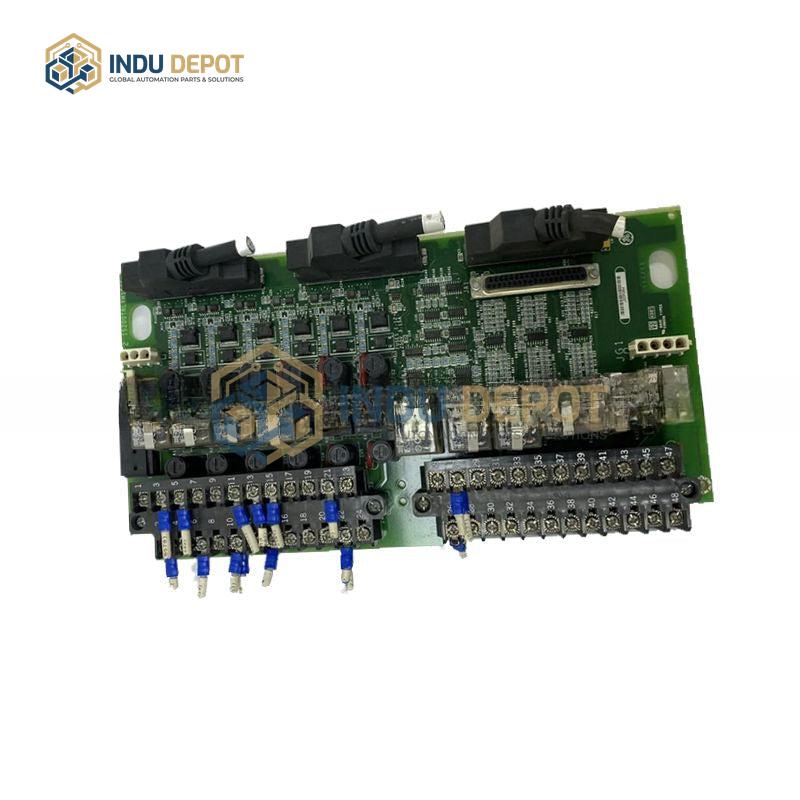

Relay Output Terminal Board IS200TRLYH1BGF GE
Description
IS200TRLYH1BGF GE Relay Output Terminal Board is a terminal relay card manufactured by GE, part of the IS200 series for the Mark VI control system. It provides signal conversion, isolation, and amplification functions, connects field devices like sensors and actuators, and supports I/O expansion for industrial control applications.
| Specification | Value |
|---|---|
| Product Type | Relay Output Terminal Board / Terminal Relay Card |
| Manufacturer | GE |
| Product Series | IS200 (Mark VI Control System) |
| Analog Input Channels | 8 |
| Digital I/O Channels | 32 |
| Isolation Voltage | 2500V |
| Operating Temperature | -40 to 85 degrees Celsius |
| Power Supply | 24V DC |
| Maximum Contact Current | 10A |
| Communication Protocol | RS-485 |
Key Features:
- Provides analog-to-digital and digital-to-analog signal conversion
- Offers 2500V electrical isolation to prevent field device faults from affecting the control system
- Includes signal amplification to boost signal strength for reliable transmission
- Industrial-grade design with wide temperature tolerance and high抗-interference capability
- Easy installation and maintenance with standard wiring terminals
- Integrated protection functions including reverse power protection, overvoltage protection, and overcurrent protection
Applications:
- Power plant turbine control and monitoring
- Oil and gas industry automation systems
- Chemical production process control
- Industrial automation for machinery and equipment control
- Generator excitation system protection and regulation
Related Models:
- IS200TRL
- IS200TRLYH1A
- IS200TRLYH2B
