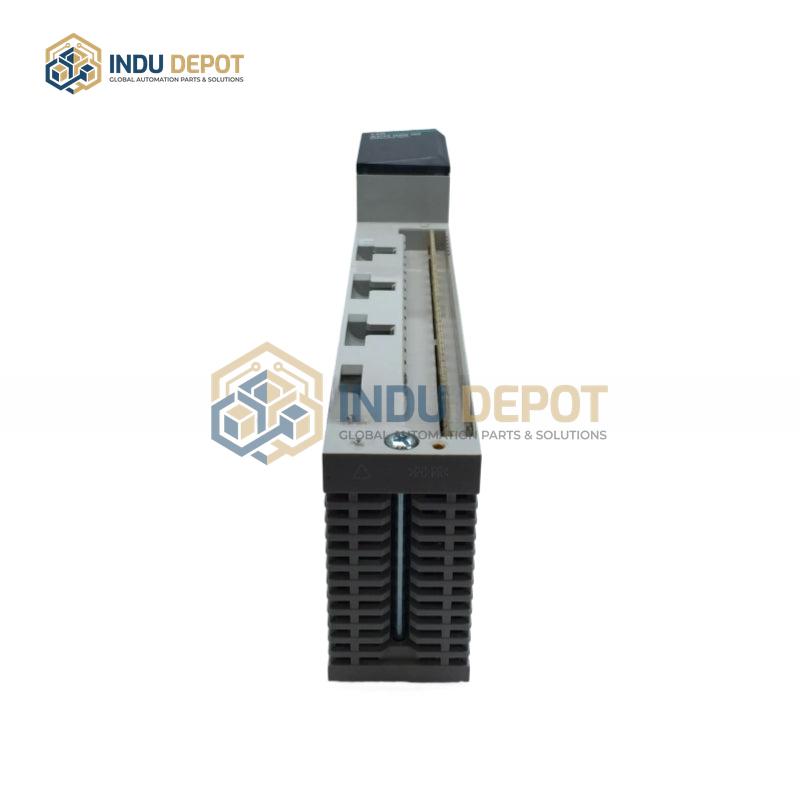

Schneider 140ACO02000 Analogue Output Module

Description

The Schneider 140ACO02000 is an analogue output module belonging to the Modicon Quantum series, designed to convert internal PLC digital signals into analogue signals for controlling external devices or systems. It features 4 independent analogue output channels with an output current range of 4-20mA, 12-bit resolution, and a full-scale accuracy error of ±0.20% at 25 degrees Celsius. Key performance specs include a 3 millisecond update time, a 900 microsecond settling time to reach ±0.1% of the final value, and channel-to-channel isolation of 500V AC (47-63Hz) or 750V DC for 1 minute. The module operates on 12-30V DC power with a maximum power consumption of 5.3W, and meets IEC 801-3 standards for electromagnetic interference resistance. It has an IP20 protection rating, dimensions of 190 x 30 x 65 millimeters, and a weight of 0.5 kg. Operating temperature ranges from 0 to 60 degrees Celsius, with a storage temperature range of -40 to 85 degrees Celsius, and it supports relative humidity of 5%-95% without condensation. Ideal for industrial automation, it is widely used in process control, manufacturing, and power systems to control equipment such as valves, motors, and heaters.
