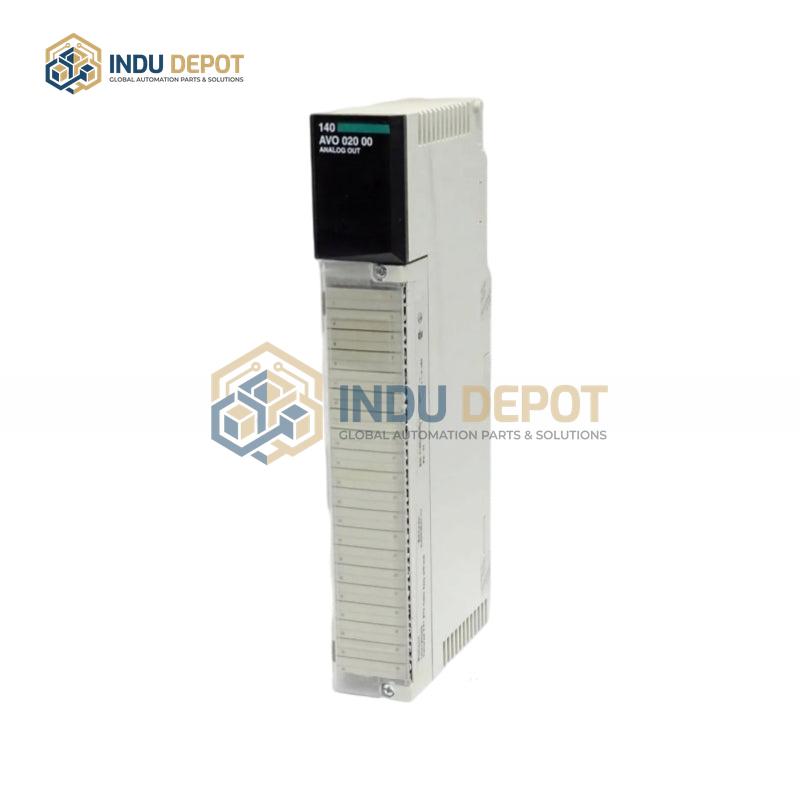

Schneider 140AVO02000 Analog Output Module

Description

The Schneider 140AVO02000 Analog Output Module is a core component designed for the Modicon Quantum automation platform, and is also compatible with Premium and M340 series PLCs. It features 4 differential analog output channels that convert digital control signals into precise analog signals for external device control and process variable regulation. The module supports multiple output ranges, including voltage signals of 0-5V, 0-10V, ±5V, ±10V, and current signals of 4 mA to 20 mA (current output requires an external resistor conversion).

Key performance specifications include 12-bit resolution, ±0.15% full scale accuracy, and a nonlinear error of ±1 LSB, ensuring high-precision signal output. It delivers fast conversion performance with an update time of 3 milliseconds and a setting time of 700 microseconds to reach ±0.1% of the final value, plus a temperature offset accuracy of ±0.004% full scale per degree Celsius for stable operation across varying temperatures.

With a compact size of 90 x 30 x 25 mm and a weight of 300 grams, it has an IP20 protection rating, operating temperature range of -25 degrees Celsius to +55 degrees Celsius, and storage temperature range of -40 degrees Celsius to +85 degrees Celsius, suitable for 5% to 95% non-condensing humidity environments. Ideal for industrial automation, energy management, process control, and building automation, it is widely used in power, metallurgy, chemical, and transportation industries, and meets international certification standards including CE, UL, CSA, and FM.
