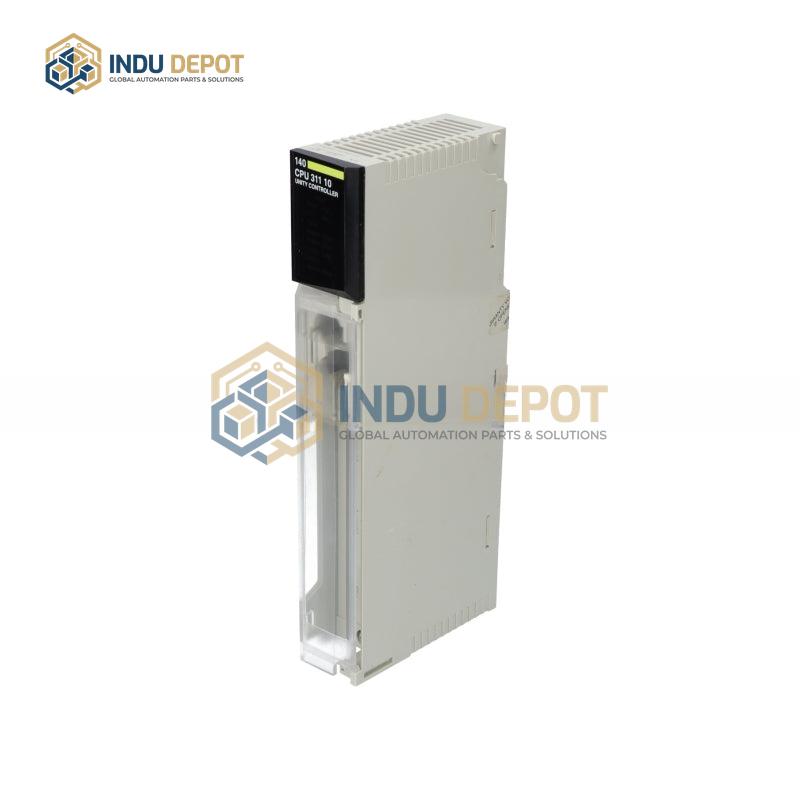

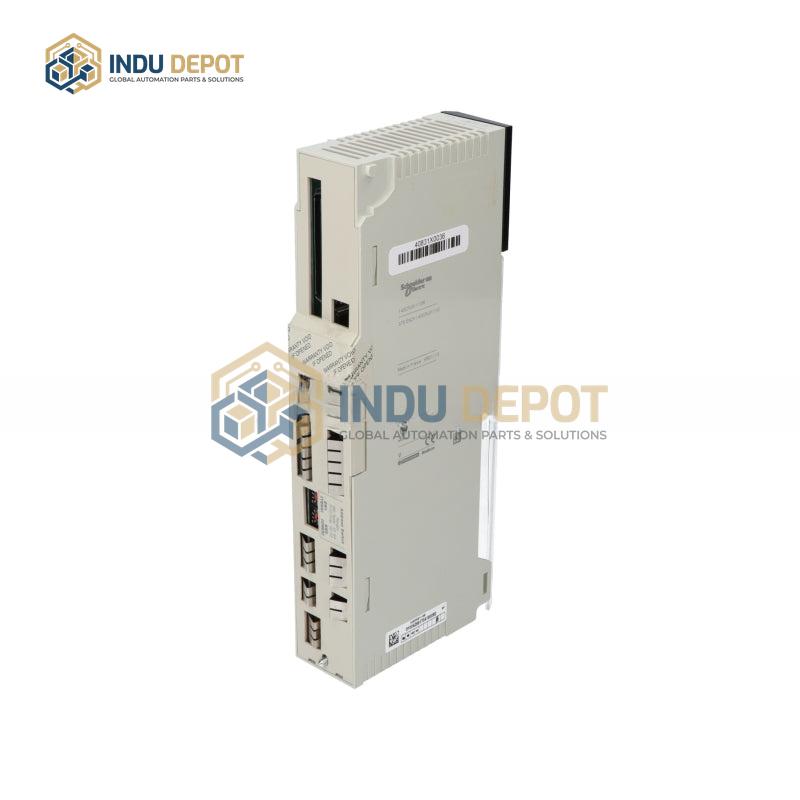

Schneider 140CPU31110 Modicon Unity Processor

Description

The Schneider 140CPU31110 Modicon Unity Processor is a high-performance control unit from the Modicon Quantum Series, designed for industrial automation systems. It features a 32-bit RISC processor with integrated arithmetic coprocessor running at a 66MHz clock speed, delivering fast data processing and instruction execution with an instruction time of 0.25 to 1.2 milliseconds and a scan cycle of 0.5 to 2.5 milliseconds for reliable system responsiveness. Equipped with 548KB internal RAM (expandable to 3072KB) and 256KB of additional storage, it supports mid-scale control programs and data storage needs.

The processor offers robust expansion capabilities, including a 10-slot configuration for connecting multiple extension modules, 2 local mounting brackets, support for up to 63 distributed I/O stations and 31 remote I/O stations. It provides extensive I/O capacity: 8000 discrete input/output points locally, up to 31744 discrete input/output points on distributed networks, and 1984 analog input/output points on distributed networks, plus 256 input/output points each for distributed, local, and remote setups.

Communication is enabled via 2 Ethernet ports, 2 Modbus Plus ports, and 2 Modbus RTU/RS232 ports, facilitating seamless data exchange with other automation devices. Operating within a temperature range of 0 degrees Celsius to 60 degrees Celsius, it measures 190 x 143 x 33 millimeters and weighs 800 grams, making it suitable for continuous or semi-continuous industrial process control applications.
